Inficon Quadrex 100 017-010-G1 Residual Gas Analyzer RGA 1-100 amu Leybold
Residual gas analyzer controller for vacuum system monitoring and leak detection. Measures gas composition across a 1 to 100 amu mass range.
Specifications & What's Included
- Mass Range: 1–100 amu
- Display Formats: 5 (Analog, Bar Graph, Table, Leak Check, Bar Subtract)
- Display Storage: Up to 4 displays
- Power: 120V or 220V, 50–60 Hz, 0.5 KVA
- Form Factor: Benchtop
- Software Version: 2.00
- Unit only; sensor/probe head not included
Applications
RGA controllers are used for residual gas analysis in vacuum systems, semiconductor manufacturing, and leak detection diagnostics. This benchtop unit connects to an RGA sensor head to provide real-time gas composition readings. Commonly deployed in research labs, industrial vacuum chambers, and maintenance operations where gas identification and system diagnostics are required.
Condition: Used

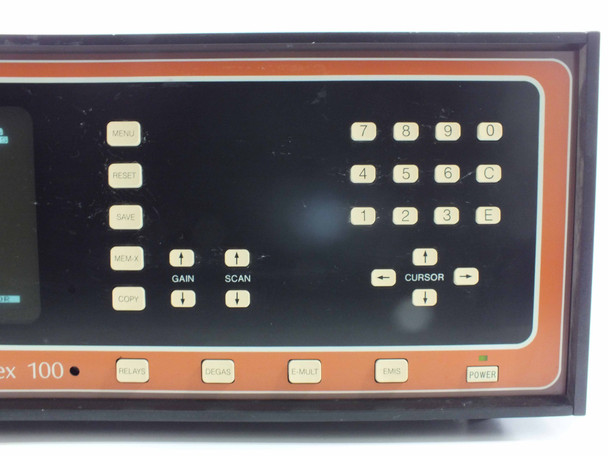

This Inficon Quadrex 100 Residual Gas Analyzer (017-010-G1) has been inspected and is in good physical condition, pulled from a working lab environment. The unit powers on and the CRT display lights up. The onboard menu responds to front panel inputs and all six display mode options are accessible via the keypad. The unit does display PROGRAM LOSS and CABLE ERROR messages on startup — consistent with no sensor head or calibration data being connected — and we were not able to test it further beyond that point. The chassis, front panel controls, and card cage appear intact with no obvious physical damage. Please view our photo set and contact us if you have any questions.
This Inficon Quadrex 100 Residual Gas Analyzer (017-010-G1) has been inspected and is in good physical condition, pulled from a working lab environment. The unit powers on and the CRT display lights up. The onboard menu responds to front panel inputs and all six display mode options are accessible via the keypad. The unit does display PROGRAM LOSS and CABLE ERROR messages on startup — consistent with no sensor head or calibration data being connected — and we were not able to test it further beyond that point. The chassis, front panel controls, and card cage appear intact with no obvious physical damage. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Inficon |
Model: |
Quadrex 100 |
MPN: |
017-010-G1 |
Secondary Model: |
017-010-G1 |
SKU: |
47139 |
Type: |
Residual Gas Analyzer (RGA) Controller |
Manufacturer: |
Leybold Inficon (Leybold-Heraeus) |
Mass Range: |
1 to 100 amu |
Display Formats: |
5 (Analog, Bar Graph, Table, Leak Check, Bar Subtract) |
Display Storage: |
Up to 4 displays |

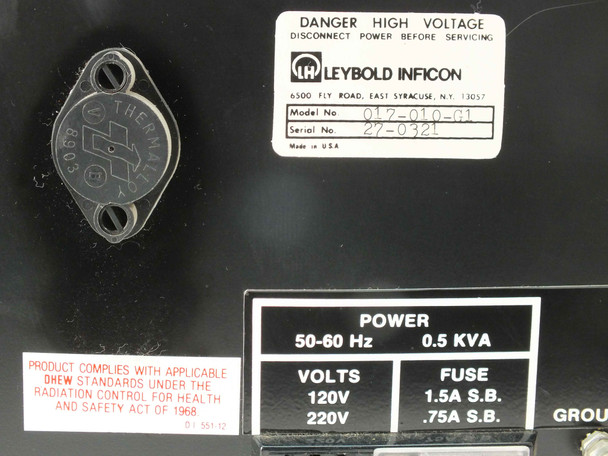

Power Requirements: |
120V or 220V, 50-60 Hz, 0.5 KVA |
Fuse Rating: |
120V: 1.5A S.B. / 220V: 0.75A S.B. |
Form Factor: |
Benchtop |

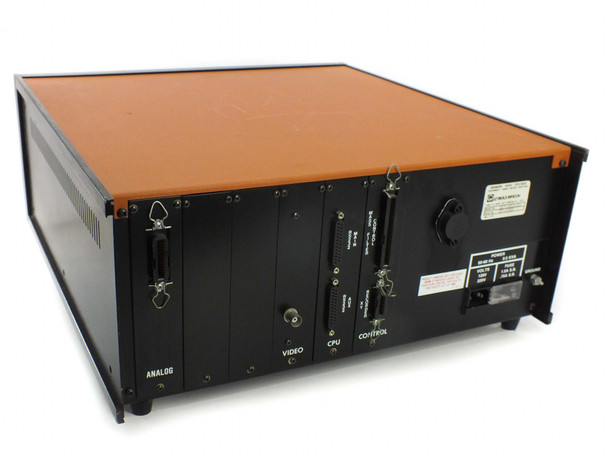

Internal Modules: |
Analog, Video, CPU, Control card slots (rear) |
Country/Region of Manufacture: |
United States |
Software Version: |
2.00 (visible on screen) |
Application / Use Case: |
Residual gas analysis, vacuum system leak detection |
Condition: |
Used – Powers On, Menu Responds; PROGRAM LOSS & CABLE ERROR displayed |
Seller Notes: |
Unit only; no sensor/probe head included. Sold as-inspected. |
Condition Notes: |
Inficon Quadrex 100 RGA (017-010-G1) powers on, CRT lights, front panel menu responds. Displays PROGRAM LOSS and CABLE ERROR — no further testing possible. Good physical condition. Sold as-inspected. |
