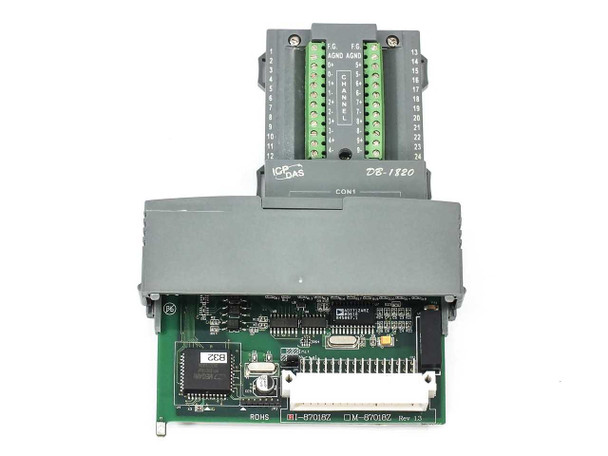

ICP DAS i-87018Z 10-Ch Thermocouple Input Module High OVP w/ DB-1820 Board
The ICP DAS i-87018Z is a 10-channel thermocouple input module designed for use in ICP DAS i-8000 series and i-87K series intelligent I/O systems. It accepts signals from a wide range of thermocouple types and converts them to digital values for industrial data acquisition and process monitoring applications. The module includes built-in high over-voltage protection to guard the input channels against transient voltage spikes common in industrial environments.
Specifications & What's Included
- Model: ICP DAS i-87018Z
- Type: Thermocouple Analog Input Module
- Number of Input Channels: 10
- Over-Voltage Protection: High over-voltage protection on all input channels
- Thermocouple Types: J, K, T, E, R, S, B, N (per i-87018Z specification)
- Interface: i-8000 / i-87K backplane bus slot
- PCB Revision: Rev 1.3 (marked on PCB silkscreen as I-87018Z / M-87018Z Rev 1.3)
- Power Indicator: PWR LED on module side panel
- Included: DB-1820 daughter board — 24-position screw-terminal connection board with labeled channel terminals (0+ through 9+/9–), F.G., and AGND connections
- DB-1820 interface: CON1 header connector to i-87018Z module
- Compliance: RoHS (marked on PCB)
- CE marked
- Country of Manufacture: Taiwan
Applications
The i-87018Z is used in distributed industrial data acquisition systems built around ICP DAS i-8000 series controllers and remote I/O backplanes. Thermocouple input modules like this are standard components in industrial temperature monitoring applications — including furnace and kiln control, plastic injection molding, HVAC equipment monitoring, food processing, and general process automation where precise multi-point temperature measurement is required. The i-87K bus format allows these modules to be installed in local or remote I/O racks and polled by a host controller via the backplane. The DB-1820 daughter board simplifies field wiring by providing clearly labeled screw terminals for all ten thermocouple pairs, making installation and maintenance straightforward in panel-mount or DIN-rail enclosure environments. ICP DAS (Industrial Computer Products Data Acquisition Systems), based in Taiwan, has been a leading supplier of modular I/O solutions for industrial automation since the 1990s, and the i-87K series modules remain widely used in legacy and current installations worldwide.
This ICP DAS i-87018Z 10-Channel Thermocouple Input Module has been inspected and appears to be in good used condition. The module and the included DB-1820 daughter board both show normal handling wear consistent with prior use in an industrial environment. No visible damage to the housing, PCB, or screw terminals. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
ICP DAS |
Model: |
i-87018Z |
MPN: |
i-87018Z |
Secondary Model: |
DB-1820 |
SKU: |
49506 |
Type: |
Thermocouple Input Module |
Number of Channels: |
10 |
Over-Voltage Protection: |
Yes – High Over-Voltage Protection |
Included Accessories: |
DB-1820 Daughter Board |
Form Factor: |
Module / Card |
Compatible With: |
ICP DAS i-8000 Series, i-87K Series Backplanes |
Interface: |
Backplane Bus (i-8000/i-87K slot) |
Connector Type: |
DB-1820 screw-terminal daughter board (24-pin) |
Thermocouple Types Supported: |
J, K, T, E, R, S, B, N (per i-87018Z spec) |
PCB Revision: |
Rev 1.3 |
Condition: |
Used – Inspected |
Country/Region of Manufacture: |
Taiwan |
Seller Notes: |
Includes DB-1820 daughter board with screw-terminal connections |
Condition Notes: |
ICP DAS i-87018Z 10-Ch Thermocouple Input Module inspected and in good used condition. Includes DB-1820 daughter board. Normal handling wear. No visible damage to housing, PCB, or terminals. |
