HyBond 614 616 Logic Control Card PCB Circuit Board Wire Bonder Replacement

HyBond 614 616 Logic Control Card PCB Circuit Board Wire Bonder Replacement

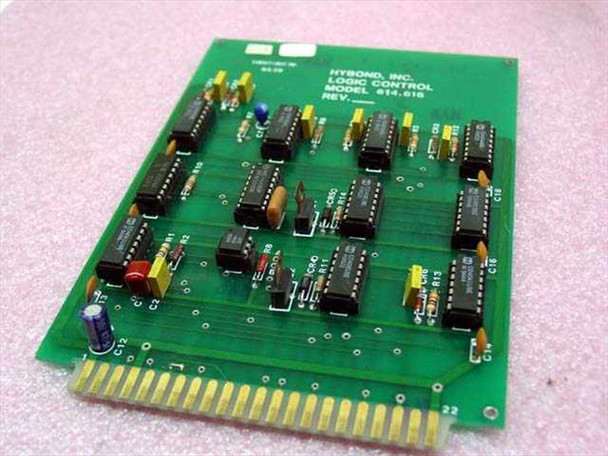

This is a HyBond Inc. Logic Control Card, Model 614/616, a PCB replacement part for HyBond wire bonding systems. The board handles logic control functions within the wire bonder and is a direct-fit replacement for HyBond Model 614 and Model 616 machines. It uses a gold-fingered edge connector interface typical of modular card-cage wire bonder architectures.

Specifications & What's Included

• Manufacturer: HyBond, Inc.
• Model: 614, 616 (Logic Control Card)
• Board Type: Logic Control PCB / Circuit Card
• Interface: Gold-finger edge connector
• Form Factor: Single card / module
• Populated with multiple DIP ICs, resistors, capacitors, and discrete components
• REV field blank on label (revision not marked on this unit)
• Compatible with: HyBond Model 614 and Model 616 Wire Bonders
• Logic control card only — no cables or accessories included

Applications

HyBond wire bonders are used in semiconductor packaging and microelectronics assembly to attach fine gold or aluminum wire between a die and its package leads or substrate. The logic control card manages sequencing and control signals within the bonder's motion and bonding cycle. HyBond, Inc. was a California-based manufacturer of wire bonding equipment widely used in the semiconductor and hybrid microelectronics industries from the 1970s through the 1990s. Replacement logic cards like this one are sought by shops maintaining legacy HyBond equipment that is no longer supported by the original manufacturer. These boards are commonly needed in university microelectronics labs, defense electronics repair facilities, and small-volume semiconductor assembly operations that continue to run older HyBond bonders.
