Description
Humphrey T062E1-3-10-35 General Purpose Solenoid Valve 24V 4.5W 1/4 NPT
This is a 3-way solenoid valve manufactured by Humphrey, a established industrial valve producer. The valve controls fluid or air flow in pneumatic and hydraulic systems using a 24V DC electrical coil.
Specifications & What's Included
- Voltage: 24V DC
- Power Consumption: 4.5 Watts
- Pressure Range: 0–125 PSI
- Port Size: 1/4 NPT (inlet, outlet, exhaust)
- Valve Type: 3-Way
- Duty Cycle: Continuous and Intermittent rated
- Coil Frequency: 24/50/60 Hz
- Made in USA
- Valve only with lead wires attached; no accessories included
Applications
General-purpose solenoid valves of this type are used in industrial automation, manufacturing equipment, pneumatic control systems, and process machinery. They redirect or vent pressure and flow in response to electrical signals. Common applications include assembly lines, material handling systems, and HVAC control equipment where simple on-off flow control is required.
Condition: Used

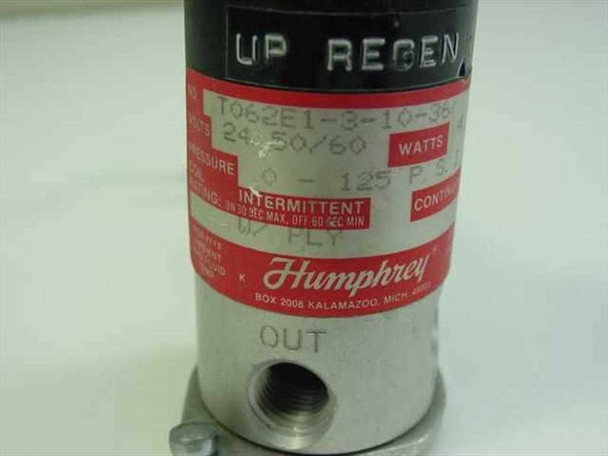

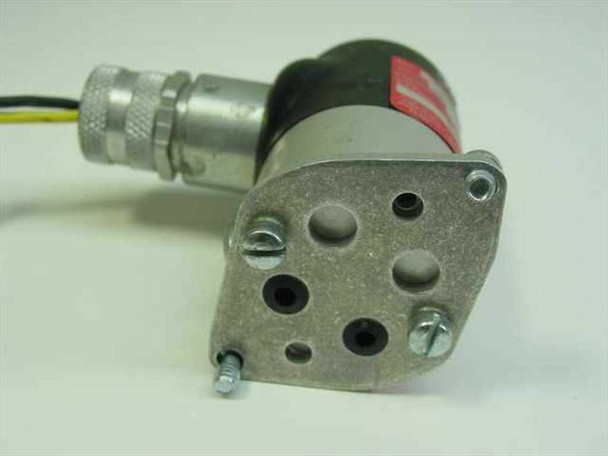

This Humphrey T062E1-3-10-35 General Purpose Solenoid Valve has been inspected and is in good used condition. The valve body, mounting base, and solenoid coil show normal wear consistent with prior industrial use. The red specification label is present and legible. Lead wires are intact and attached. No obvious damage to the ports or body is visible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Humphrey T062E1-3-10-35 General Purpose Solenoid Valve has been inspected and is in good used condition. The valve body, mounting base, and solenoid coil show normal wear consistent with prior industrial use. The red specification label is present and legible. Lead wires are intact and attached. No obvious damage to the ports or body is visible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Humphrey |
Model: |
T062E1-3-10-35 |
MPN: |
T062E1-3-10-35 |
Type: |
General Purpose Solenoid Valve |
SKU: |
32907 |
Voltage: |
24V DC |
Power Consumption: |
4.5 Watts |
Pressure Range: |
0-125 PSI |
Port Size: |
1/4 NPT |
Duty Cycle: |
Continuous / Intermittent (rated for both) |
Coil Frequency: |
24/50/60 Hz |
Valve Function: |
3-Way |
Exhaust Port: |

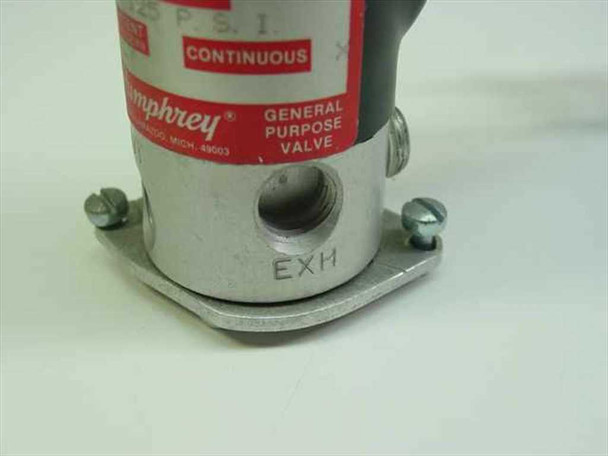

1/4 NPT (EXH labeled on body) |
Outlet Port: |
1/4 NPT (OUT labeled on body) |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Valve only; lead wires attached. No additional accessories included. |
Condition Notes: |
Humphrey T062E1-3-10-35 General Purpose Solenoid Valve. Inspected and in good used condition. Normal wear from prior use. Label present and legible. Lead wires intact. No visible damage to ports or body. |
