ASCO

ASCO 8262G20 Red-Hat II Solenoid Valve 1/4 NPT 125 PSI 24V Automatic Switch

(No reviews yet) Write a Review
SKU:
32899
MPN:
8262G20
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • ASCO 8262G20 Red-Hat II solenoid valve — full assembly view showing green solenoid coil housing, aluminum plunger tube, and brass valve body with flare fittings
  • ASCO 8262G20 solenoid valve — close-up of brass valve body end showing two SAE flare outlet fittings and port face

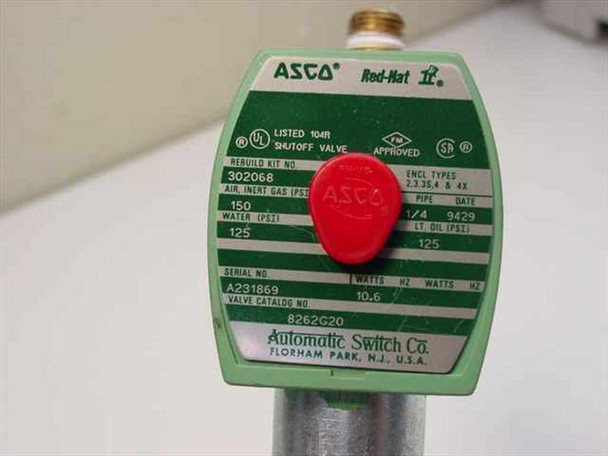

  • ASCO 8262G20 Red-Hat II solenoid valve — label plate showing model 8262G20, 24V coil, 125 PSI max, 1/4 pipe, UL and FM approvals, Automatic Switch Co. Florham Park NJ
$55.00
Was: $100.00
Current Stock: 1

Sold Out

Description

ASCO 8262G20 Red-Hat II Solenoid Valve 1/4 NPT 125 PSI 24V Automatic Switch

Two-way shutoff solenoid valve manufactured by Automatic Switch Co. (ASCO). Brass body with 1/4 NPT inlet and outlet ports. Rated for 125 PSI with light oil and 150 PSI with water.

Specifications & What's Included

  • Model: 8262G20 (Red-Hat II series)
  • Voltage: 24V DC
  • Power consumption: 10.6 W
  • Port size: 1/4 in NPT with flare fittings (brass, SAE)
  • Media: Air, inert gas, water, light oil
  • Certifications: UL Listed 104R, FM Approved
  • Valve only; no accessories included

Applications

Red-Hat II solenoid valves are standard shutoff components in industrial pneumatic and fluid systems, telecom equipment, HVAC controls, and process automation. This 1/4 NPT configuration is common in medium-flow applications requiring on-off control of compressed air, inert gases, or non-corrosive liquids. The 24V coil makes it suitable for control circuits powered by standard industrial DC supplies.

Condition: Used
This ASCO 8262G20 Red-Hat II solenoid valve has been inspected and is in good used condition. It was pulled from a working environment where it was in active service. The brass valve body and flare fittings show normal surface patina and minor handling marks consistent with prior use. The green solenoid coil housing has some scuffing and minor paint chips around the edges. Lead wires are intact and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ASCO
Model:
8262G20
MPN:
8262G20
Type:
Solenoid Valve
Series:
Red-Hat II
Manufacturer Full Name:
Automatic Switch Co. (ASCO)
SKU:
32899
Seller Notes:
Valve only; no additional accessories included.
Country/Region of Manufacture:
United States
Valve Catalog No.:
8262G20
Rebuild Kit No.:
302068
Pipe Size:
1/4 in NPT
Port Connection Type:
1/4 NPT Inlet and Outlet
Fitting Type:
Flare fittings (brass, SAE flare)
Max Pressure (Water):
150 PSI
Max Pressure (Light Oil):
125 PSI
Media:
Air, Inert Gas, Water, Light Oil
Voltage:
24V
Power (Watts):
10.6 W
Valve Function:
Shutoff (2-way)
Body Material:
Brass
Enclosure Types:
1, 2, 3S, 4 and 4X
Certifications:
UL Listed 104R, FM Approved, SR
UL Listing:
UL Listed 104R Shutoff Valve
Serial Number (Internal):
A231869
Condition Notes:
ASCO 8262G20 Red-Hat II solenoid valve. Used, inspected, in good condition. Pulled from a working environment where it was in active service. Brass body shows normal patina; coil housing has minor scuffing. Lead wires intact.
View AllClose

Related Products

Related Products

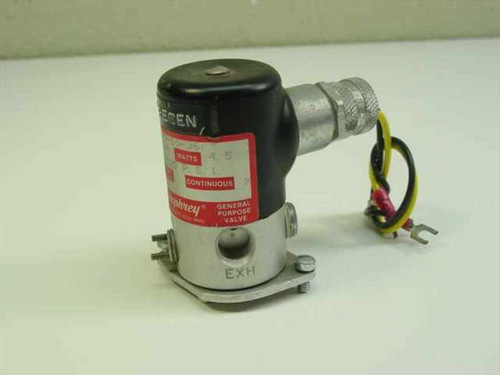

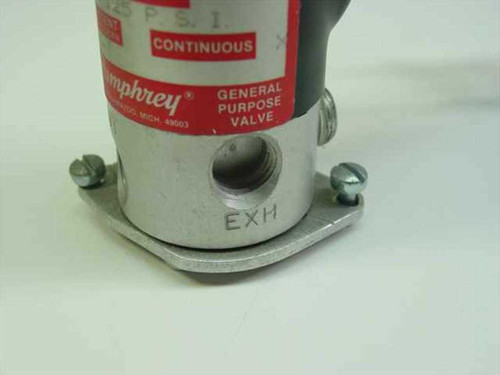

Humphrey T062E1-3-10-35 General Purpose Solenoid Valve – front and side view showing red label, black solenoid coil, and EXH port on base Humphrey solenoid valve base closeup showing EXH port opening and mounting plate with screws
