HP Format 1C SPDT Latching Coaxial Switch 12V SMA N-Type DC-18 GHz Microwave

(No reviews yet) Write a Review
SKU:
31432
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

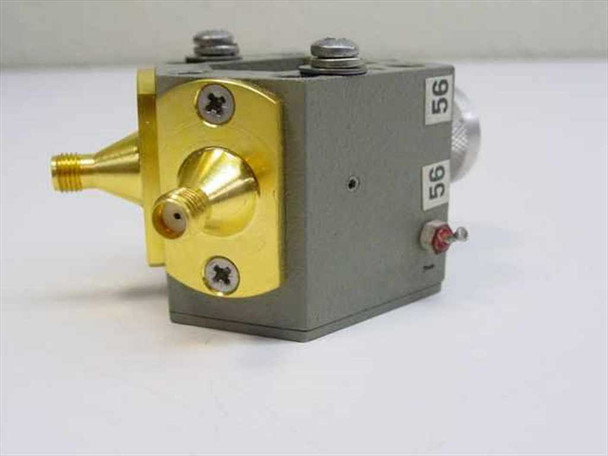

  • HP Format 1C SPDT Latching Coaxial Switch — front-left view showing gold brass SMA connector face with two SMA ports and gray aluminum body with '56' inventory labels
  • HP Format 1C SPDT Latching Coaxial Switch — left side view showing N-type male connector, red indicator pin, and gold SMA stub on opposite face
  • HP Format 1C SPDT Latching Coaxial Switch — straight-on view of N-type connector face showing center pin and two red position indicator pins on sides
  • HP Format 1C SPDT Latching Coaxial Switch — gold brass SMA face showing two SMA connectors, mounting screws, and red position indicator pin at lower left
  • HP Format 1C SPDT Latching Coaxial Switch — top closeup showing red and white cylindrical position indicator component and partial view of connectors
  • HP Format 1C SPDT Latching Coaxial Switch — side view showing '1', '56', '56' white inventory labels, red indicator pin, and knurled N-type connector
$150.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

HP Format 1C SPDT Latching Coaxial Switch 12V SMA N-Type DC-18 GHz Microwave

This HP Format 1C is a single-pole double-throw (SPDT) latching coaxial switch designed for RF and microwave signal routing applications. Latching switches retain their switched state without continuous coil power, making them well suited for automated test systems and signal path configurations where power conservation matters. The switch uses 12V DC coils and is rated for operation from DC to approximately 18 GHz, covering the full microwave band through Ku-band.

Specifications & What's Included

  • Configuration: SPDT (Single Pole Double Throw)
  • Switching type: Latching (holds position without continuous coil power)
  • Coil voltage: 12V DC
  • Frequency range: DC to approximately 18 GHz
  • Connector — common port: N-type
  • Connectors — switched ports: SMA (two ports on gold/brass face plate)
  • Body: compact gray aluminum housing
  • Position indicators: red indicator pins visible on body sides
  • Mounting: two threaded posts on top for panel or fixture mounting
  • Switch body only — no driver board, control cables, or mounting hardware included
