HP Format 1C SPDT Latching Coaxial Switch SMA-F to N-F RF Microwave 10-15V

(No reviews yet) Write a Review
SKU:
31430
MPN:
Format 1C SPDT
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout

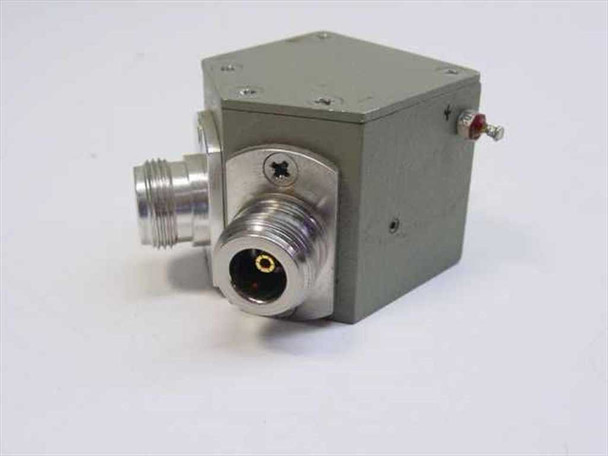

  • HP Format 1C SPDT latching coaxial switch – front/side view showing two N-type female ports on the face

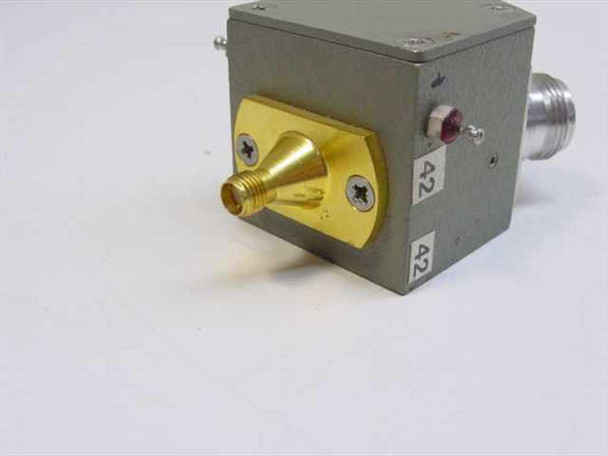

  • HP Format 1C SPDT latching coaxial switch – opposite side view showing gold SMA-F input port and label tags reading '42'

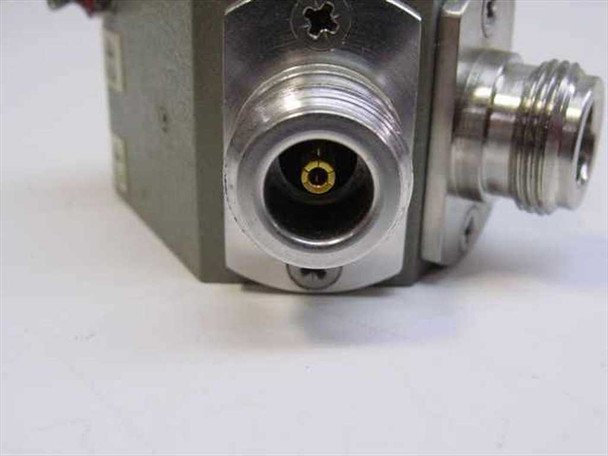

  • HP Format 1C coaxial switch – close-up of N-type female connector face with visible center pin

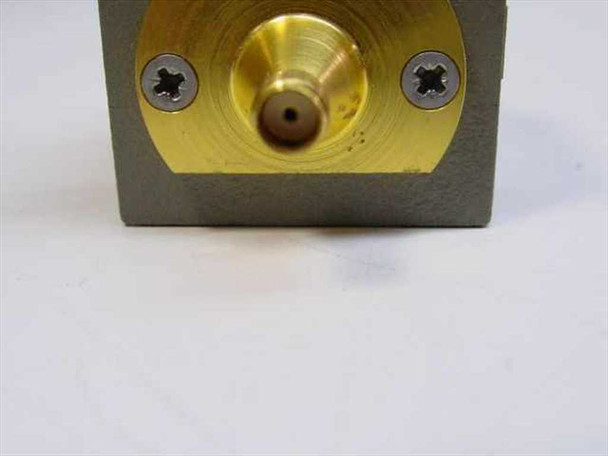

  • HP Format 1C coaxial switch – end-on view of SMA-F gold connector port set in machined aluminum housing
  • HP Format 1C coaxial switch – detail of red indicator button, coil terminals, and '42' identification labels on housing
$75.00
Was: $150.00
Current Stock: 3

Sold Out

Description

HP Format 1C SPDT Latching Coaxial Switch SMA-F to N-F RF Microwave 10-15V

SPDT latching coaxial switch for RF and microwave signal routing. Features SMA-F input and dual N-F outputs, with 10–15V DC coil operation. Housed in machined aluminum enclosure.

Specifications & What's Included

  • Brand: HP (Hewlett-Packard)
  • Model: Format 1C
  • Configuration: SPDT (Single Pole Double Throw) Latching
  • Input: SMA-F (Female)
  • Outputs: 2x N-F (Female)
  • Coil Voltage: 10–15V DC
  • Housing: Machined Aluminum
  • Cables and accessories: Not included

Applications

SPDT latching coaxial switches are used in RF test systems, telecommunications equipment, and microwave instrumentation for signal path selection. Latching operation reduces power consumption in applications requiring sustained switching states. These switches appear in bench-top measurement setups, automated RF test racks, and signal routing systems where coaxial SMA and N-series connectors are standard. The Format 1C was used in professional RF environments for controlled signal distribution and measurement configuration.

Condition: Used
This HP Format 1C SPDT Latching Coaxial Switch has been inspected and is in good used condition. It was pulled from a working RF environment where it was actively in use and functional. The machined aluminum housing shows light surface wear consistent with bench or rack service. The SMA-F and N-F connectors appear clean and undamaged. The red indicator button and coil terminals are intact and show no visible damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
HP (Hewlett-Packard)
Model:
Format 1C
MPN:
Format 1C
Type:
SPDT Latching Coaxial Switch
SKU:
31430
Switch Configuration:
SPDT (Single Pole Double Throw)
Switching Type:
Latching
Input Connector:
SMA-F (Female)
Output Connectors:
2x N-F (Female)
Coil Voltage:
10–15V DC
Application:
RF / Microwave Signal Routing
Form Factor:
Benchtop / Standalone Module
Housing:
Machined Aluminum Enclosure
Condition:
Used – Pulled from Working Environment
Seller Notes:
Pulled from a working RF environment; no cables or accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
This HP Format 1C SPDT Latching Coaxial Switch is in good used condition. Pulled from a working RF environment where it was in use and functional. Connectors appear clean and undamaged. Normal light surface wear.
View AllClose

Related Products

Related Products

Channel Microwave Corporation ALS343-4 Coaxial Isolator – front label view showing model number, IN/OUT ports, and S/N 280 Channel Microwave ALS343-4 Coaxial Isolator – rear/side view showing SMA connectors, ferrite assembly, and green grounding wire
Add to Cart
Quick view

Channel Microwave Corporation ALS343-4 Coaxial Isolator SMA RF Microwave

Channel Microwave

$30.00
Was: $60.00
Channel Microwave Corporation ALS343-4 Coaxial Isolator SMA RF MicrowaveCoaxial isolator designed for RF and microwave signal isolation applications. The ALS343-4 provides single-direction signal...
22317
SKU:
22317
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Brand:
Channel Microwave Corporation
Model:
ALS343-4
MPN:
ALS343-4
Type:
Coaxial Isolator
SKU:
22317
Connector Type:
SMA
Form Factor:
Drop-In / Inline
Application:
RF and Microwave Signal Isolation
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only, no accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
Channel Microwave ALS343-4 Coaxial Isolator. Inspected and in good used condition. Housing intact, SMA connectors undamaged. Light surface wear; minor handwritten markings on top of housing.
Triangle Microwave CO-361 Directional Coupler — angled front-left view showing CPL port on top, IN and OUT SMA ports on body Triangle Microwave CO-361 Directional Coupler — angled rear-right view showing SMA connectors and teal aluminum housing
Add to Cart
Quick view

Triangle Microwave CO-361 Directional Coupler SMA RF Microwave Coaxial Component

Triangle Microwave

$35.00
Was: $70.00
Triangle Microwave CO-361 Directional Coupler SMA RF Microwave Coaxial ComponentThe Triangle Microwave CO-361 is a passive coaxial directional coupler in a compact, teal-anodized aluminum housing. It...
33405
SKU:
33405
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Brand:
Triangle Microwave
Model:
CO-361
MPN:
CO-361
Type:
Directional Coupler
SKU:
33405
Connector Type:
SMA (female)
Number of Ports:
3 — IN, OUT, CPL
Housing Material:
Aluminum alloy
Housing Color:
Teal / Blue-Green
Form Factor:
Benchtop / In-line module
Application:
RF signal sampling, power monitoring, test setups
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; no cables or accessories included.
Condition:
Used – Inspected and in Good Condition
Condition Notes:
Triangle Microwave CO-361 Directional Coupler — inspected, good used condition. Housing shows normal shelf wear; SMA ports (IN, OUT, CPL) are intact with good threads. No damage to body.

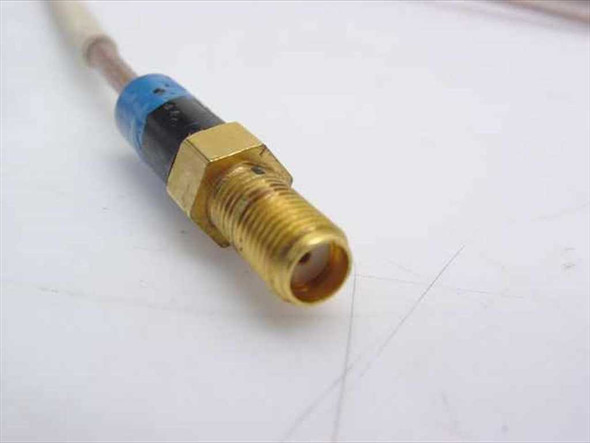

Times Microwave SMA-Male to SMA-Female coaxial RF cable approximately 8 feet long with color-banded connectors on white background Close-up of gold-plated SMA Female connector end with blue and black heat shrink strain relief on Times Microwave RF cable
