The K&L Microwave 6MP-28-F-0-4 is a single pole, 6-throw (SP6T) coaxial relay designed for RF and microwave signal switching applications. It routes one common RF input to any one of six output ports and features an integrated indicator switch — electrically insulated from the RF coaxial path — that shows which throw position has been energized, without confirming that the RF switch has physically transferred. K&L Microwave, based in Salisbury, Maryland, is a well-established U.S. manufacturer of precision microwave filters, multiplexers, and switching components.

Specifications & What's Included

• Model: K&L Microwave 6MP-28-F-0-4
• Configuration: Single Pole, 6 Throw (SP6T)
• Estimated Frequency Range: DC to 18 GHz

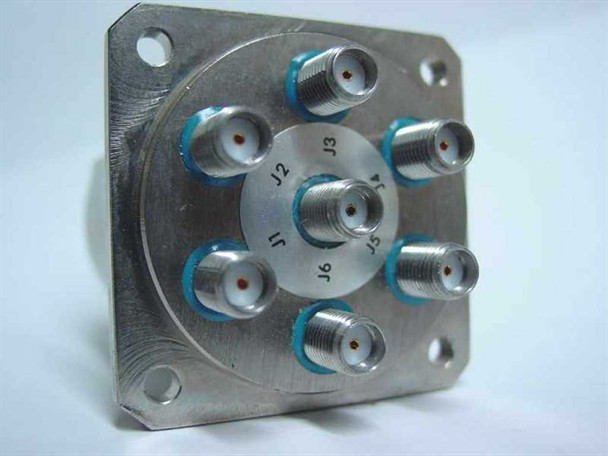

• Connector Type: SMA Female (J1–J6 throw ports + common port)
• Total Ports: 7 (1 common + 6 throw)
• Indicator Switch: Yes — insulated from RF path; indicates energized throw position
• Form Factor: Cylindrical stainless body with 4-hole flange mount base
• Country of Manufacture: United States (Salisbury, MD)

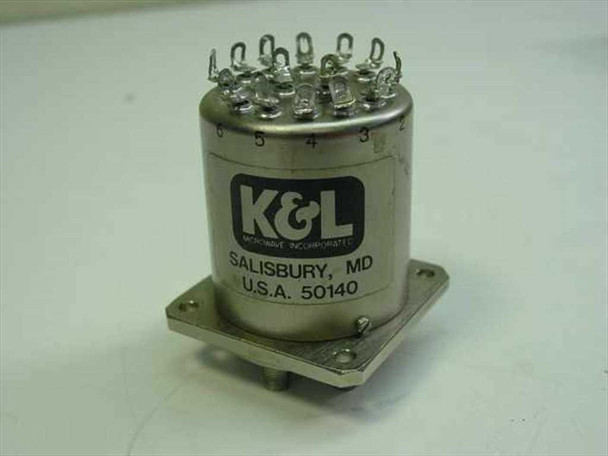

• Terminal connections visible on top of body (solder lug style for control/indicator wiring)

Applications
