Hitachi HDG-1212D Tablet Digitizer ComGraph DC 12V I/F Port DB25 1988 Rev A

(No reviews yet) Write a Review
SKU:
8677
MPN:
HDG1212D
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
15.00 LBS
Shipping:
Calculated at Checkout
  • Hitachi HDG-1212D ComGraph Tablet Digitizer – front/top view showing active drawing surface with stylus resting on top

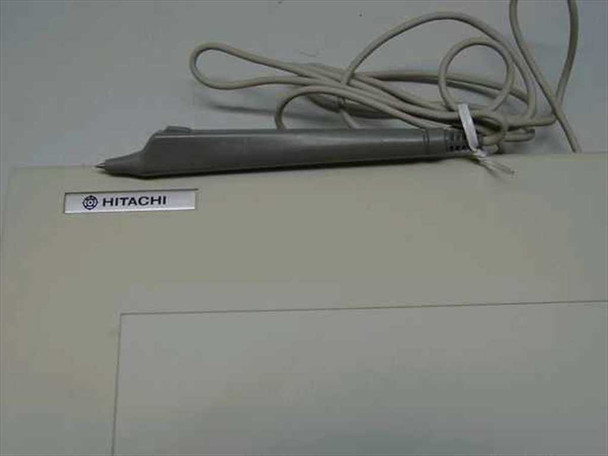

  • Hitachi HDG-1212D ComGraph Tablet Digitizer – close-up of Hitachi logo label on front edge with stylus
  • Hitachi HDG-1212D ComGraph Tablet Digitizer – rear rating label showing Model HDG-1212D, DC 12V 300mA, Date 1988, Rev A, FCC ID, Hitachi Digital Graphics USA
  • Hitachi HDG-1212D ComGraph Tablet Digitizer – rear connector panel close-up showing I/F Port (DB25), Pick-Up port, and DC-In port labels

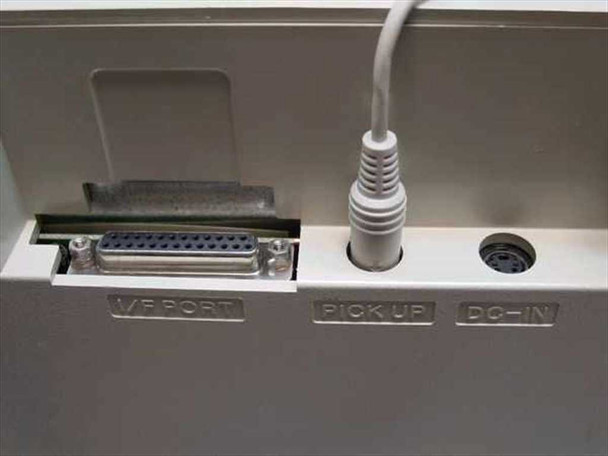

  • Hitachi HDG-1212D ComGraph Tablet Digitizer – rear connector panel close-up showing DB25 female I/F port connector, round Pick-Up DIN port, and DC-In DIN jack

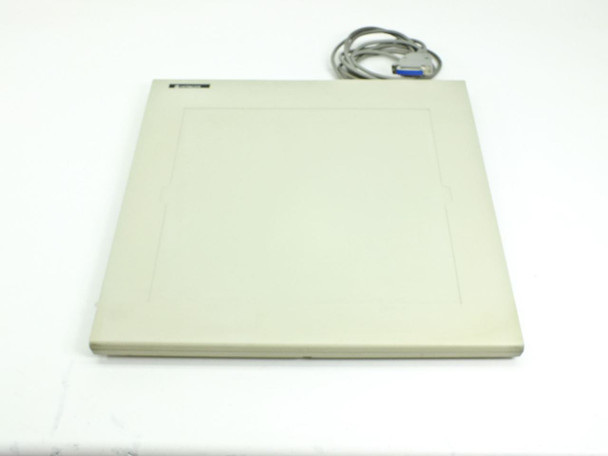

  • Hitachi HDG-1212D ComGraph Tablet Digitizer – side/front profile view showing full unit with attached DB25 interface cable
  • Hitachi HDG-1212D ComGraph Tablet Digitizer – top-down view from rear showing unit with DB25 cable attached
  • Hitachi HDG-1212D ComGraph Tablet Digitizer – second rating label showing AC 100-120V 50/60Hz 7VA, Date 1989, Rev A, FCC ID E013KU01011, Assembled in USA from Japanese components

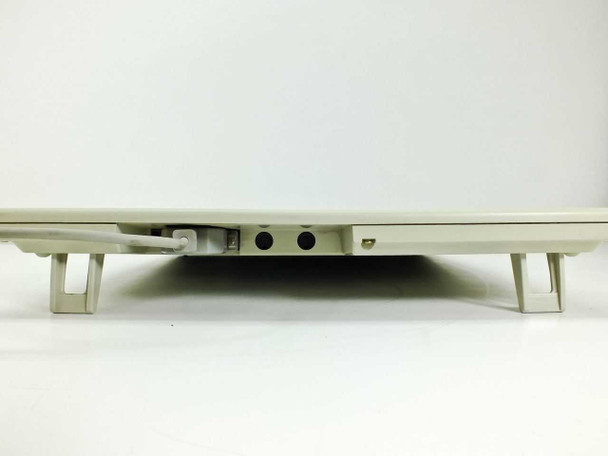

  • Hitachi HDG-1212D ComGraph Tablet Digitizer – side profile view showing two DIN-style ports on one edge and fold-out feet
  • Hitachi HDG-1212D ComGraph Tablet Digitizer – opposite side edge view showing cable exit and additional DIN ports with fold-out feet visible
  • Hitachi Hitachi Tabled Digitizer - No AC Adapter or Stylus HDG1212D
  • Hitachi Hitachi Tabled Digitizer - No AC Adapter or Stylus HDG1212D
  • Hitachi Hitachi Tabled Digitizer - No AC Adapter or Stylus HDG1212D
$35.00
Was: $70.00
Current Stock: 10

Sold Out

Description

Hitachi HDG-1212D Tablet Digitizer ComGraph DC 12V I/F Port DB25 1988 Rev A

Desktop tablet digitizer used for coordinate input and graphics capture on vintage CAD and technical workstations. Converts stylus position on the tablet surface to digital data via DB25 serial interface.

Specifications & What's Included

  • Model: HDG-1212D ComGraph Tablet Digitizer
  • Manufacturer: Hitachi Digital Graphics (USA), Inc.
  • Interface: DB25 female connector (I/F Port), DIN connectors (Pick-Up/DC-In)
  • Power: DC 12V, 300mA (external AC adapter required)
  • Hardware: Rev. A, manufactured 1988
  • Includes: Stylus and attached DB25 cable
  • Does not include: AC adapter

Applications

Used with vintage graphics workstations, CAD systems, and industrial design platforms from the 1980s-1990s that supported DB25 serial input. Typical applications included technical drawing, CAD coordinate input, and graphics tablet functions on systems running proprietary graphics software or early versions of CAD packages.

Condition: Used
This Hitachi HDG-1212D ComGraph Tablet Digitizer has been inspected and appears to be in good used condition. The tablet body shows normal aging typical of late-1980s equipment — light surface discoloration on the cream plastic housing, consistent with the era. The active drawing surface is intact and the DB25 interface cable is attached and present. A stylus is included with this unit. No AC adapter is included — this unit requires an external DC 12V, 300mA power supply, which is not provided. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
