HP

HP 88290-66511 ScanJet Interface ISA Card Rev A 25-Pin DB25 Scanner I/F Board

(No reviews yet) Write a Review
SKU:
18928
MPN:
88290-66511
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

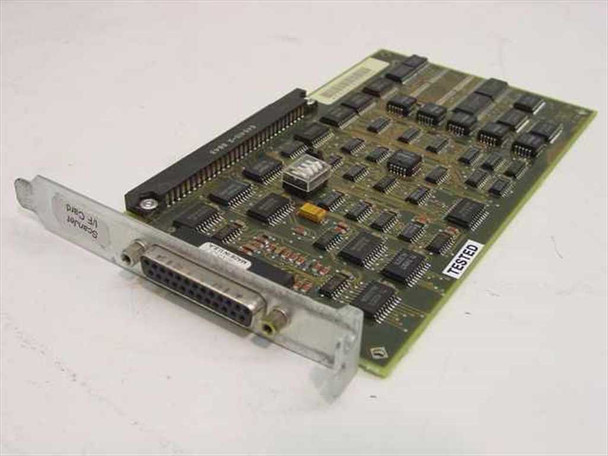

  • HP 88290-66511 ScanJet ISA Interface Card — angled top view showing PCB components and 25-pin DB25 bracket connector, with TESTED sticker visible

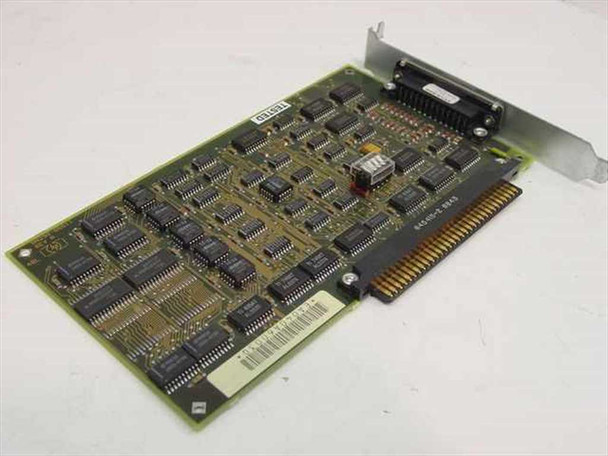

  • HP 88290-66511 ScanJet ISA Interface Card — reverse angled top view showing full PCB layout, ISA edge connector, and metal mounting bracket
  • HP 88290-66511 ScanJet ISA Interface Card — bracket edge view showing 25-pin DB25 female connector and partial label reading ScanJet I/F Card
  • HP 88290-66511 ScanJet ISA Interface Card — bottom PCB trace side view showing ISA edge connector and ScanJet I/F Card label on bracket

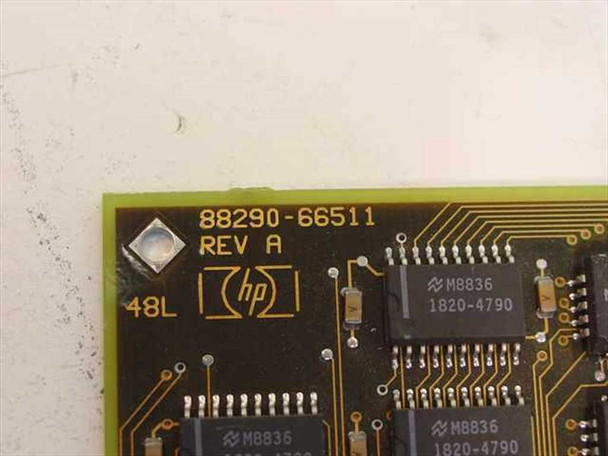

  • HP 88290-66511 PCB closeup showing silkscreened part number 88290-66511, REV A, HP logo, date code 48L, and M8836 / 1820-4790 IC markings
$25.00
Was: $50.00
Current Stock: 3

Sold Out

Description

HP 88290-66511 ScanJet Interface ISA Card Rev A 25-Pin DB25 Scanner I/F Board

This is an ISA expansion card designed to interface HP ScanJet series scanners with legacy computer systems. It connects via a 25-pin DB25 female connector and uses the M8836 controller IC to manage scanner communication.

Specifications & What's Included

  • Model: HP 88290-66511, Revision A
  • Bus Interface: ISA (Industry Standard Architecture)
  • Connector: 25-Pin DB25 Female
  • Controller IC: M8836 / HP 1820-4790
  • Form Factor: ISA Expansion Card
  • Manufactured in United States
  • Card only; no cables or accessories included

Applications

This interface card was used in 1990s-era desktop and tower computers running DOS, Windows 3.x, or early Windows 95 systems equipped with ISA slots. It enabled direct connection of HP ScanJet flatbed scanners to the host computer, serving document scanning and image capture workflows in business and office environments. The card functioned as a bridge between the scanner's parallel protocol and the ISA bus architecture of the era.

Condition: Used
This HP 88290-66511 ScanJet ISA Interface Card has been inspected and appears to be in good used condition. The PCB shows normal shelf wear consistent with prior installation and removal, with no visible damage to the board, traces, or components. The 25-pin DB25 connector on the bracket is intact and the ISA edge connector looks clean. A TESTED sticker is visible on the card in the photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
HP (Hewlett-Packard)
Model:
88290-66511
MPN:
88290-66511
Type:
ISA Scanner Interface Card
SKU:
18928
Revision:
Rev A
Bus Interface:
ISA (Industry Standard Architecture)
Connector Type:
25-Pin DB25 Female
Compatible With:
HP ScanJet Series Scanners
Form Factor:
ISA Expansion Card
Controller IC:
M8836 / HP 1820-4790
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; no cables or accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
HP 88290-66511 ScanJet ISA Interface Card. Inspected and in good used condition. Normal shelf wear; PCB, DB25 connector, and ISA edge connector all appear intact. TESTED sticker visible on card.
View AllClose

Related Products

Related Products

HP C2502-66500 ScanJet ISA SCSI Interface Card – top view showing PCB, main controller chip, and DB25 bracket connector HP C2502-66500 ScanJet ISA SCSI Card – bracket closeup showing 25-pin DB25 female connector and HP ScanJet Scanner label
Add to Cart
Quick view

HP C2502-66500 ScanJet ISA SCSI Interface Card 25-Pin DB25 Scanner Adapter Rev B

HP

$20.00
Was: $40.00
HP C2502-66500 ScanJet ISA SCSI Interface Card 25-Pin DB25 Scanner Adapter Rev B The HP C2502-66500 is an ISA bus SCSI interface card designed to connect HP ScanJet flatbed scanners to desktop PCs...
7687
SKU:
7687
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
HP (Hewlett-Packard)
Model:
C2502-66500
MPN:
C2502-66500
Type:
ISA SCSI Interface Card
SKU:
7687
Hardware Revision:
Rev B
Bus Interface:
ISA (Industry Standard Architecture)
Interface Type:
SCSI
Connector Type:
25-Pin DB25 Female
Compatible With:
HP ScanJet Flatbed Scanners
Controller Chipset:
NCR 53C400A SCSI Controller
Form Factor:
Half-Length ISA Card
Country/Region of Manufacture:
United States
FCC ID:
CNC2502
Condition:
Used – Inspected
Seller Notes:
Card only; no cables or accessories included.
Condition Notes:
This HP C2502-66500 ScanJet ISA SCSI Interface Card has been inspected and appears to be in good used condition. The PCB is clean with no visible damage, broken traces, or missing components.
HP C1753-265 ScanJet Interface ISA Card 25-Pin Connector
Add to Cart
Quick view

HP C1753-265 ScanJet Interface ISA Card 25-Pin Connector

HP

$18.90
Was: $40.00
HP C1753-265 ScanJet Interface ISA Card 25-Pin ConnectorThis is an ISA bus expansion card designed to interface HP ScanJet flatbed scanners to personal computers from the 1980s and early 1990s. The...
7686
SKU:
7686
Availability:
Usually ships within 1-2 business days.
Weight:
0.00 LBS
Brand:
Hewlett-Packard
Model:
C1753-265
Type:
ISA Expansion Card - Scanner Interface
Connector Type:
25-Pin Connector (D-Sub)
Bus Type:
ISA (Industry Standard Architecture)
Form Factor:
ISA Full-Length Card
Compatible With:
HP ScanJet Series scanners, ISA-bus computers
SKU:
7686
Country/Region of Manufacture:
USA
Condition:
Used – Pulled from Working Environment
Condition Notes:
HP C1753-265 ScanJet Interface ISA card in good used condition. Pulled from working environment. All connectors and contacts present and functional.

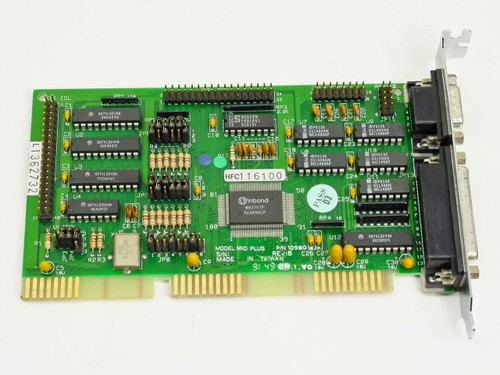

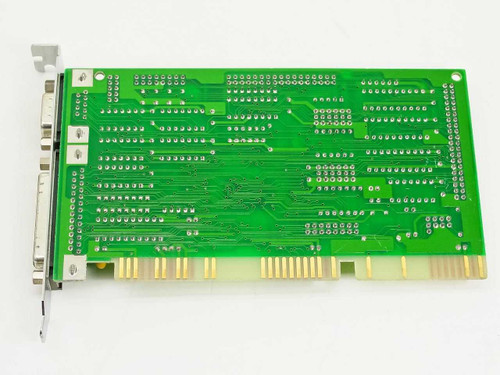

MIO Plus 10980 ISA I/O Interface Card – top-side view showing PCB layout, Winbond W83757F main chip, and dual DB25/DB9 bracket connectors MIO Plus 10980 ISA I/O card – rear/solder-side view showing PCB traces, ISA edge connector, and dual-port bracket
