GNP Computers PDSI Demarc Champ50 to RJ45 PCB 1-501523 Rev C Telco Breakout

(No reviews yet) Write a Review
SKU:
24665
MPN:
1-501523
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

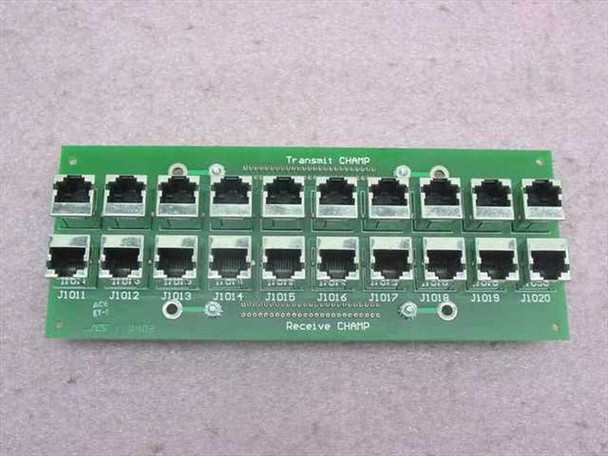

  • GNP Computers PDSI Demarc Champ50 RJ45 PCB 1-501523 — front side showing 20 RJ45 ports in two rows labeled Transmit CHAMP and Receive CHAMP

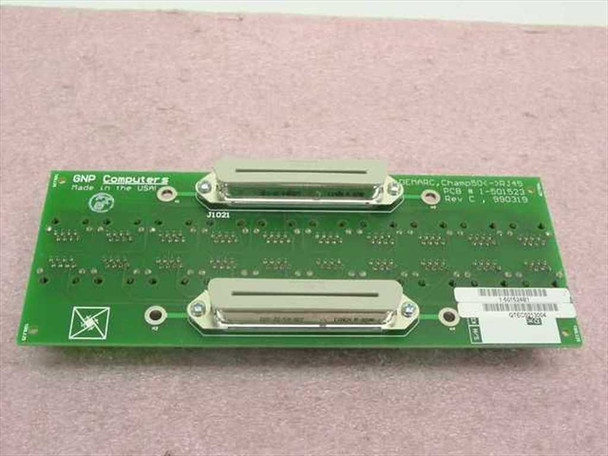

  • GNP Computers PDSI Demarc Champ50 RJ45 PCB 1-501523 Rev C — rear side showing two Champ50 connectors and GNP Computers Made in USA label

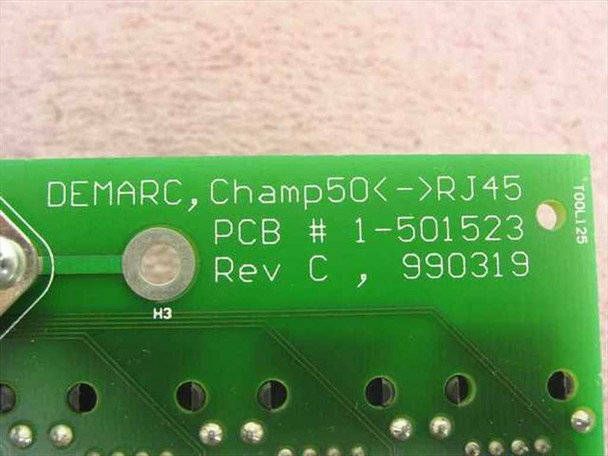

  • Close-up of PCB silkscreen label reading DEMARC Champ50 to RJ45, PCB 1-501523 Rev C dated 990319
$35.00
Was: $70.00
Current Stock: 21

Sold Out

Description

GNP Computers PDSI Demarc Champ50 to RJ45 PCB 1-501523 Rev C Telco Breakout

This is a demarc breakout board that converts Champ50 (SCSI-2 style) connectors to RJ45 ports. The PCB provides interface translation for PDSI DSL/T1 demarc systems, routing signals from dual rear Champ50 connectors to 20 front-facing RJ45 ports.

Specifications & What's Included

  • Brand: GNP Computers
  • Model: PDSI Demarc Champ50
  • Part Number: 1-501523 Rev C (Date Code: 990319)
  • 20x RJ45 ports (10 transmit, 10 receive)
  • Dual Champ50 rear connectors
  • Manufactured in the United States

Applications

This board type was used in telecommunications demarc systems to convert proprietary Champ50 interface signals to standard RJ45 cabling. It supported PDSI DSL and T1 installations where demarc equipment needed to connect to standard telecom jack panels or cross-connect systems. These adapters were deployed in carrier hotels, central offices, and enterprise telecom closets during the DSL/T1 era.

Condition: Used
This GNP Computers PDSI Demarc Champ50 to RJ45 breakout board (PCB 1-501523 Rev C) has been inspected and is in good condition. The board is clean with no visible damage to the PCB, traces, or connectors. All 20 RJ45 ports and both Champ50 connectors appear intact and undamaged. Normal light handling wear is present consistent with previous service use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
