GNP Computers 1-503153C1 cPCI RTM Wide SCSI I/O Rear Transition Module 6U
The GNP Computers 1-503153C1 is a 6U CompactPCI (cPCI) Rear Transition Module (RTM) providing Wide SCSI I/O connectivity for PDSi cPCI systems. It mounts at the rear of a 6U cPCI chassis and mates with the host processor or SCSI controller card via the P3 and P5 backplane connectors, routing Wide SCSI signals to external devices through front-accessible 68-pin HD connectors labeled SCSI-OUT and SCSI-IN.
Specifications & What's Included
- Manufacturer: GNP Computers (Made in the U.S.A.)
- Part Number / MPN: 1-503153C1
- PCB Assembly Number: PCB# 1-503153C1 Rev X1
- Kit / Secondary Part Number: 1-503737AT
- Type: Rear Transition Module (RTM) — Wide SCSI I/O
- Form Factor: 6U CompactPCI (cPCI)
- Backplane Interface: cPCI Standard Bus — P3 and P5 connectors
- SCSI Interface: Wide SCSI (68-pin HD)

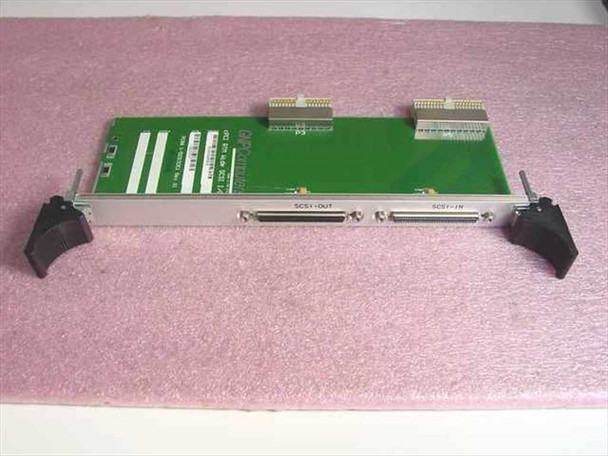

- Front-Panel Ports: SCSI-OUT and SCSI-IN (two 68-pin HD connectors)
- Rear Headers: Two ribbon-style backplane header connectors (P3/P5 cPCI)
- Country of Manufacture: United States
- Included: Board only — no cables
