Fairchild 980842-000 Rev 5 Front Multi-Rate Seq Decoder PCN86360 Satcom Card

(No reviews yet) Write a Review
SKU:
31787
MPN:
980842-000 Rev. 5
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout
  • Fairchild 980842-000 Rev 5 Front Multi-Rate Seq Decoder PCN86360 – angled top view showing full PCB with DIP ICs and edge connector

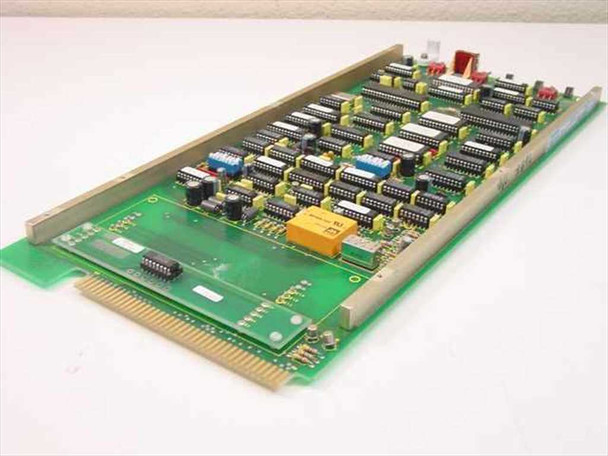

  • Fairchild 980842-000 Rev 5 Front Multi-Rate Seq Decoder card – reverse angled view showing opposite side of PCB and gold edge connector
  • Fairchild 980842-000 Rev 5 label closeup showing P/N 980842-000, REV 5, SERNO 1518, JOB NO. 8221, S.O. NO. 89159, Fairchild logo

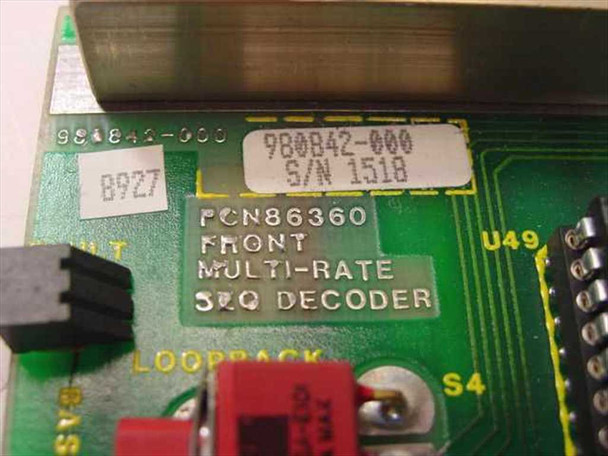

  • Fairchild 980842-000 PCN86360 Front Multi-Rate SEQ Decoder label and S/N 1518 sticker closeup with LOOPBACK switch area

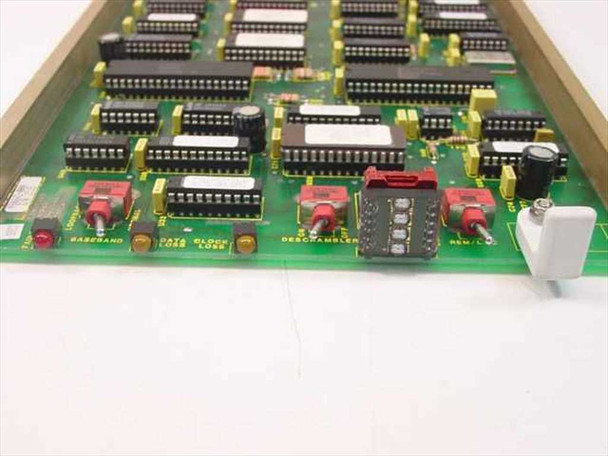

  • Fairchild 980842-000 PCB front panel area closeup showing BASEBAND, DATA BLOCK LOSS, DESCRAMBLER, and REMOTE LED/switch indicators
  • Fairchild 980842-000 board edge label showing 980644, DEMOD RS-422 INTFC, FSCM 86360, MADE IN USA markings
$100.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Fairchild 980842-000 Rev 5 Front Multi-Rate Seq Decoder PCN86360 Satcom Card

Front-end multi-rate sequence decoder card for satellite communications systems. Processes encoded signal data via RS-422 serial interface and routes decoded output to downstream processing modules.

Specifications & What's Included

  • Brand: Fairchild
  • Model: 980842-000, Revision 5
  • FSCM: 86360
  • Interface: RS-422
  • Form Factor: Card/Module
  • Application: Satellite Communications
  • Manufactured in United States
  • Card only

Applications

This decoder card type was used in satcom ground stations and satellite payload processing equipment to handle multi-rate signal decoding tasks. Commonly found in telecommunications infrastructure, military satcom systems, and commercial satellite receive chains where serial data processing was required. The RS-422 interface allows integration into larger modular card-cage systems typical of telecom and aerospace equipment from this era.

Condition: Used
This Fairchild 980842-000 Rev 5 Front Multi-Rate Sequence Decoder card has been inspected and appears to be in good condition. The PCB shows normal handling wear consistent with prior use. The edge connector contacts look clean and the component population is intact with no obvious damage visible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Fairchild
Model:
980842-000
MPN:
980842-000
Secondary Model:
PCN86360
FSCM:
86360
Revision:
Rev 5
Type:
Front Multi-Rate Sequence Decoder Card
Interface Type:
RS-422
Form Factor:
Card/Module
Application:
Satellite Communications (Satcom)
Country/Region of Manufacture:
United States
SKU:
31787
Condition:
Used – Inspected
Seller Notes:
Card only; inspected and appears in good condition
Condition Notes:
Fairchild 980842-000 Rev 5 Front Multi-Rate Seq Decoder card. Inspected and in good condition. Normal handling wear; edge connector clean, components intact. Please contact us with any questions.
