Fairchild

Fairchild SM220 Modulator Card 98CDP1033-X000 Rev 5 PCB Module 981033-000

(No reviews yet) Write a Review
SKU:
31791
MPN:
98CDP1033-X000 Rev 5
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout

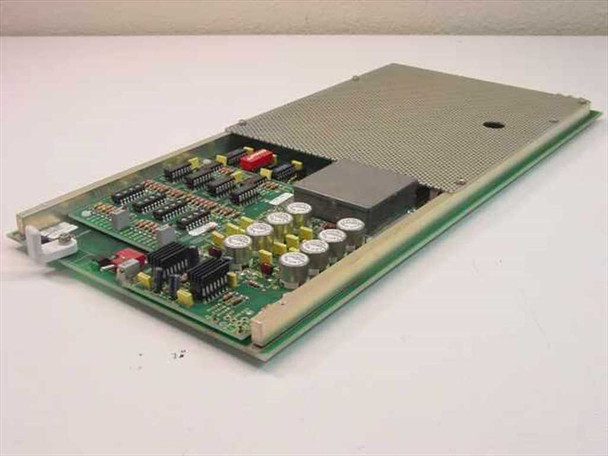

  • Fairchild SM220 Modulator PCB card 98CDP1033-X000 Rev 5 – angled top view showing PCB with RF shield cover partially open and component side visible

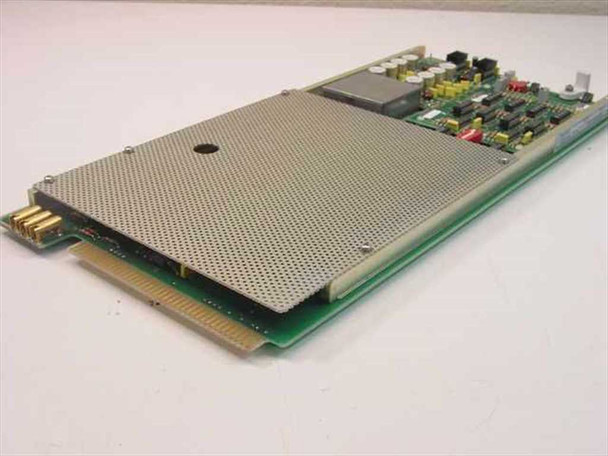

  • Fairchild SM220 98CDP1033-X000 modulator card – side view showing card edge connector and perforated RF shield cover
  • Fairchild SM220 modulator card label showing P/N 98CDP1033-X000 Rev 5, Ser No 472, Job No 9002, S.O. No 87350
  • Fairchild SM220 modulator PCB close-up showing board markings SM220 MODULATOR, 981033-000, S/N0472, SCM XC3, Made in USA, 94V-0

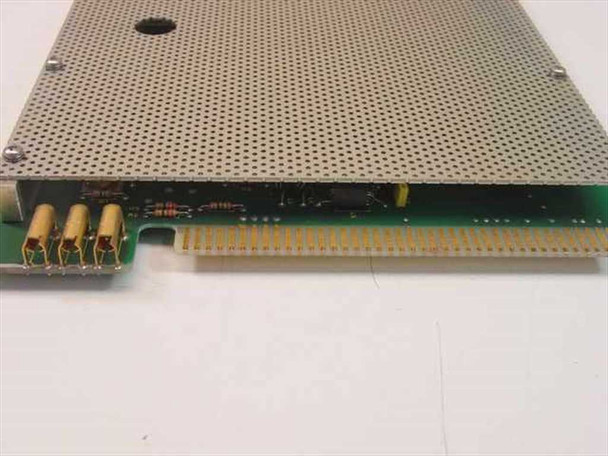

  • Fairchild SM220 98CDP1033-X000 modulator card – edge view showing gold card edge connector fingers and perforated shield
$65.00
Was: $125.00
Current Stock: 1

Sold Out

Description

Fairchild SM220 Modulator Card 98CDP1033-X000 Rev 5 PCB Module 981033-000

Fairchild SM220 modulator PCB card used in industrial and telecommunications equipment. This is a circuit card module, not a standalone unit.

Specifications & What's Included

  • Brand: Fairchild
  • Model: SM220 Modulator
  • MPN: 98CDP1033-X000
  • Hardware Revision: Rev 5
  • Form Factor: PCB Card Module
  • Manufactured: United States
  • Card only; no accessories included

Applications

SM220 modulator cards were deployed in Fairchild telecommunications and industrial control systems. These modules handled signal modulation functions within larger equipment platforms. Commonly found in legacy telecom infrastructure and industrial control systems from the 1980s–2000s era. Used as replacement components or spare parts for equipment maintenance and repair.

Condition: Used
This Fairchild SM220 Modulator card (P/N 98CDP1033-X000 Rev 5) has been inspected and appears to be in good used condition. The PCB and components look clean with no obvious damage, burnt areas, or missing parts visible. The RF shield cover and card edge connector show typical light handling wear consistent with prior installation. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Fairchild
Model:
SM220
MPN:
98CDP1033-X000
Secondary Model:
981033-000
Type:
Modulator PCB Card / Module
Hardware Revision:
Rev 5
SKU:
31791
Condition:
Used – Inspected and Pulled from Working Environment
Country/Region of Manufacture:
United States
Form Factor:
Card / PCB Module
Seller Notes:
Sold as shown; card only, no additional accessories included.
PCB Silkscreen ID:
SM220 MODULATOR, SCM XC3, 94V-0
Job Number:
9002
Sales Order Number:
87350
Condition Notes:
Fairchild SM220 Modulator 98CDP1033-X000 Rev 5 inspected and in good used condition. PCB and components clean, no visible damage. Light wear on shield and edge connector typical of prior use.
