Fairchild

Fairchild Data RS101 1:1 Redundancy Switch V.35 Rackmount Assy 005208-000 Rev A

(No reviews yet) Write a Review
SKU:
31348
MPN:
RS101
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
20.00 LBS
Shipping:
Calculated at Checkout
  • Fairchild Data RS101 1:1 Redundancy Switch – front panel view showing Fairchild logo and front panel controls
  • Fairchild Data RS101 – rear panel showing J1 Remote DB-37, J2 Prime Data, J7 Backup Data D-Sub connectors, J8 Data I/O, IEC AC inlet, and BNC RF ports
  • Fairchild Data Corporation RS101 1:1 Redundancy Switch label close-up on top of unit
  • Fairchild Data Corporation RS101 model label – Assy PL 005208-000 Rev A, V.35, Made in U.S.A., Scottsdale Arizona
  • Fairchild Data RS101 – bottom panel open showing internal PCB with switching circuitry and power section
  • Fairchild Data RS101 rear panel close-up – J1 Remote DB-37, J6 115VAC 60Hz IEC inlet, J2 Prime Data and J7 Backup Data D-Sub connectors
  • Fairchild Data RS101 rear panel – J8 Data I/O blue D-Sub connector close-up

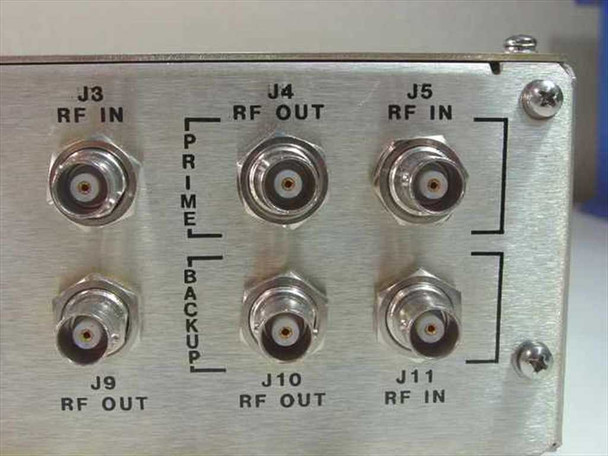

  • Fairchild Data RS101 rear panel – six BNC RF connectors: J3 RF In, J4 RF Out, J5 RF In (Prime) and J9 RF Out, J10 RF Out, J11 RF In (Backup)
$100.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Fairchild Data RS101 1:1 Redundancy Switch V.35 Rackmount Assy 005208-000 Rev A

1:1 redundancy switch for V.35 data communications. Provides automatic failover between prime and backup data circuits in telecom and industrial networking applications. 2U rackmount form factor.

Specifications & What's Included

  • Model: RS101 (MPN 005208-000, Rev A)
  • Type: 1:1 Redundancy Switch with Prime and Backup configuration
  • Connectors: DB-37 Remote (J1), D-Sub Prime Data (J2), D-Sub Backup Data (J7), Blue D-Sub Data I/O (J8)
  • RF Ports: 6x BNC (J3, J4, J5, J9, J10, J11)
  • Power: 115VAC, 60Hz, IEC C13 inlet
  • Form Factor: 2U Rackmount
  • Unit only; no cables or accessories included

Applications

RS101 switches were deployed in telecom and data center environments requiring redundant V.35 circuit protection. Common in WAN backup scenarios, telecommunications infrastructure, and mission-critical data transmission systems where automatic failover between primary and secondary circuits was required. Compatible with legacy telecom equipment and industrial control systems using V.35 interface standards.

Condition: Used
This Fairchild Data Corporation RS101 1:1 Redundancy Switch has been inspected and appears to be in good condition. It was pulled from a working environment where it was in active use. The chassis and front panel show normal wear consistent with field service. Rear panel connectors — including the DB-37 Remote port, D-Sub Prime and Backup Data connectors, Data I/O port, and BNC RF ports — appear intact with no visible damage. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Fairchild Data Corporation
Model:
RS101
MPN:
005208-000
Secondary Model:
RS101 1:1 Switch Unit
Hardware Revision:
Rev A
Type:
1:1 Redundancy Switch
Interface Type:
V.35
Redundancy Configuration:
1:1 (Prime and Backup)
Connector - Remote:
J1 – DB-37 (Remote)
Connector - Prime Data:
J2 – D-Sub (Prime Data)
Connector - Backup Data:
J7 – D-Sub (Backup Data)
Connector - Data I/O:
J8 – Blue D-Sub connector (Data I/O)
RF Ports:
6x BNC: J3 RF In, J4 RF Out, J5 RF In, J9 RF Out, J10 RF Out, J11 RF In
Power Requirements:
115VAC, 60Hz (J6)
Power Connector:
IEC C13 (standard 3-pin AC inlet)
Form Factor:
Rackmount, 2U
Country/Region of Manufacture:
United States
Manufacturer Location:
Scottsdale, Arizona
SKU:
31348
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no cables or accessories observed. Pulled from a working environment.
Condition Notes:
Fairchild Data RS101 1:1 Redundancy Switch V.35, Assy 005208-000 Rev A. Inspected and in good used condition; pulled from a working environment. Rear panel connectors and BNC RF ports appear intact. Normal wear.
View AllClose

Related Products

Related Products

Fairchild 980813-000 Rev 8 Multi-Rate Sequential Coder PCB card – angled top view showing component side with ICs, transformers, and DIP switches Fairchild 980813-000 Rev 8 Multi-Rate Sequential Coder PCB card – reverse angled view showing edge connector and underside component layout
Add to Cart
Quick view

Fairchild 980813-000 Rev 8 Multi-Rate Sequential Coder Encoder PCB Card

Fairchild

$75.00
Was: $150.00
Fairchild 980813-000 Rev 8 Multi-Rate Sequential Coder Encoder PCB CardMulti-rate sequential coder/encoder PCB card for baseband signal processing in telecommunications equipment. Supports multiple...
31789
SKU:
31789
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Brand:
Fairchild
Model:
980813-000
MPN:
980813-000
Secondary Model:
Rev 8
SKU:
31789
Type:
Multi-Rate Sequential Coder/Encoder PCB Card
Hardware Revision:
Rev 8
Form Factor:
PCB Card / Module
Features:
Baseband loopback, scrambler, C/REM switch
Condition:
Used – Inspected and in good condition
Seller Notes:
Board only; no chassis or additional accessories included.
Condition Notes:
Fairchild 980813-000 Rev 8 Multi-Rate Sequential Coder PCB card inspected and in good used condition. Board is clean, edge connector intact, no visible damage. Normal light handling wear.
LNR 506011300-2 Redundant Baseball Switch Control – front panel and top cover, 1U rackmount angled view LNR 506011300-2 Redundant Switch Control – rear panel showing Remote Control and Monitor D-Sub, Conv 1 DB-15, Conv 2 DB-9, and BNC connectors
Add to Cart
Quick view

LNR 506011300-2 Redundant Baseball Switch Control RF Satcom 1U Rackmount

LNR

$250.00
Was: $500.00
LNR 506011300-2 Redundant Baseball Switch Control RF Satcom 1U Rackmount1U rackmount redundant switching controller for RF satellite communications systems. Provides manual baseball-style...
49790
SKU:
49790
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Brand:
LNR Communications
Model:
506011300-2
MPN:
506011300-2
SKU:
49790
Type:
Redundant Baseball Switch Controller
Application:
RF Satellite Communications (Satcom) Redundancy Switching
Form Factor:
1U Rackmount
Rack Size:
19-inch
Dimensions:
22" x 19" x 2" (D x W x H)
Front Panel Controls:
SELECT (Normal/Cross), ALARMS (Unit 1/Unit 2), MODE switch
Switch Positions:
Normal, Cross (baseball-style waveguide/coax switch)
Alarm Indicators:
Unit 1 and Unit 2 LED alarm indicators
Mode:
Manual (MAN) mode switch on front panel
RF Connector Type:
BNC (Inputs: Unit 1, Unit 2; Outputs: Unit 1, Unit 2)
Number of RF Ports:
4 BNC (2 inputs, 2 outputs)
Rear Interfaces:
Remote Control and Monitor (D-Sub), Conv 1 (DB-15), Conv 2 (DB-9)
Remote Control Interface:
D-Sub multi-pin connector (Remote Control and Monitor)
Converter Interfaces:
Conv 1 (DB-15), Conv 2 (DB-9)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; pulled from working satcom system. No accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
LNR 506011300-2 Redundant Baseball Switch Control, inspected and in good used condition. Pulled from a working satcom environment. Shows light rack wear; front panel, switch, and connectors intact. Photos available.

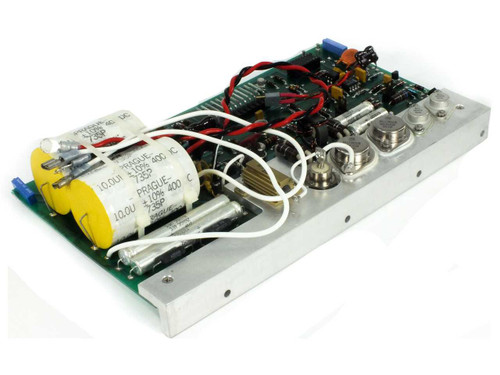

01-003859 Rev AC Switch Neg Assembly PCB board – angled top view showing power transistors, red wiring harness, and large yellow Sprague film capacitor 01-003859 Rev AC Switch Neg Assembly PCB board – opposite angled view showing two yellow Sprague 10uF 400V film capacitors and aluminum heatsink rail
