Description
Epelsa LC 5 Load Cell 1000 lb 450 kg 1Klb Capacity 3mV/V Shear Beam Sensor
Shear beam load cell for industrial weighing applications. Rated 1000 lb capacity with 3 mV/V output sensitivity and OIML Class III (M5) accuracy.
Specifications & What's Included
- Capacity: 1000 lb / 450 kg
- Safe Load Limit: 1200 lb
- Output Sensitivity: 3 mV/V
- Minimum Load: 0.05 lb
- Body Dimensions: 5.125 in x 1.25 in x 1.25 in
- Mounting Hole Diameter: 0.5 in
- Accuracy Class: M5 (OIML Class III)
- Includes attached cable
Applications
Shear beam load cells mount to platform scales, conveyor scales, and industrial weighing systems. This compact form factor fits in space-constrained installations. The LC 5 was commonly integrated into packaging lines, batching systems, and fixed-installation weighing platforms requiring reliable analog load measurement.
Condition: Used

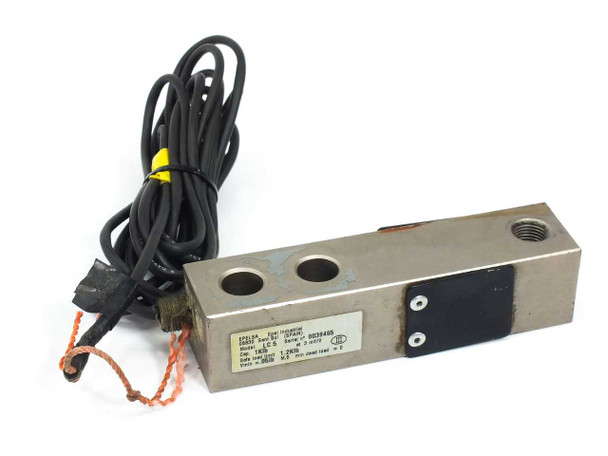

This Epelsa LC 5 shear beam load cell has been inspected and is in good used condition. It was pulled from a working environment where it was in regular use. The stainless steel body shows some surface oxidation and light corrosion near the cable gland end, as visible in the photos, with minor scuffing to the body finish consistent with service use. The rating label is intact and legible. The attached cable appears complete and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Epelsa LC 5 shear beam load cell has been inspected and is in good used condition. It was pulled from a working environment where it was in regular use. The stainless steel body shows some surface oxidation and light corrosion near the cable gland end, as visible in the photos, with minor scuffing to the body finish consistent with service use. The rating label is intact and legible. The attached cable appears complete and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Epelsa |
Model: |
LC 5 |
MPN: |
LC 5 |
Type: |
Shear Beam Load Cell |
SKU: |
48767 |
Capacity: |
1000 lb / 450 kg (1Klb) |
Safe Load Limit: |
1200 lb (1.2Klb) |
Output Sensitivity: |
3 mV/V |
Minimum Load (Vmin): |
0.05 lb |
Minimum Dead Load: |
0 |
Body Dimensions: |
5.125 in x 1.25 in x 1.25 in |
Plate Dimensions: |
1.5 in x 1.125 in |
Mounting Hole Diameter: |
0.5 in |
Accuracy Class: |
M5 (OIML Class III) |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes attached cable. Pulled from working environment. |
Country/Region of Manufacture: |
Spain |
Form Factor: |
Compact Block / Shear Beam |
Compatible With: |
Platform scales, conveyor scales, industrial weighing systems |
Condition Notes: |
Epelsa LC 5 shear beam load cell, inspected and in good used condition. Pulled from a working environment. Shows surface oxidation near cable gland and light body scuffing. Cable included. Please contact us with questions. |
