Emerson Islatrol IE-110 AC Power Filter 120VAC 10A DIN Rail Active Tracking SPD

Emerson Islatrol IE-110 AC Power Filter 120VAC 10A DIN Rail Active Tracking SPD

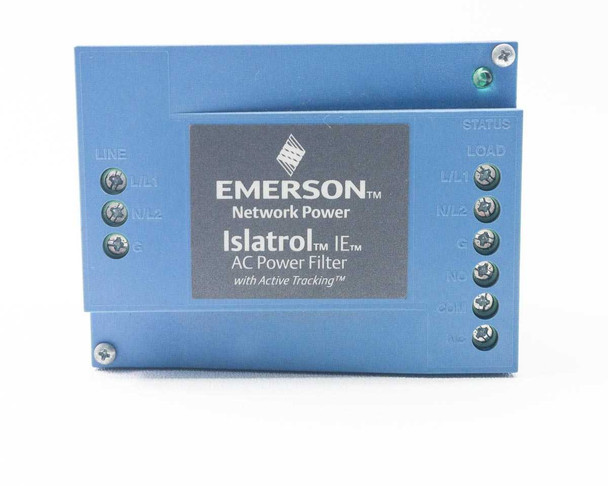

The Emerson Islatrol IE-110 is a single-phase AC power filter and surge protective device (SPD) designed to suppress high-frequency electrical noise and transient voltages on 120VAC power lines. Using Active Tracking technology, the IE-110 continuously references the AC waveform to filter common-mode and differential-mode disturbances across all three protection modes: Line-to-Neutral, Line-to-Ground, and Neutral-to-Ground.

Specifications & What's Included

• Model: IE-110 (Emerson Islatrol IE Series)
• Nominal Voltage: 120 VAC, Single Phase
• Current Rating: 10 Amperes
• Operating Frequency: 47–63 Hz
• Surge Protection: 45,000A total (15,000A per mode)
• SPD Classification: Type 4
• Voltage Protection Rating (VPR): 400 Vpk Line-to-Neutral; 600 Vpk Line-to-Ground; 500 Vpk Neutral-to-Ground
• MCOV: 150V (L-N, L-G, N-G)
• Short Circuit Current Rating (SCCR): 3 kA
• Response Time: Less than 0.5 nanoseconds
• Protection Modes: Line-to-Neutral, Line-to-Ground, Neutral-to-Ground
• Technology: Active Tracking
• LED Status Indicator with remote monitoring capability
• Mounting: DIN rail or flange
• Operating Temperature: -40°C to 45°C
• Certifications: UL 1283, UL 1449 3rd Edition, CE, RoHS
• Country of Manufacture: Mexico
• Includes: Filter unit only

Applications

The Islatrol IE series is used to protect sensitive electronic equipment in industrial automation environments from power line disturbances including switching transients, lightning surges, and conducted electromagnetic interference (EMI). Common deployment scenarios include protection of PLCs, HMIs, motion controllers, variable frequency drives (VFDs), and other industrial control equipment connected to 120VAC branch circuits. The DIN rail form factor makes the IE-110 a direct fit for control panel and enclosure installations where power conditioning is required at the load level. It is also used in telecommunications equipment rooms and distributed control system (DCS) panels where clean power is required for reliable operation of sensitive electronics.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
