Control Concepts Islatrol IC+107 Active Tracking Filter 120VAC 7.5A Normal Mode
The Control Concepts Islatrol IC+107 is an active tracking power line filter designed to suppress both normal-mode and common-mode electrical noise on single-phase 120VAC circuits. Unlike passive LC filters, the Islatrol's active tracking architecture dynamically adapts to line conditions, providing effective attenuation of high-frequency interference across a broad spectrum. The unit also incorporates transient voltage surge suppression (TVSS) rated at 330 Vpk across L-N, L-G, and N-G paths. It connects in-line via screw terminal blocks on the LINE and LOAD sides and is housed in a rugged, flanged steel enclosure suitable for panel or enclosure mounting.
Specifications & What's Included
- Model: IC+107 (Islatrol Plus)
- Manufacturer: Control Concepts, Binghamton, NY
- Input Voltage: 120 VAC
- Frequency: 50/60 Hz
- Current Rating: 7.5 A
- Filter Mode: Normal Mode and Common Mode
- TVSS Rating: 330 Vpk — L-N, L-G, N-G

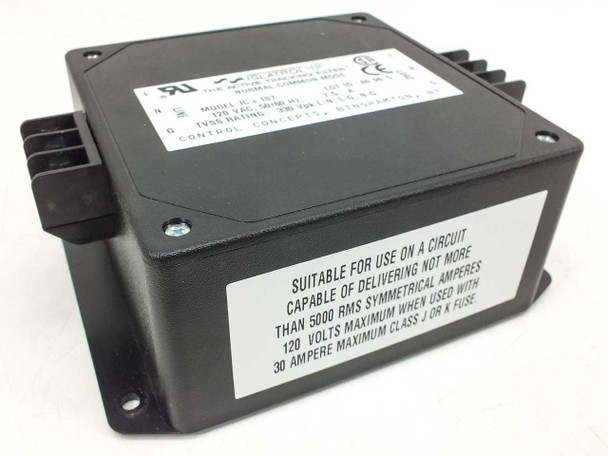

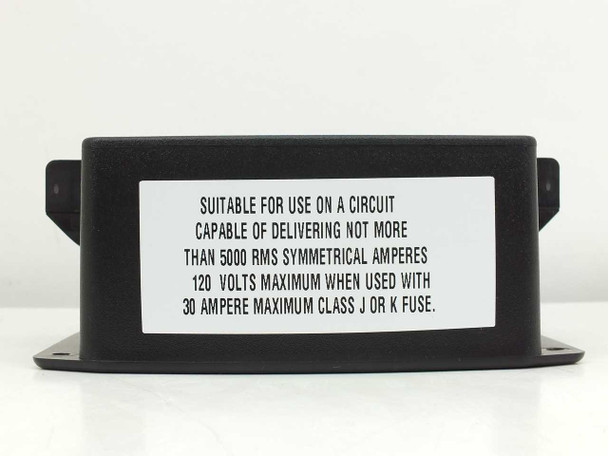

- Circuit Suitability: up to 5,000 RMS symmetrical amperes at 120V maximum
- Fuse Requirement: 30 Ampere maximum, Class J or K fuse

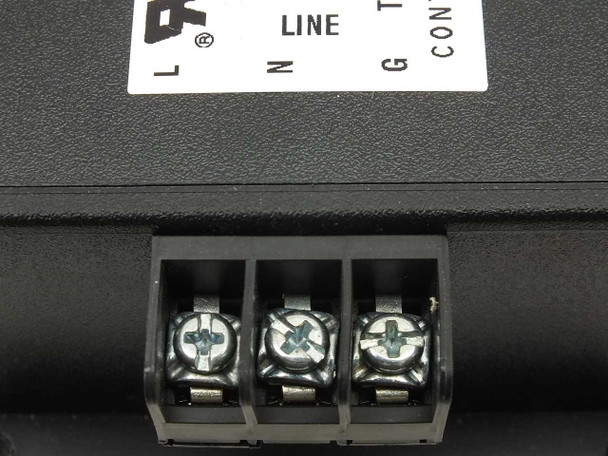

- LINE connection: 3-position screw terminal block (L, N, G)

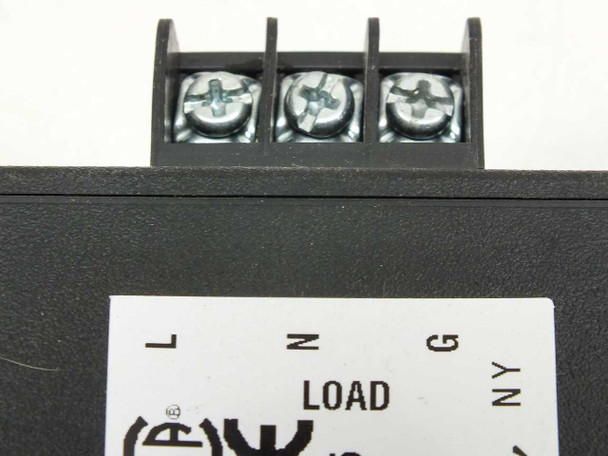

- LOAD connection: 3-position screw terminal block (L, N, G)
- Internal components: two toroidal inductors, capacitors, green ground wire

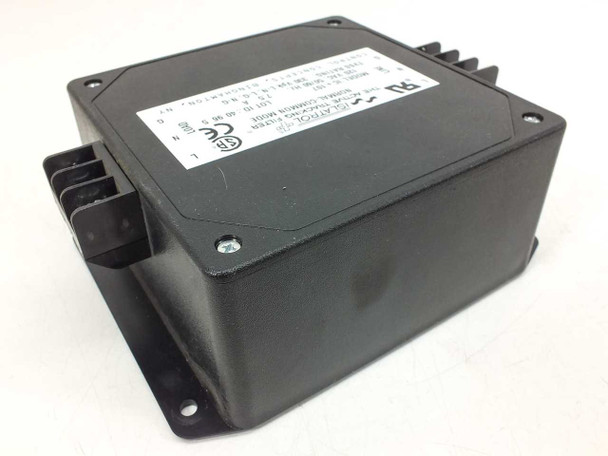

- Enclosure: flanged steel base for panel or enclosure mounting
- Certifications: UL Listed, CSA, CE
- Lot ID: 40 96 5
- Includes: filter unit only
Applications
The Islatrol IC+107 is used wherever sensitive electronic equipment needs protection from power line noise and transient voltage spikes on 120VAC circuits. Common applications include industrial automation panels, CNC machine tool control systems, laboratory instrumentation, medical equipment rooms, and data processing or office environments where power quality is critical. The normal-mode and common-mode filtering addresses interference generated by variable-speed drives, relays, switching power supplies, and other noise-producing equipment sharing the same branch circuit. Control Concepts introduced the Islatrol line in the 1980s and 1990s as a step beyond conventional passive filters, targeting industrial OEMs and system integrators who needed a compact, panel-mount solution that could be wired directly into their control enclosures. Units like the IC+107 remain in demand for legacy machine retrofits, replacement in existing panels, and any application requiring a hardwired inline filter rather than a plug-in power strip conditioner.

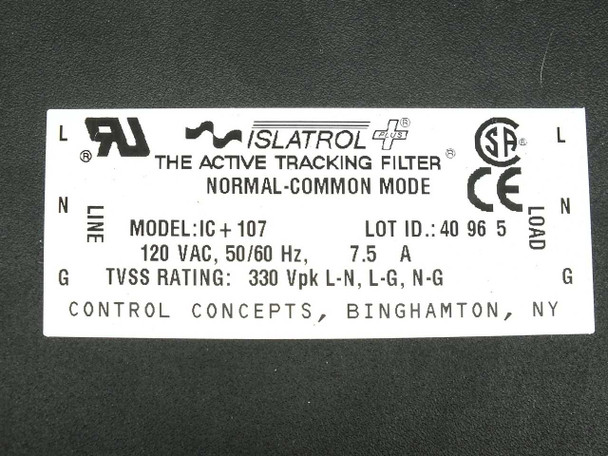

This Control Concepts Islatrol IC+107 Active Tracking Filter has been inspected and appears to be in good used condition. The enclosure is intact with no cracks or significant damage observed. The rating label is clean and fully legible. Both the LINE and LOAD screw terminal blocks are present and show normal use wear. The interior components — including the toroidal inductors, capacitors, and wiring — are visible and appear intact with no signs of burning, damage, or corrosion. Some light surface wear on the enclosure is typical for a pulled surplus unit. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Control Concepts |
Model: |
IC+107 |
MPN: |
IC+107 |
Type: |
Active Tracking Line Filter / Power Conditioner |
SKU: |
47619 |
Input Voltage: |
120 VAC |
Frequency: |
50/60 Hz |
Current Rating: |
7.5 A |
Filter Mode: |
Normal Mode and Common Mode |
TVSS Rating: |
330 Vpk L-N, L-G, N-G |
Fault Current Rating: |
5000 RMS Symmetrical Amperes |
Fuse Requirement: |
30 Ampere Maximum Class J or K |
Connector Type: |
Screw terminal block (LINE side and LOAD side) |
Mounting: |
Panel / DIN mount with flanged base |
Certifications: |
UL Listed, CSA, CE |
Country/Region of Manufacture: |
United States |
Manufacturer Location: |
Binghamton, NY |
Lot ID: |
40 96 5 |
Condition: |
Used – Inspected |
Seller Notes: |
Unit only; no additional accessories included. |
Condition Notes: |
Control Concepts Islatrol IC+107 Active Tracking Filter in good used condition. Enclosure intact, label legible, terminals present. Interior components appear undamaged. Light surface wear typical. Please contact us with any questions. |
