DTC 5280CZ 16-Bit ISA MFM Hard Drive Controller Card 37-Pin DB37 External

(No reviews yet) Write a Review
SKU:
22456
MPN:
5280CZ
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • DTC 5280CZ 16-bit ISA MFM hard drive controller card – top component side view showing full PCB layout and DB37 bracket
  • DTC 5280CZ ISA MFM controller card – angled top view showing main controller ICs, edge connector, and 37-pin external port bracket
  • DTC 5280CZ – close-up of 37-pin DB37 external port bracket on card slot bracket
  • DTC 5280CZ ISA MFM controller card – solder side (bottom) view showing PCB traces and gold ISA edge connector
  • DTC 5280CZ – close-up of PCB silkscreen showing model number DTC5280CZ and Motorola MC3487P controller chip marking
$40.00
Was: $80.00
Current Stock: 1

Sold Out

Description

DTC 5280CZ 16-Bit ISA MFM Hard Drive Controller Card 37-Pin DB37 External

A 16-bit ISA interface card for controlling MFM and RLL hard disk drives via external 37-pin DB37 connector. This full-length card was used in legacy computer systems from the 1980s and early 1990s to manage drive operations and data transfer.

Specifications & What's Included

  • Bus Interface: 16-Bit ISA
  • Drive Interface: MFM (Modified Frequency Modulation)
  • External Connector: 37-Pin DB37
  • Controller Chip: Motorola MC3487P
  • Compatible Drives: MFM and RLL Hard Disk Drives
  • Form Factor: Full-Length ISA Card
  • Manufacturer: DTC (Taiwan)
  • Included: Card only; no cables or accessories

Applications

MFM controller cards were standard equipment in computers from the 1980s through early 1990s, including IBM PC/XT and AT-compatible systems. This card interfaces with vintage MFM or RLL hard drives for data storage and retrieval. Compatible with systems using 16-bit ISA slots, such as 286 and 386-based computers and industrial control systems of that era.

Condition: Used
This DTC 5280CZ 16-bit ISA MFM Hard Drive Controller Card has been inspected and is in good condition. The PCB is clean with no visible cracked traces, burnt components, or damaged solder joints. The 37-pin DB37 external port bracket is straight and intact. The gold ISA edge connector fingers show normal oxidation consistent with age but appear serviceable. No cables or accessories are included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
DTC
Model:
5280CZ
MPN:
DTC5280CZ
Type:
MFM Hard Drive Controller Card
SKU:
22456
Bus Interface:
16-Bit ISA
Drive Interface:
MFM (Modified Frequency Modulation)
External Connector:
37-Pin DB37
Form Factor:
Full-Length ISA Card
Compatible Drive Types:
MFM, RLL Hard Disk Drives
Controller Chip:
Motorola MC3487P (visible on PCB)
Condition:
Used – Inspected and in Good Condition
Country/Region of Manufacture:
Taiwan
Seller Notes:
Card only; no cables or accessories included.
Condition Notes:
DTC 5280CZ 16-bit ISA MFM Hard Drive Controller Card. Inspected and in good condition. PCB is clean, DB37 bracket intact, ISA edge connector shows normal age-related oxidation. Card only — no cables included.
View AllClose

Related Products

Related Products

DTC 5280 CRZ 16-bit MFM controller card – top component side view showing full ISA card layout DTC 5280 CRZ MFM controller card – solder side (bottom) view with DB37 connector visible at bracket end
Add to Cart
Quick view

DTC 5280 CRZ 16-Bit MFM Hard Drive Controller Card ISA Zilog Z0765A08PSC

DTC

$20.00
Was: $60.00
DTC 5280 CRZ 16-Bit MFM Hard Drive Controller Card ISA Zilog Z0765A08PSC A 16-bit ISA hard drive controller card for MFM (Modified Frequency Modulation) drives. This full-length expansion card...
10251
SKU:
10251
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Brand:
DTC (Data Technology Corporation)
Model:
5280 CRZ
MPN:
5280 CRZ
Type:
MFM Hard Drive Controller Card
SKU:
10251
Bus Interface:
ISA (16-bit)
Data Encoding:
MFM (Modified Frequency Modulation)
External Connector:
37-pin D-sub (DB37)
Controller Chip:
Zilog Z0765A08PSC FDC
Assembly Revision:
Rev A
Form Factor:
Full-Length ISA Card
Compatible With:
IBM PC/XT/AT and compatible systems
Condition:
Used – Inspected
Seller Notes:
Card only; no cables or accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
This DTC 5280 CRZ 16-bit MFM Controller Card has been inspected and appears to be in good used condition. The PCB is clean and free of visible damage, and all major ICs — including the Zilog Z0765A08PSC FDC controller — are present and seated.
DTC 5280 CRA 16-bit ISA MFM controller card – full front PCB view showing component side DTC 5280 CRA ISA MFM controller card – rear solder side of full-length PCB
Add to Cart
Quick view

DTC 5280 CRA 16-Bit ISA MFM Hard Drive Floppy Controller Card Rev B HDD FDD

DTC

$40.00
Was: $80.00
DTC 5280 CRA 16-Bit ISA MFM Hard Drive Floppy Controller Card Rev B HDD FDD The DTC 5280 CRA is a full-length 16-bit ISA expansion card designed to interface MFM (Modified Frequency Modulation) hard...
10252
SKU:
10252
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
DTC (Diversified Technology Corp)
Model:
5280 CRA
MPN:
5280 CRA
Type:
ISA MFM Hard Drive & Floppy Controller Card
SKU:
10252
Bus Interface:
16-Bit ISA (AT)
Drive Interface:
MFM (Modified Frequency Modulation)
Supported Drive Types:
MFM Hard Drive, Floppy Disk Drive (FDD)
Assembly Revision:
Rev B
Controller Chipset:
Zilog Z0765A00PSC FDC
Form Factor:
Full-Length ISA Card
Condition:
Used – Inspected
Compatible With:
IBM PC/AT and compatible 16-bit ISA systems
Country/Region of Manufacture:
United States
Seller Notes:
Card only; no cables or drive accessories included.
Condition Notes:
This DTC 5280 CRA 16-Bit ISA MFM Hard Drive and Floppy Controller Card has been inspected and appears to be in good used condition. The PCB is clean and green with no visible cracks, burns, or broken traces.

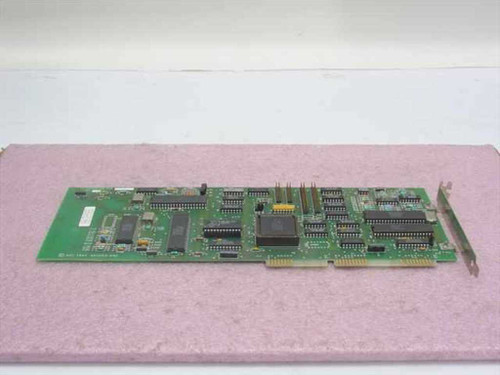

Western Digital WD1003-WA2 16-bit ISA MFM controller card — angled top view showing PCB components and ISA edge connector Western Digital WD1003-WA2 MFM controller card — full top-side view showing chip layout, drive headers, and bracket
