Description
DTC 5280 CRZ 16-Bit MFM Hard Drive Controller Card ISA Zilog Z0765A08PSC

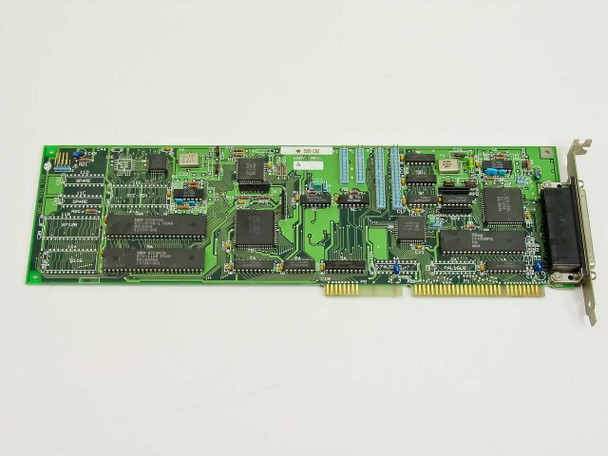

A 16-bit ISA hard drive controller card for MFM (Modified Frequency Modulation) drives. This full-length expansion card connects to IBM PC/XT/AT and compatible systems via a 37-pin D-sub connector, using the Zilog Z0765A08PSC controller chip.
Specifications & What's Included
- Brand: DTC (Data Technology Corporation)
- Model: 5280 CRZ, Revision A
- Bus Interface: ISA 16-bit
- Data Encoding: MFM
- External Connector: 37-pin D-sub (DB37)
- Form Factor: Full-Length ISA Card
- Card only — no cables or accessories included
Applications
MFM controller cards were standard in PC systems from the 1980s through early 1990s for interfacing hard drives and floppy drives. This controller is compatible with IBM PC, XT, and AT systems and their clones. It was used in desktop and tower systems requiring MFM drive support before IDE and SCSI standards became dominant. Suitable for system restoration, legacy hardware repair, or vintage computing applications.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

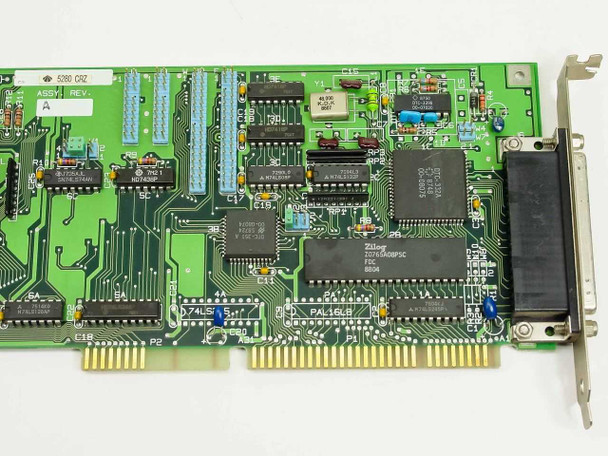

This DTC 5280 CRZ 16-bit MFM Controller Card has been inspected and appears to be in good used condition. The PCB is clean and free of visible damage, and all major ICs — including the Zilog Z0765A08PSC FDC controller — are present and seated. The card shows typical cosmetic wear consistent with previous installation in a system. The 37-pin external connector bracket is intact. This is a card-only listing; no cables or accessories are included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
DTC (Data Technology Corporation) |
Model: |
5280 CRZ |
MPN: |
5280 CRZ |
Type: |
MFM Hard Drive Controller Card |
SKU: |
10251 |
Bus Interface: |
ISA (16-bit) |
Data Encoding: |
MFM (Modified Frequency Modulation) |
External Connector: |
37-pin D-sub (DB37) |
Controller Chip: |
Zilog Z0765A08PSC FDC |
Assembly Revision: |
Rev A |
Form Factor: |
Full-Length ISA Card |
Compatible With: |
IBM PC/XT/AT and compatible systems |
Condition: |
Used – Inspected |
Seller Notes: |
Card only; no cables or accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
DTC 5280 CRZ 16-bit MFM controller card inspected and in good used condition. PCB clean, ICs present and seated, bracket intact. Card only — no cables included. Please contact us with any questions. |
