DTC 5280 CZI ISA Control Board Card DB37 Parallel Interface Industrial PC

(No reviews yet) Write a Review
SKU:
22455
MPN:
5280 CZI
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

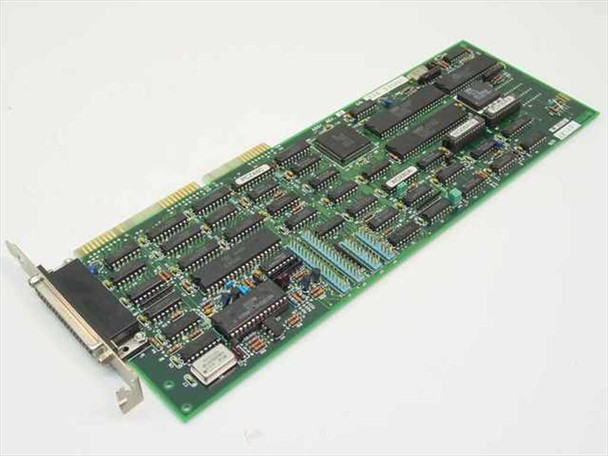

  • DTC 5280 CZI ISA control board – front component side view showing full card length with DB37 bracket connector on left
  • DTC 5280 CZI ISA control board – reverse front angle showing solder side and DB37 bracket connector on right
  • DTC 5280 CZI ISA control board – close-up of DB37 37-pin D-sub bracket connector
  • DTC 5280 CZI ISA control board – solder/trace side view showing PCB routing and ISA edge connector
  • DTC 5280 CZI board label close-up showing model number 5280 CZI with manufacturer logo and work order 22122
$12.90
Was: $35.00
Current Stock: 1

Sold Out

Description

DTC 5280 CZI ISA Control Board Card DB37 Parallel Interface Industrial PC

ISA bus control board card with DB37 parallel interface connector. Designed for industrial control systems and legacy ISA-bus computer configurations.

Specifications & What's Included

  • Brand: DTC
  • Model: 5280 CZI
  • Form Factor: ISA full-length card
  • Bus Interface: ISA (Industry Standard Architecture)
  • Connector: DB37 (37-pin D-sub) parallel interface with ISA edge connector
  • Card only; no cables or accessories included

Applications

This control board type was commonly used in industrial automation, process control, and telecommunications equipment that operated on ISA bus architecture. Compatible with legacy ISA-bus personal computers and industrial control systems from the 1980s through early 2000s. The DB37 parallel interface supported data acquisition and device control functions in manufacturing and telecom environments.

Condition: Used
This DTC 5280 CZI ISA control board has been inspected and is in good condition. The PCB is clean with no visible cracked traces, burned components, or physical damage. The DB37 bracket connector shows normal wear but is intact and the pins are straight. The ISA edge connector contacts appear clean. Normal light handling marks are present on the board consistent with prior installation and removal. Card only — no cables or accessories are included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
DTC
Model:
5280 CZI
MPN:
5280 CZI
Type:
ISA Control Board / Interface Card
SKU:
22455
Form Factor:
ISA Full-Length Card
Bus Interface:
ISA (Industry Standard Architecture)
Connector Type:
DB37 (37-pin D-sub), ISA edge connector
Interface:
DB37 Parallel Interface
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; no cables or accessories included.
Compatible With:
ISA-bus PCs, industrial control systems
Condition Notes:
DTC 5280 CZI ISA control board. Inspected and in good condition. PCB clean, DB37 connector intact, ISA edge connector contacts clean. Normal handling wear. Card only, no cables included.
View AllClose

Related Products

Related Products

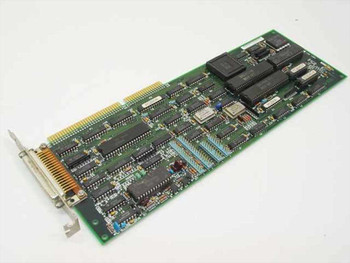

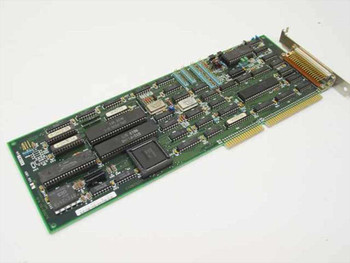

DTC 5280CZ 16-bit ISA MFM hard drive controller card – top component side view showing full PCB layout and DB37 bracket DTC 5280CZ ISA MFM controller card – angled top view showing main controller ICs, edge connector, and 37-pin external port bracket
