Decom Systems DSI 7132-1000-008 PSK Modem Rackmount Modulator Demodulator
PSK modem unit designed for Phase Shift Keying modulation and demodulation in rackmount configuration. Provides modulator and demodulator sections with front panel controls for carrier, mixer, bandwidth, and input source selection.
Specifications & What's Included
- Model: 7132-1000-008 (Assembly 000165-A)
- Modulation Type: PSK (Phase Shift Keying)
- Form Factor: Rackmount
- Modulator controls: Carrier On/Off, Mixer On/Off, Sideband Filter In/Bypass
- Demodulator controls: Bandwidth (1–4/RMT), Input Source (1/2), Wide/Narrow/Loop
- Connectors: BNC ports (Demod In 1/2, Mod Out, Mixer In, Demod Out, Mod Data In), D-Sub rear interface, circular multi-pin AC power
- Unit only; no accessories or manual included
Applications
PSK modems were used in telecom and data transmission systems for satellite communications, microwave links, and point-to-point RF data networks. This rackmount unit served in baseband signal processing for PSK-modulated carrier systems, handling both modulation of outbound data and demodulation of received signals within larger communication platforms.
Condition: Used
This Decom Systems DSI 7132-1000-008 PSK Modem has been inspected and appears to be in good condition. It was pulled from a working environment where it was in active use. The front panel controls, indicators, and BNC test points look intact with no obvious damage. The chassis and rear panel show normal wear consistent with rack service use. Please view our photo set and contact us if you have any questions.
This Decom Systems DSI 7132-1000-008 PSK Modem has been inspected and appears to be in good condition. It was pulled from a working environment where it was in active use. The front panel controls, indicators, and BNC test points look intact with no obvious damage. The chassis and rear panel show normal wear consistent with rack service use. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Decom Systems Inc. |
Model: |
7132-1000-008 |
MPN: |
7132-1000-008 |
Secondary Model: |
000165-A |
Type: |
PSK Modem (Modulator/Demodulator) |
SKU: |
39445 |
Form Factor: |
Rackmount |
Modulation Type: |
PSK (Phase Shift Keying) |

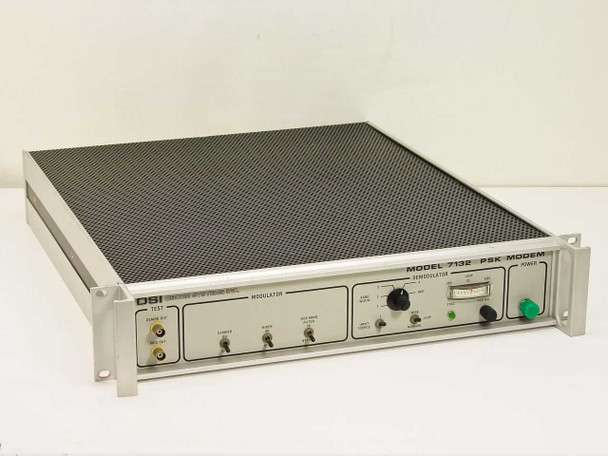

Front Panel Sections: |
Modulator, Demodulator, Power |

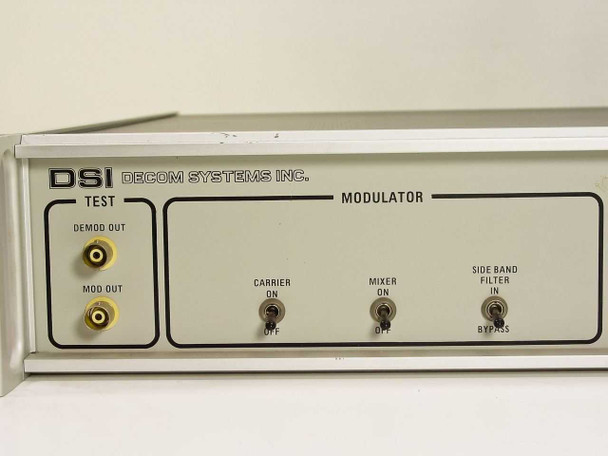

Modulator Controls: |
Carrier On/Off, Mixer On/Off, Side Band Filter In/Bypass |

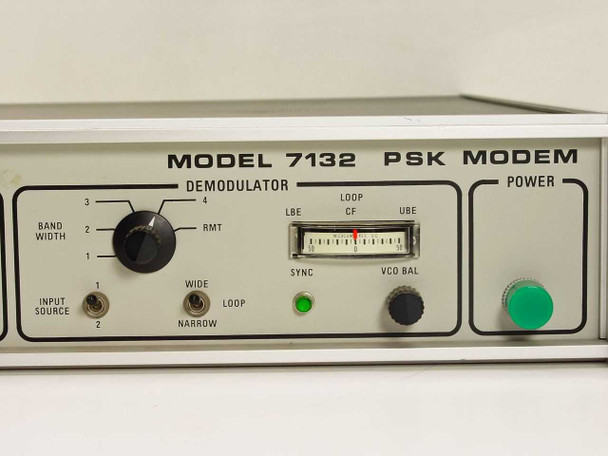

Demodulator Controls: |
Bandwidth (1–4/RMT), Input Source (1/2), Wide/Narrow/Loop |
Demodulator Indicators: |
Sync LED, VCO BAL meter (LBE, CF, UBE, Loop) |
Test Points (Front): |
DEMOD OUT (BNC), MOD OUT (BNC) |

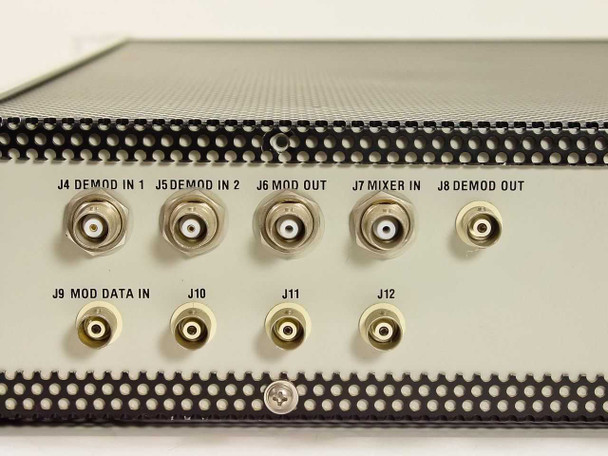

Rear BNC Ports: |

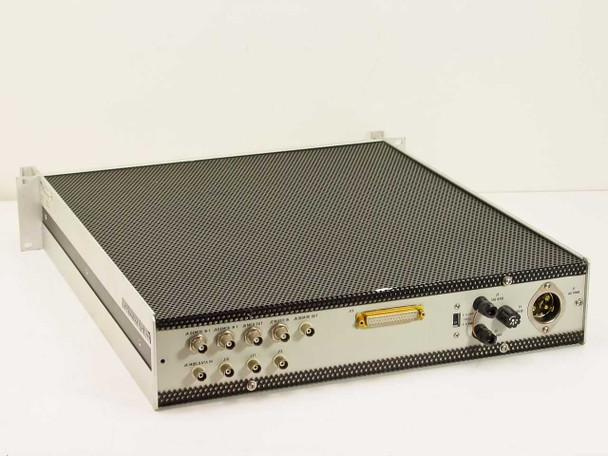

J4 Demod In 1, J5 Demod In 2, J6 Mod Out, J7 Mixer In, J8 Demod Out, J9 Mod Data In, J10, J11, J12 |

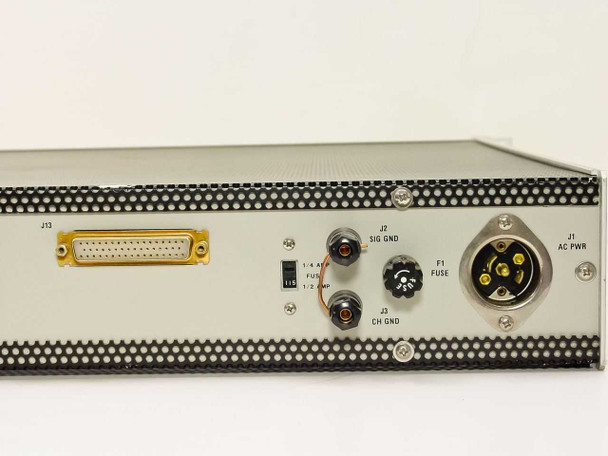

Rear Interface Connector: |
J13 D-Sub (gold, large format) |
Power Connector (Rear): |
J1 AC PWR (circular multi-pin), J2 SIG GND, J3 CH GND |
Fuse: |
F1 Fuse, 1/4A rated (visible on rear panel) |
Connector Types: |
BNC, D-Sub, Circular multi-pin AC power |

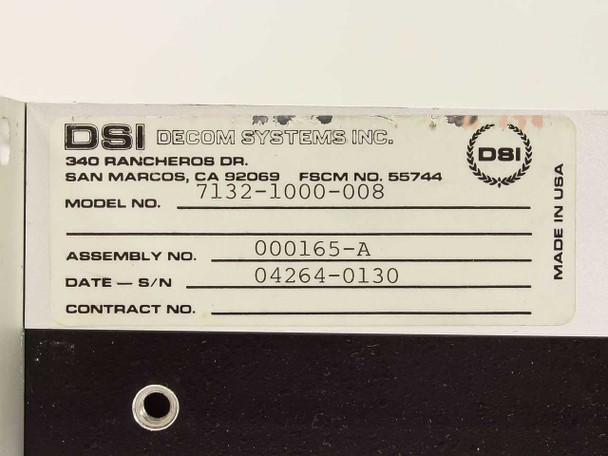

Assembly Number: |
000165-A |
FSCM Number: |
55744 |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Unit only; no accessories or manual included. |
Condition: |
Used – Pulled from Working Environment |
Condition Notes: |
Decom Systems DSI 7132-1000-008 PSK Modem inspected and in good condition. Pulled from a working environment where it was in active use. Front panel controls and BNC ports appear intact. Normal rack-service wear. Photos available. |
