CTI Cryogenics 8143143 5 Pairs Compressor He Supply & Return Lines G001 G002

(No reviews yet) Write a Review
SKU:
20262
MPN:
8143143 G002
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout

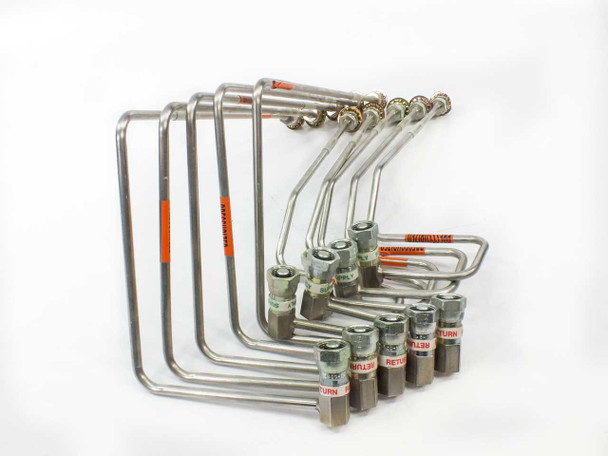

  • CTI Cryogenics 8143143 — full set of 5 supply and 5 return helium compressor lines fanned out, showing orange supply labels and RETURN-labeled Aeroquip couplings

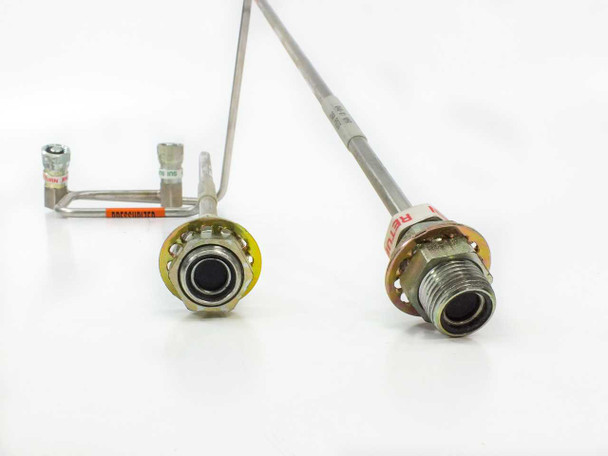

  • CTI Cryogenics 8143143 — close-up of Aeroquip 5400-S5-4 and 5400-S2-4 quick-disconnect coupling faces showing male and female ends with yellow and orange identification rings
  • CTI Cryogenics 8143143 G001 G002 — single matched pair showing SUPPLY (green label) and RETURN (red label) lines side by side with Aeroquip couplings and bent stainless tubing
$117.00
Was: $200.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

CTI Cryogenics 8143143 5 Pairs Compressor He Supply & Return Lines G001 G002

This listing is for five (5) matched pairs — 10 individual lines total — of CTI Cryogenics helium supply and return lines for cryogenic compressor systems. Each pair consists of one supply line (8143143G001) and one return line (8143143G002), both terminated with Aeroquip low air inclusion refrigerant quick-disconnect couplings. The supply and return lines have different bending profiles to route correctly within the compressor assembly.

Specifications & What's Included

  • Manufacturer: CTI Cryogenics
  • Base Part Number: 8143143
  • Quantity: 5 matched pairs (10 lines total)
  • Supply Line — Part Number: 8143143G001 (G001); Length: approximately 14 inches
  • Return Line — Part Number: 8143143G002 (G002); Length: approximately 14.5 inches
  • Approximate tubing length per line: ~19 inches
  • Pressure rating: 260 PSIG (per NMR marking on couplings)
  • Supply coupling: Aeroquip 5400-S5-4 Low Air Inclusion Refrigerant Quick-Disconnect
  • Return coupling: Aeroquip 5400-S2-4 Low Air Inclusion Refrigerant Quick-Disconnect
  • Coupling hex nut size: 0.75 inch
  • One coupling on each end of each line
  • Stainless steel tubing construction
  • Supply lines identified with orange labels; return lines identified with red/white
    Condition: Used
    This CTI Cryogenics 8143143 5-pair set of helium supply and return lines (G001 and G002) is in good used condition. The stainless tubing is intact with no visible cracks, kinking, or deformation across all 10 lines. The Aeroquip quick-disconnect couplings on both ends appear clean and undamaged — the coupling faces and seals look to be in good shape based on the photos. There is light surface oxidation and handling marks typical of pulled cryogenic hardware, but nothing that would affect service. These are non-powered mechanical lines and have not been pressure-tested at our facility. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
CTI-Cryogenics
Model:
8143143
MPN:
8143143
Secondary Model:
G001 / G002
Type:
Cryogenic Compressor Helium Supply & Return Lines
SKU:
20262
Quantity:
5 matched pairs (10 lines total — 5 supply, 5 return)
Supply Line Part Number:
8143143G001
Return Line Part Number:
8143143G002
Supply Line Length:
14 inches
Return Line Length:
14.5 inches
Approximate Tubing Length:
~19 inches per line
Pressure Rating:
260 PSIG
Coupling Type:
Aeroquip Low Air Inclusion Refrigerant Quick-Disconnect
Supply Coupling Part Number:
Aeroquip 5400-S5-4
Return Coupling Part Number:
Aeroquip 5400-S2-4
Coupling Hex Nut Size:
0.75 inch
Application:
CTI Cryogenics NMR cryogenic compressor systems
Compatible With:
CTI Cryogenics NMR 260 PSIG cryogenic compressors
Country/Region of Manufacture:
United States
Condition Notes:
CTI Cryogenics 8143143 He supply & return lines (G001/G002) — 5 pairs in good used condition. Tubing intact, no visible kinking or cracks. Aeroquip couplings appear clean and undamaged. Light wear typical of pulled cryogenic hardware.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
