CTI Cryogenics

CTI Cryogenics 8143143 He Compressor Supply & Return Line Pair Aeroquip

(No reviews yet) Write a Review
SKU:
20258
MPN:
8143143
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

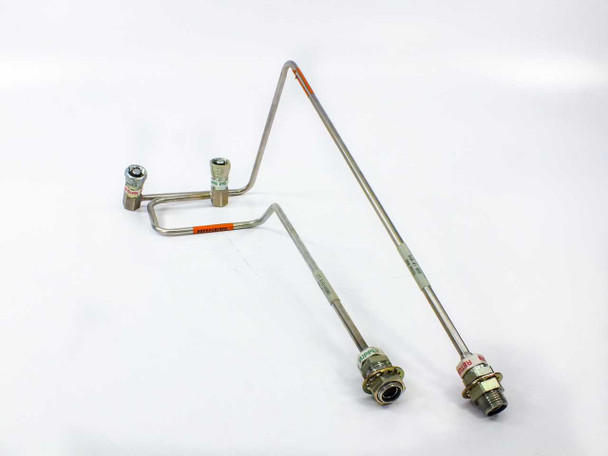

  • CTI Cryogenics 8143143 helium compressor supply and return line pair shown together – full view of both bent stainless steel tubes with Aeroquip couplings
  • CTI Cryogenics 8143143 cryo lines – close-up front view of Aeroquip 5400-S5-4 female and 5400-S2-4 male coupling ends showing internal seals and threaded fittings

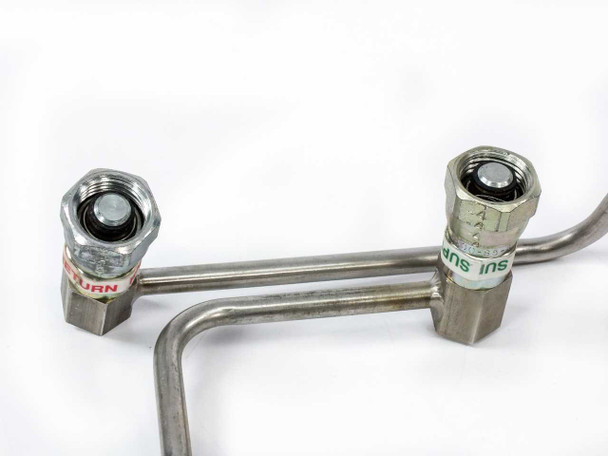

  • CTI Cryogenics 8143143 supply and return line pair – close-up of supply (SUP) and return (RETURN) labeled Aeroquip couplings showing O-ring seals and hex nut construction
  • CTI Cryogenics 8143143 helium compressor line pair – alternate angle showing bent tubing profile of both supply and return lines with orange ID band and labeled couplings
$35.00
Was: $70.00
Current Stock: 6

Sold Out

Description

CTI Cryogenics 8143143 He Compressor Supply & Return Line Pair Aeroquip 5400-S5-4

Matched pair of stainless steel rigid tubing lines for helium compressor systems. Supply line 8143143G001 measures 14" (approximately 19" tubing) and return line 8143143G002 measures 14.5" (approximately 19" tubing), connected via Aeroquip couplings rated for 260 PSIG.

Specifications & What's Included

  • Supply line: 8143143G001, 14" length, Aeroquip 5400-S5-4 female coupling
  • Return line: 8143143G002, 14.5" length, Aeroquip 5400-S2-4 male coupling
  • Inlet thread: 1/2"-20; Outlet thread: 5/8"-18 UNF
  • Hex nut size: 0.75" (3/4")
  • Material: Stainless steel rigid tubing
  • Pressure rating: 260 PSIG

Applications

These lines connect to CTI Cryogenics helium compressors and cryopump systems used in laboratory and industrial cryogenic applications. They handle helium gas supply and return circulation in closed-cycle refrigeration systems. The rigid tubing and rated couplings maintain system integrity under operating pressures typical of helium compressor installations.

Condition: Used
This CTI Cryogenics 8143143 helium compressor supply and return line pair has been inspected and is in good used condition. Both lines were pulled from a working cryogenic system where they were in active service. The stainless steel tubing is intact with no visible kinks or damage, and the Aeroquip coupling fittings on both the supply (5400-S5-4 female) and return (5400-S2-4 male) ends show normal service wear consistent with use in a cryogenic environment. The orange identification band is present. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
CTI Cryogenics
Model:
8143143
MPN:
8143143
Secondary Model:
8143143G001 / 8143143G002
Type:
Helium Compressor Supply & Return Line Pair
SKU:
20258
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes one matched pair: supply line 8143143G001 (14") and return line 8143143G002 (14.5")
Compatible With:
CTI Cryogenics helium compressors and cryopump systems
Coupling Type (Supply End):
Aeroquip 5400-S5-4 Coupling Half – Female
Coupling Type (Return End):
Aeroquip 5400-S2-4 Coupling Half – Male
Inlet Thread:
1/2"-20 Thread
Outlet Thread:
5/8"-18 UNF Thread
Hex Nut Size:
0.75" (3/4") hex nut
Pressure Rating:
260 PSIG
Supply Line Length:
14" (approx. 19" tubing)
Return Line Length:
14.5" (approx. 19" tubing)
Material:
Stainless steel rigid tubing
Application:
Cryogenic helium compressor supply and return gas lines
Country/Region of Manufacture:
United States
Condition Notes:
CTI Cryogenics 8143143 He compressor supply & return line pair inspected and in good used condition. Pulled from a working cryo system. Aeroquip couplings intact. Normal service wear. Please contact us with any questions.
