Compaq

Compaq 176608-001 ML330 G1 Feature Board VGA LAN PCI Server Option Card

(No reviews yet) Write a Review
SKU:
45088
MPN:
176608-001
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Compaq 176608-001 ML330 G1 Feature Board – front bracket view showing VGA DB-15 port, RJ-45 LAN port, and ACT/10/100/LINK indicator LEDs
  • Compaq 176608-001 ML330 G1 Feature Board – reverse side showing full PCB layout with Samsung and other ICs, CMOS battery, DIP switch bank, and PCI edge connector
  • Compaq 176608-001 Feature Board – label detail showing part number 176608-001, FRU WF1002007001, serial 1395544A6801, and REPLACE WITH COMPAQ SPARES notation
$15.00
Was: $30.00
Current Stock: 1

Sold Out

Description

Compaq 176608-001 ML330 G1 Feature Board VGA LAN PCI Server Option Card

The Compaq 176608-001 is a PCI-bus server feature board designed specifically for the ProLiant ML330 G1 tower server. It integrates two essential server I/O functions — a VGA video output and a 10/100 Mbps Ethernet LAN port — onto a single expansion card, providing display and network connectivity for the ML330 G1 platform from a single PCI slot.

Specifications & What's Included

  • Part Number: 176608-001
  • FRU: WF1002007001
  • Interface: PCI
  • Video Output: VGA (DB-15 female)
  • Network Port: RJ-45, 10/100 Mbps Ethernet
  • Status LEDs: ACT, 10/100, LINK indicators on bracket
  • Onboard components: Samsung and additional controller ICs visible on PCB
  • Onboard CMOS battery present
  • DIP switch bank on board (configuration switches)
  • Compatible with: Compaq ProLiant ML330 G1
  • Board only — no accessories or cables included

Applications

The Compaq ProLiant ML330 G1 was a rack-capable tower server introduced around 2000, targeted at small-to-medium business deployments running Windows 2000 Server and similar platforms of the era. The 176608-001 feature board was a standard option card used to provision integrated video and LAN capability within the ML330 G1 chassis, consolidating two functions that would otherwise require separate add-in cards. Today this board is primarily sought by IT professionals and businesses maintaining legacy ML330 G1 servers still in service, as a drop-in replacement for failed or missing option boards. Because the ML330 G1 relies on specific Compaq-sourced option cards, the 176608-001 is a direct, purpose-built replacement rather than a generic adapter.

Condition: Used
This Compaq 176608-001 ML330 G1 Feature Board has been inspected and appears to be in good condition. The PCB is clean with no visible damage, the VGA and RJ-45 ports look intact, and the PCI edge connector is in good shape. It was pulled from a working server environment. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Compaq
Model:
176608-001
MPN:
176608-001
Secondary Model:
WF1002007001
Type:
Server Feature Board / Option Card
SKU:
45088
Compatible With:
Compaq ProLiant ML330 G1
Interface:
PCI
Ports:
VGA (DB-15), RJ-45 10/100 LAN
Network Speed:
10/100 Mbps
Video Output:
VGA
Form Factor:
PCI Card / Server Option Board
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; no accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
Compaq 176608-001 ML330 G1 Feature Board. Inspected and in good condition. PCB clean, VGA and LAN ports intact, PCI connector good. Pulled from a working server environment.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose

Related Products

Related Products

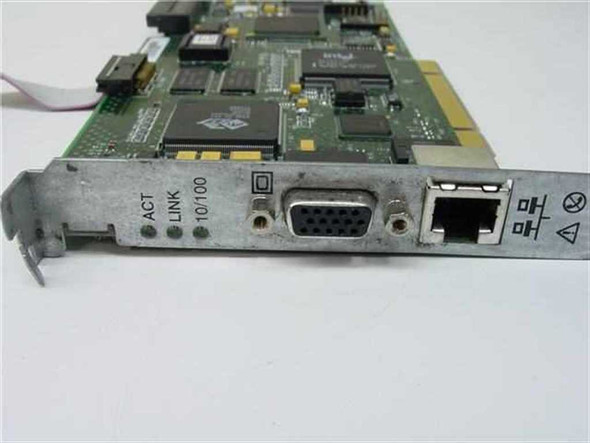

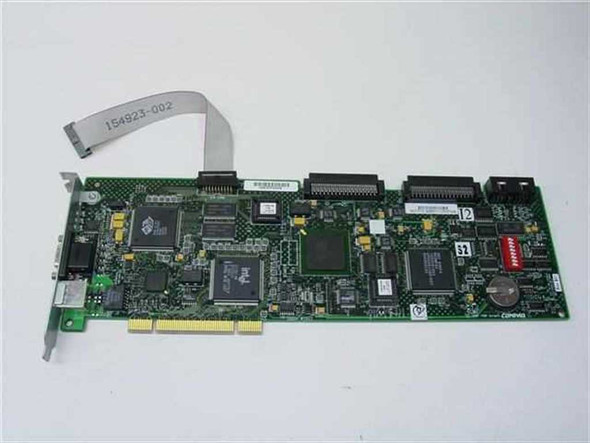

Compaq 163355-001 PCI Server Feature Board – full top-side view showing ATI Rage IIc GPU, SCSI connectors, and ribbon cable Compaq 163355-001 bracket detail showing VGA DB-15 port, RJ-45 Ethernet port, and ACT/LINK/10-100 LED indicators
