Compaq 228495-001 3-Slot PCI Riser Board 011688-001 Rev A ProLiant Server Card

(No reviews yet) Write a Review
SKU:
31890
MPN:
228495-001
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

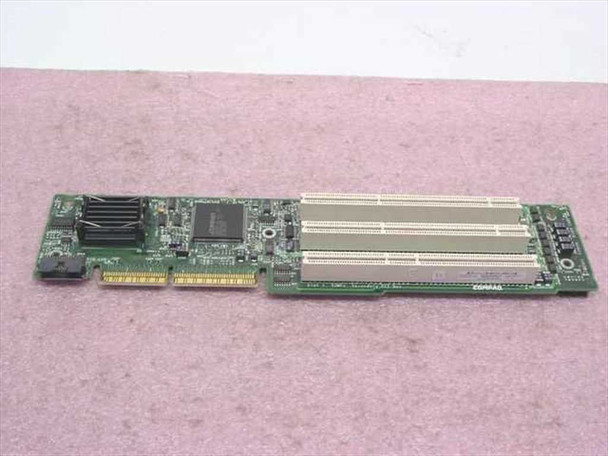

  • Compaq 228495-001 3-slot PCI riser board 011688-001 Rev A — top component side view showing three PCI expansion slots and main controller IC

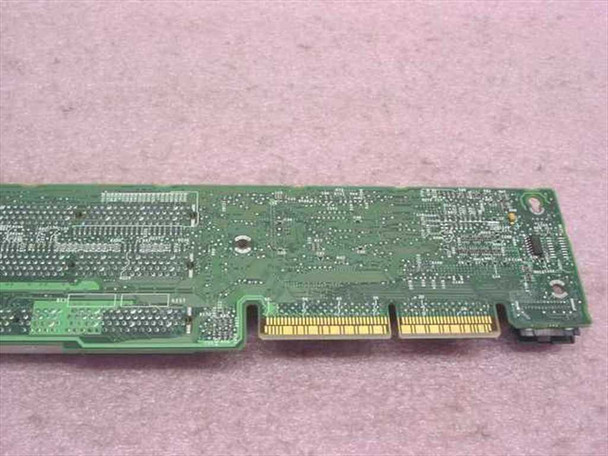

  • Compaq 228495-001 PCI riser board — bottom PCB trace side view showing edge connector fingers and solder side detail
  • Compaq 228495-001 riser board label closeup showing SP# 228495-001, AS# 011686-001 Rev A, DG# 011687-000, Board No. 011688-001, A/W Rev A FAB Rev A, Product of USA
$20.00
Was: $40.00
Current Stock: 1

Sold Out

Description

Compaq 228495-001 3-Slot PCI Riser Board 011688-001 Rev A ProLiant Server Card

A PCI riser board designed for Compaq ProLiant servers. This card expands internal PCI slot capacity by providing three additional PCI slots in a vertical configuration.

Specifications & What's Included

  • Model: 228495-001 / Board: 011688-001
  • 3 PCI slots
  • Revision: Rev A
  • Form factor: Card/Module
  • Manufactured in the United States
  • Riser board only; no accessories included

Applications

PCI riser boards were commonly used in rack-mounted ProLiant servers to increase available expansion slots without additional physical space. This board fits Compaq ProLiant server models that supported riser card configurations, allowing installation of additional network interface cards, storage controllers, or other PCI-based expansion hardware. Typical applications included data center and enterprise server deployments requiring expanded I/O capabilities.

Condition: Used
This Compaq 228495-001 3-slot PCI riser board (011688-001 Rev A) has been inspected and is in good used condition. It was pulled from a working server environment. The PCB is clean with no visible damage, bent pins, or broken slot tabs. Normal light handling marks are present consistent with previous installation and removal. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Compaq
Model:
228495-001
MPN:
228495-001
Secondary Model:
011688-001
Board Number:
011688-001
Assembly Revision:
Rev A / A/W Rev A / FAB Rev A
Type:
PCI Riser Board
Number of Slots:
3
Slot Type:
PCI
Form Factor:
Card/Module
Compatible With:
Compaq ProLiant Server
Country/Region of Manufacture:
United States
SKU:
31890
Condition:
Used – Pulled from Working Environment
Seller Notes:
Riser board only. No accessories included.
Condition Notes:
Compaq 228495-001 PCI riser board (011688-001 Rev A) inspected and in good used condition. Pulled from a working server environment. PCB clean, slots intact, no visible damage.
View AllClose

Related Products

Related Products

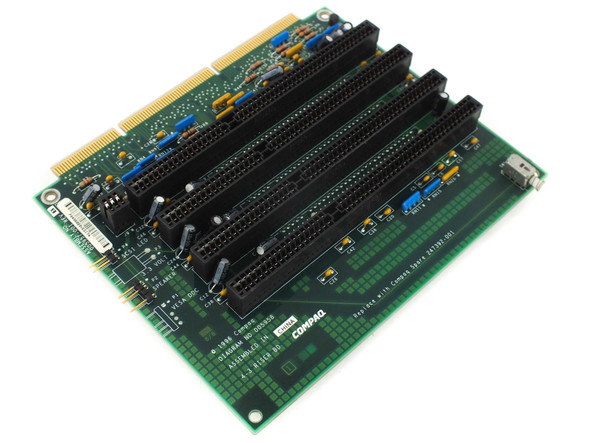

Compaq 247392-001 riser board for Deskpro 4000 — angled top view showing ISA and PCI expansion slots with Compaq logo Compaq 247392-001 riser board — reverse top view showing three tan ISA slot connectors and edge connector
Add to Cart
Quick view

Compaq 247392-001 Riser Board Deskpro 4000 ISA PCI Expansion Card 005957-001

Compaq

$22.00
Was: $40.00
Compaq 247392-001 Riser Board Deskpro 4000 ISA PCI Expansion Card 005957-001A riser board for the Compaq Deskpro 4000 desktop system. This expansion card provides additional ISA and PCI slot...
32826
SKU:
32826
Availability:
Usually ships within 1-2 business days.
Weight:
0.95 LBS
Brand:
Compaq
Model:
247392-001
MPN:
247392-001
Secondary Model:
005957-001
Assembly Number:
005957-001 Rev B
Diagram Number:
005958
Type:
Riser Board / Expansion Card
SKU:
32826
Compatible With:
Compaq Deskpro 4000
Expansion Slots:
ISA (16-bit), PCI
Form Factor:
Riser Card
Bus Interface:
ISA, PCI
Features:
VESA DDC, SCSI LED, Speaker headers, 3.3V
Country/Region of Manufacture:
China
Condition:
Used – Pulled from Working Environment
Seller Notes:
Riser board only; pulled from a working Deskpro 4000 environment.
Condition Notes:
Compaq 247392-001 Deskpro 4000 riser board. Inspected, good used condition. Pulled from a working environment. Normal light wear; no visible damage or broken connectors.

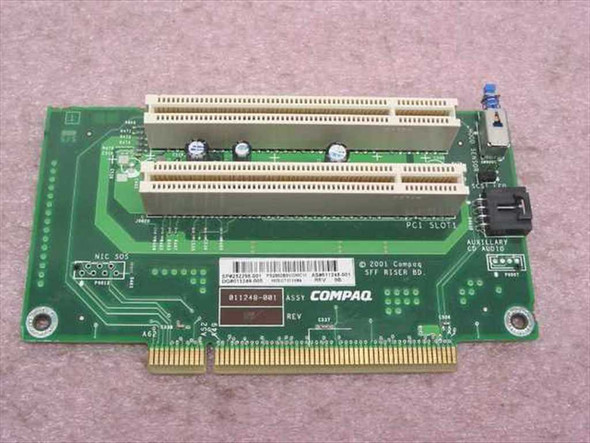

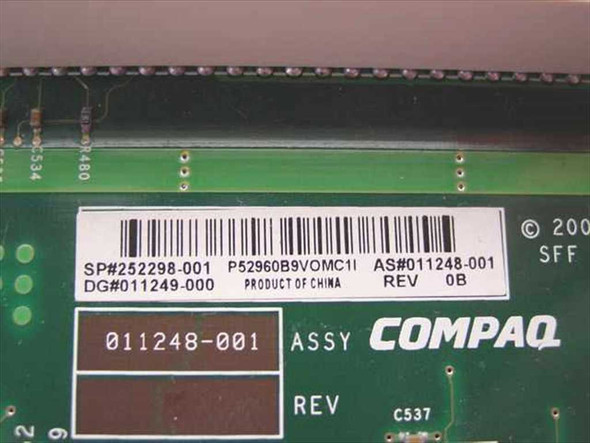

Compaq 252298-001 SFF PCI riser board top view showing two PCI expansion slots and Compaq label Compaq 252298-001 riser board label close-up showing SP# 252298-001, AS# 011248-001, Rev 0B, and Product of China markings
Add to Cart
Quick view

Compaq 252298-001 SFF Riser Board 2 PCI Slots 011248-001 Small Form Factor

Compaq

$12.00
Was: $25.00
Compaq 252298-001 SFF Riser Board 2 PCI Slots 011248-001 Small Form FactorPCI riser board designed for Compaq Small Form Factor desktop systems. This daughter board provides two additional PCI...
31893
SKU:
31893
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Brand:
Compaq
Model:
252298-001
MPN:
252298-001
Secondary Model:
011248-001
Type:
PCI Riser Card / Backplane Board
SKU:
31893
Number of Expansion Slots:
2
Slot Type:
PCI
Form Factor:
Small Form Factor (SFF)
Assembly Number:
011248-001
Spare Part Number:
252298-001
Daughter Board Number:
DG#011249-000
Hardware Revision:
Rev 0B
Compatible With:
Compaq Small Form Factor (SFF) Desktop Systems
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
China
Seller Notes:
Riser board only. Pulled from a working Compaq SFF desktop system.
Condition Notes:
Compaq 252298-001 SFF PCI Riser Board in good used condition. Pulled from a working environment where it was in active use. Board is clean; PCI slots and edge connector intact. No visible damage.

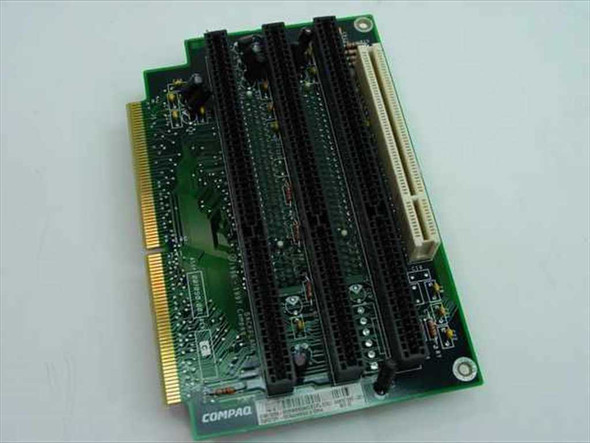

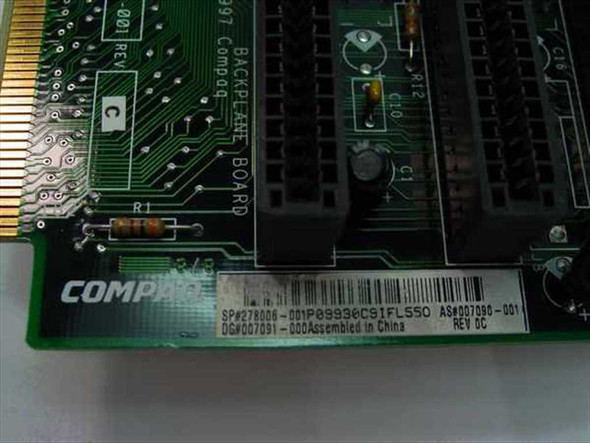

Compaq 278006-001 Backplane Riser Board for Deskpro 2000 — top view showing ISA and PCI expansion slots with Compaq logo Compaq 278006-001 Backplane Board label detail showing part number, Rev DC, AS#007080-001, and Assembled in China markings
Add to Cart
Quick view

Compaq 278006-001 Backplane Riser Board Deskpro 2000 16-Bit ISA PCI Slots Rev DC

Compaq

$20.00
Was: $40.00
Compaq 278006-001 Backplane Riser Board Deskpro 2000 16-Bit ISA PCI Slots Rev DCBackplane riser board for Compaq Deskpro 2000 systems. This component provides expansion slot connectivity for internal...
13179
SKU:
13179
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Compaq
Model:
278006-001
MPN:
278006-001
Secondary Model:
AS#007080-001
Type:
Backplane Riser Board
SKU:
13179
Compatible With:
Compaq Deskpro 2000
Expansion Slots:
16-Bit ISA, PCI
Hardware Revision:
Rev DC
Form Factor:
Riser Card / Backplane Board
Country/Region of Manufacture:
China
Condition:
Used – Pulled from Working Environment
Seller Notes:
Backplane riser board only; no additional accessories included.
Condition Notes:
Compaq 278006-001 Deskpro 2000 backplane riser board pulled from a working environment. Inspected and in good used condition. Slot connectors appear clean and intact. Please contact us with any questions.

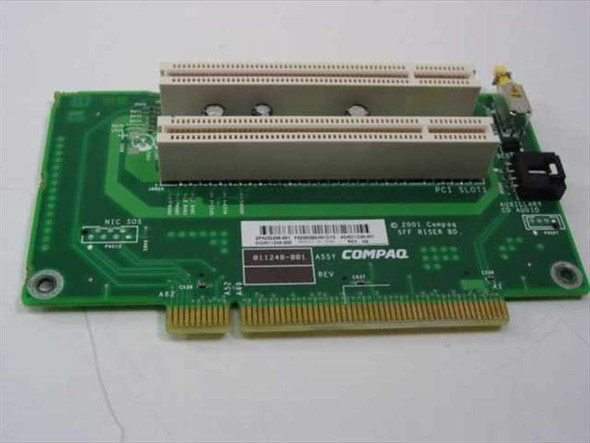

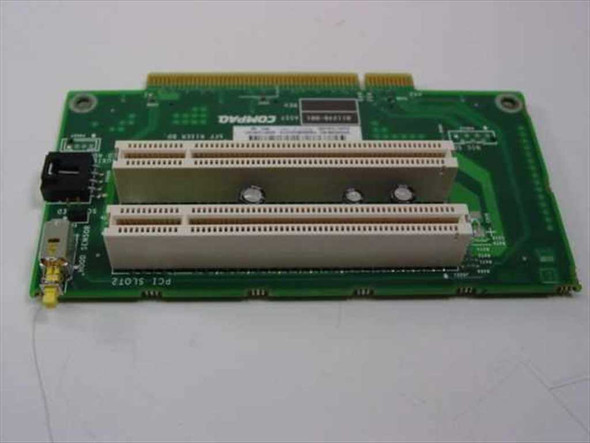

Compaq 262298-001 EVO SFF PCI riser card – top view showing two PCI slots and Compaq label Compaq 262298-001 riser card – reverse top view showing dual PCI slots and board markings
Add to Cart
Quick view

Compaq 262298-001 EVO Small Form Factor SFF PCI Riser Card 2-Slot 011248-001

Compaq

$28.00
Was: $60.00
Compaq 262298-001 EVO Small Form Factor SFF PCI Riser Card 2-Slot 011248-001PCI riser card designed for Compaq EVO Small Form Factor desktop systems. Provides two PCI expansion slots in a compact...
27452
SKU:
27452
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
Compaq
Model:
262298-001
MPN:
262298-001
Secondary Model:
011248-001
Assembly Number:
011248-001
Reference Part Number:
011249-000
Revision:
Rev 0B
Type:
PCI Riser Card
Form Factor:
Small Form Factor (SFF)
Number of Expansion Slots:
2
Slot Type:
PCI
Compatible With:
Compaq EVO Small Form Factor Desktops
Country/Region of Manufacture:
China
SKU:
27452
Condition:
Used – Pulled from Working Environment
Seller Notes:
Riser card only; no cables or accessories included.
Condition Notes:
Compaq 262298-001 EVO SFF PCI riser card pulled from a working environment and inspected. In good used condition — no cracked traces or broken slot tabs visible. Light handling wear only.

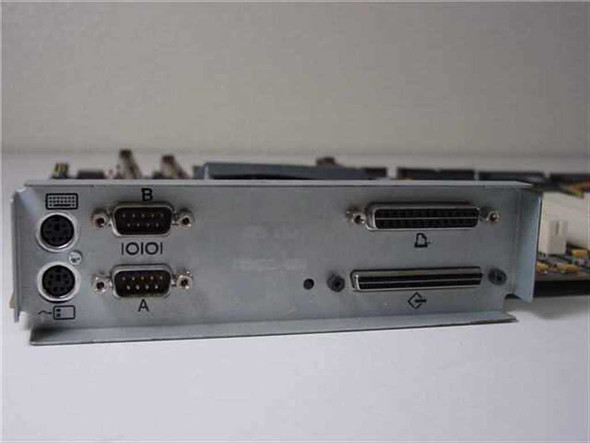

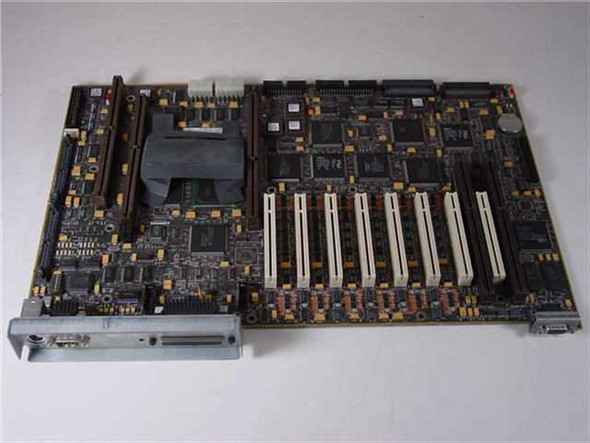

Compaq ProLiant 6000 motherboard 169486-001 — top-down view showing PCI expansion slots, CPU socket, and full board layout Compaq ProLiant 6000 system board — I/O bracket with two DB9 serial ports (A and B), two high-density parallel/SCSI connectors, and PS/2-style ports
