Compaq 252298-001 SFF Riser Board 2 PCI Slots 011248-001 Small Form Factor

(No reviews yet) Write a Review
SKU:
31893
MPN:
252298-001
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

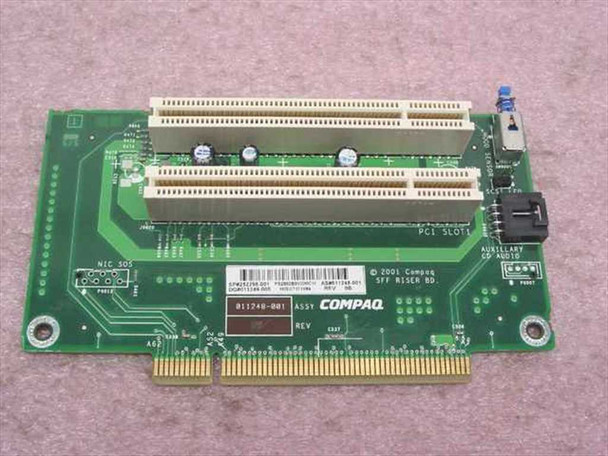

  • Compaq 252298-001 SFF PCI riser board top view showing two PCI expansion slots and Compaq label

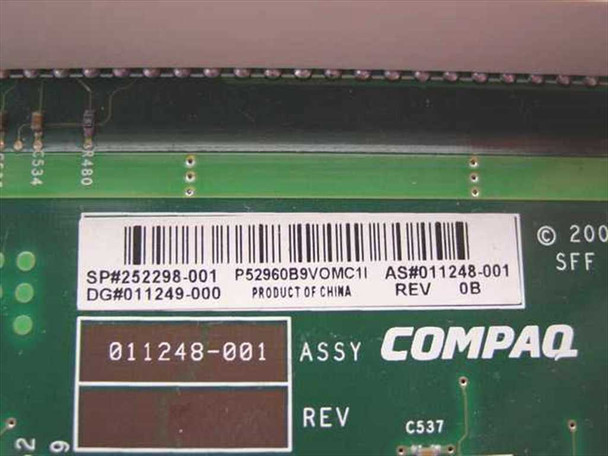

  • Compaq 252298-001 riser board label close-up showing SP# 252298-001, AS# 011248-001, Rev 0B, and Product of China markings

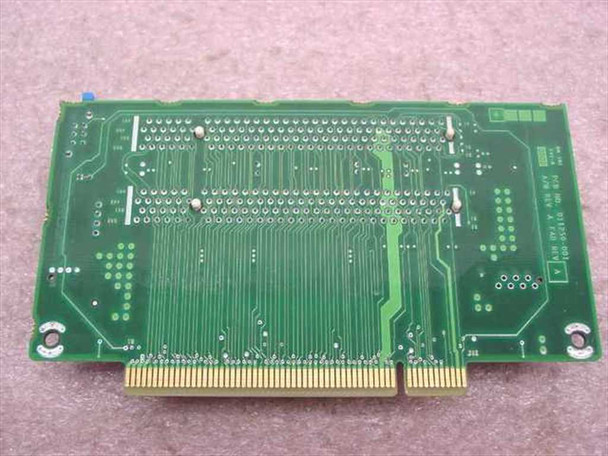

  • Compaq 252298-001 SFF PCI riser board solder-side / bottom view showing edge connector and PCB traces
$12.00
Was: $25.00
Current Stock: 1

Sold Out

Description

Compaq 252298-001 SFF Riser Board 2 PCI Slots 011248-001 Small Form Factor

PCI riser board designed for Compaq Small Form Factor desktop systems. This daughter board provides two additional PCI expansion slots for internal card installations in compact chassis configurations.

Specifications & What's Included

  • Model: 252298-001 / Assembly 011248-001
  • Form Factor: Small Form Factor (SFF)
  • Expansion Slots: 2 PCI
  • Hardware Revision: Rev 0B
  • Compatible with Compaq SFF desktop systems
  • Riser board only

Applications

Riser boards like this were used in compact Compaq desktop systems to enable installation of additional PCI expansion cards in space-constrained chassis. Typical applications included network adapters, SCSI controllers, graphics cards, and other legacy PCI peripherals in SFF business and industrial desktop configurations from the late 1990s through early 2000s.

Condition: Used
This Compaq 252298-001 SFF PCI Riser Board has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The board is clean with no cracked traces, broken connectors, or obvious physical damage visible. The PCI slot connectors are intact and the gold edge connector shows normal contact wear. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Compaq
Model:
252298-001
MPN:
252298-001
Secondary Model:
011248-001
Type:
PCI Riser Card / Backplane Board
SKU:
31893
Number of Expansion Slots:
2
Slot Type:
PCI
Form Factor:
Small Form Factor (SFF)
Assembly Number:
011248-001
Spare Part Number:
252298-001
Daughter Board Number:
DG#011249-000
Hardware Revision:
Rev 0B
Compatible With:
Compaq Small Form Factor (SFF) Desktop Systems
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
China
Seller Notes:
Riser board only. Pulled from a working Compaq SFF desktop system.
Condition Notes:
Compaq 252298-001 SFF PCI Riser Board in good used condition. Pulled from a working environment where it was in active use. Board is clean; PCI slots and edge connector intact. No visible damage.
