Compaq

Compaq 163355-001 PCI Server Feature Board ATI Rage IIc VGA Ethernet SCSI

(No reviews yet) Write a Review
SKU:
35814
MPN:
163355-001
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

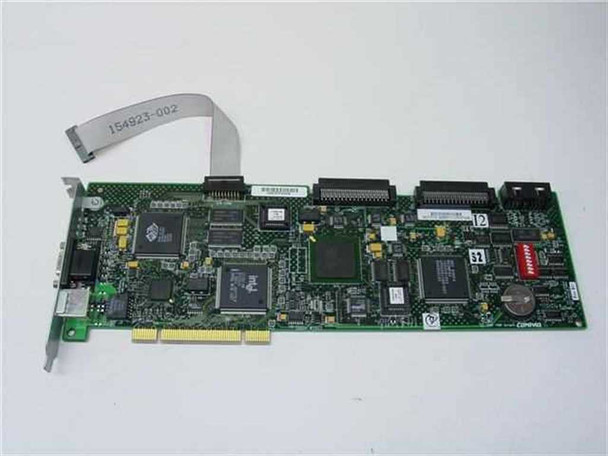

  • Compaq 163355-001 PCI Server Feature Board – full top-side view showing ATI Rage IIc GPU, SCSI connectors, and ribbon cable

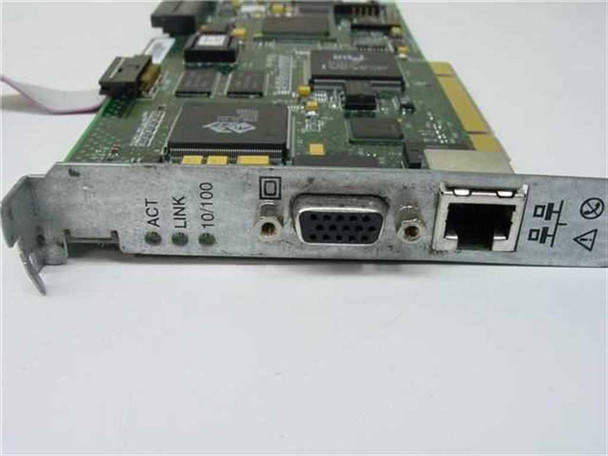

  • Compaq 163355-001 bracket detail showing VGA DB-15 port, RJ-45 Ethernet port, and ACT/LINK/10-100 LED indicators

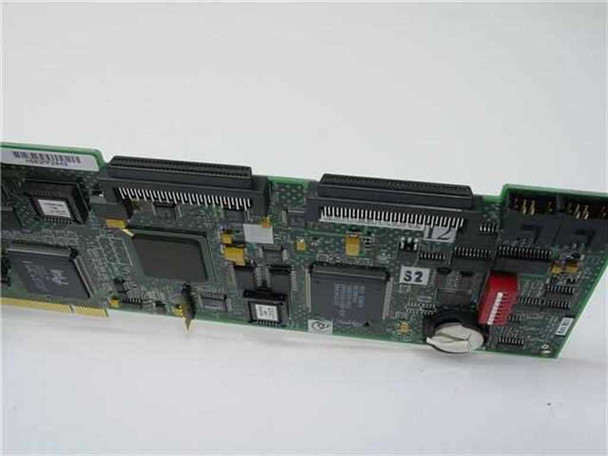

  • Compaq 163355-001 PCI Server Feature Board – angled top view showing SCSI headers, DIP switches, and main ICs
  • Compaq 163355-001 label close-up reading SP#163355-001, AS#143084-001, assembled in Malaysia, Rev0B
  • Compaq 163355-001 board close-up showing Rev B01 silkscreen, DIP switch bank, and board number 1395MB3257
  • Compaq 163355-001 close-up of ATI Rage IIc PCI chip marked 215R2PZUA21, BC489, 0003AA, Taiwan
$40.00
Was: $80.00
Current Stock: 1

Sold Out

Description

Compaq 163355-001 PCI Server Feature Board ATI Rage IIc VGA Ethernet SCSI

Multi-function PCI server board combining video, networking, and SCSI storage interfaces in a single card. Designed for Compaq ProLiant and enterprise server systems requiring consolidated I/O capabilities.

Specifications & What's Included

  • Model: 163355-001 (Rev B01) / Assembly 143084-001
  • Video: ATI Rage IIc chipset with VGA (DB-15) output
  • Network: 10/100 Mbps Ethernet (RJ-45) with ACT/LINK/speed LEDs
  • Storage: SCSI interface
  • Bus: PCI
  • Includes attached ribbon cable
  • Manufactured in Malaysia

Applications

This board type was used in Compaq ProLiant servers and compatible platforms to provide integrated VGA console output, network connectivity, and SCSI drive access on systems where multiple expansion slots were at a premium. Server administrators could consolidate three separate functions into one PCI slot, reducing card count and simplifying system configurations. Commonly deployed in 1U and 2U rack-mount servers during the late 1990s and early 2000s.

Condition: For Parts or Not Working
This Compaq 163355-001 PCI Server Feature Board is being sold as-is for parts or repair. It has not been tested and is not guaranteed to be functional. The board appears physically intact with no obviously broken components visible in the photos. The ribbon cable is still attached. Normal handling wear is present on the PCB and bracket. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Compaq
Model:
163355-001
MPN:
163355-001
Secondary Model:
143084-001
Type:
PCI Server Feature Board (VGA / Ethernet / SCSI)
SKU:
35814
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is for parts or repair; includes attached ribbon cable
Country/Region of Manufacture:
Malaysia
Hardware Revision:
Rev B01
Form Factor:
PCI Card
Bus Interface:
PCI
GPU / Video Chipset:
ATI Rage IIc PCI (215R2PZUA21)
Video Output:
VGA (DB-15)
Network Interface:
10/100 Ethernet (RJ-45)
Network Indicators:
ACT, LINK, 10/100 LEDs on bracket
Storage Interface:
SCSI
Compatible With:
Compaq ProLiant and Compaq server platforms
Assembly Number:
AS#143084-001
Board Silkscreen:
1395MB3257 / 6050013257D0
Condition Notes:
Compaq 163355-001 PCI Server Feature Board sold as-is for parts or repair. Not tested, no functionality guaranteed. Board appears physically intact; ribbon cable present. Normal wear visible.
