Chesapeake inst. Corp

Chesapeake Inst. Corp 4547-4 Bandpass Filter 1.2-2.4 KHz FR4PX22YY Military

(No reviews yet) Write a Review
SKU:
47954
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Chesapeake Inst. Corp 4547-4 bandpass filter — label side showing part number, FC range 1.2–2.4 KHz, and MFR reference

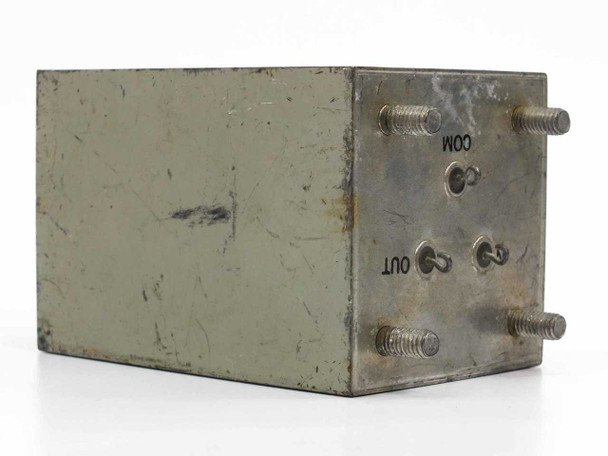

  • Chesapeake Inst. Corp 4547-4 bandpass filter — side panel with COM and OUT threaded stud terminals
  • Chesapeake Inst. Corp 4547-4 bandpass filter — close-up of label showing PT. NO. 4547-4, FR4PX22YY, and frequency specs

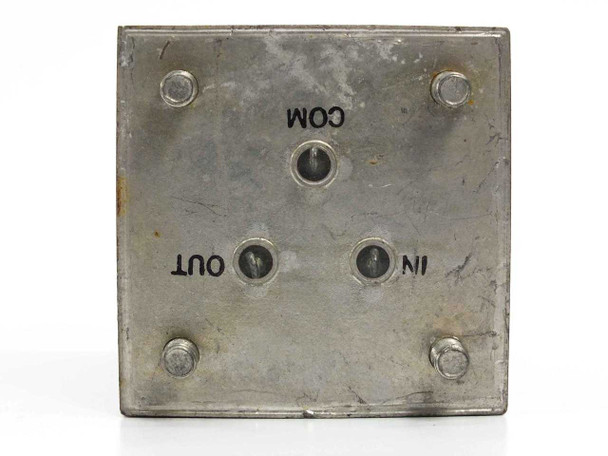

  • Chesapeake Inst. Corp 4547-4 bandpass filter — terminal face showing COM, OUT, and IN stud connections with mounting bolt holes
  • Chesapeake Inst. Corp 4547-4 bandpass filter — opposite side panel showing two threaded stud terminals
$120.00
Was: $250.00
Current Stock: 1

Sold Out

Description

Chesapeake Inst. Corp 4547-4 Bandpass Filter 1.2-2.4 KHz FR4PX22YY Military

Passive bandpass filter designed to isolate and pass signals within a 1.2–2.4 kHz frequency range. Housed in an enclosed metal module with threaded stud terminals for direct circuit integration.

Specifications & What's Included

  • Manufacturer: Chesapeake Instrument Corporation
  • Model: 4547-4 / FR4PX22YY
  • Military Reference: 56662-SA-8684-373
  • Filter Type: Passive Bandpass
  • Frequency Range: 1.2–2.4 kHz
  • Connectors: Threaded stud terminals (COM, IN, OUT)
  • Unit only; no accessories included

Applications

Bandpass filters in this frequency range were commonly used in military communications, sonar systems, and audio signal conditioning. The low-frequency passband suits underwater acoustic applications, subsonic monitoring, and specialized telecom networks. Typical deployment in fire control systems, sensor processing equipment, and defense electronics where frequency selectivity in the very-low-frequency band is required.

Condition: Used
This Chesapeake Instrument Corp 4547-4 bandpass filter is in used condition. The metal enclosure shows general surface wear consistent with age and prior service use, including scuffing, light scratches, and minor oxidation on the housing — typical for surplus military-specification components of this era. The label is present and legible. The threaded stud terminals (COM, IN, OUT) appear intact. This unit has not been powered or bench-tested at our facility. It is being sold as inspected surplus. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Chesapeake Instrument Corporation
Model:
4547-4
MPN:
4547-4
Secondary Model:
FR4PX22YY
Military Reference Number:
56662-SA-8684-373
Type:
Bandpass Filter
SKU:
47954
Frequency Range (FC):
1.2 – 2.4 KHz
F3 (Lower Cutoff):
1.2 KHz
F4 (Upper Cutoff):
2.4 KHz
Filter Class:
Passive Bandpass
Connector Type:
Threaded stud terminals (COM, IN, OUT)
Form Factor:
Enclosed Metal Module
Condition:
Used – Inspected
Seller Notes:
Unit only; no additional accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
Chesapeake Inst. Corp 4547-4 bandpass filter in used condition. Enclosure shows surface wear, scuffing, and minor oxidation typical of surplus military components. Label intact and legible. Not bench-tested at our facility. Sold as inspected surplus.
View AllClose

Related Products

Related Products

Wireless Technologies Corp W442F AMPS B Band Filter 835-849 MHz – top angled view showing black aluminum body and label, SMA connector visible on right end Wireless Technologies W442F RF Bandpass Filter – bottom angled view showing underside and SMA connector port on right end
Add to Cart
Quick view

Wireless Technologies Corp W442F AMPS B Band Filter 835-849 MHz RF Bandpass

Wireless Technologies

$40.00
Was: $80.00
Wireless Technologies Corp W442F AMPS B Band Filter 835-849 MHz RF BandpassThe Wireless Technologies Corp W442F is a cavity-style RF bandpass filter designed for the AMPS B Band transmit frequency...
19452
SKU:
19452
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Brand:
Wireless Technologies Corp
Model:
W442F
MPN:
W442F
Type:
RF Bandpass Filter
SKU:
19452
Frequency Range:
835-849 MHz
Filter Band:
AMPS B Band
Application:
AMPS Cellular Transmit Band
Connector Type:
SMA
Form Factor:
Inline Module / Cavity Filter
Condition:
Used – Inspected
Seller Notes:
Unit only, no additional accessories included
Condition Notes:
Wireless Technologies W442F AMPS B Band Filter 835-849 MHz. Inspected and in good used condition. Minor surface scuffing on housing; SMA connector intact. No cracks or damage noted.
Ealing Corp 35-3961 dielectric bandpass filter in original plastic clamshell storage case, closed, with handwritten label showing part number and specs Ealing Corp 35-3961 deep red bandpass filter removed from case and sitting in open blue-foam clamshell case, red filter element visible
Add to Cart
Quick view

Ealing Corp 35-3961 Bandpass Filter 649.6nm Deep Red 10.6nm FWHM 59%T

Ealing Corp

$50.00
Was: $100.00
Ealing Corp 35-3961 Bandpass Filter 649.6nm Deep Red 10.6nm FWHM 59%TDielectric bandpass filter designed to isolate deep red wavelengths at 649.6nm. Passes a narrow spectral band of 10.6nm with 59%...
27329
SKU:
27329
Availability:
Usually ships within 1–2 business days.
Weight:
2.00 LBS
Brand:
Ealing Corp
Model:
35-3961
MPN:
35-3961-5
Type:
Dielectric Bandpass Filter
SKU:
27329
Center Wavelength:
649.6 nm
Bandwidth (FWHM):
10.6 nm
Peak Transmission:
59%
Spectral Region:
Deep Red / Visible
Filter Construction:
Dielectric (Interference)
Substrate / Mount:
Black anodized ring mount
Date of Manufacture:
March 9, 1984
QC Instrument:
Cary 14 spectrophotometer
Condition:
Used – Inspected, Good Condition
Seller Notes:
Includes original Ealing Corp factory QC test chart dated 3/9/84
Country/Region of Manufacture:
United States
Application:
Spectroscopy, fluorescence, laser line isolation, photometry
Compatible With:
Spectrophotometers, fluorimeters, optical benches, laser systems
Condition Notes:
Ealing Corp 35-3961 649.6nm deep red bandpass filter inspected and in good condition. Filter element clean, no visible damage. Includes original clamshell case and factory QC test chart dated 3/9/84. Under 250 chars.

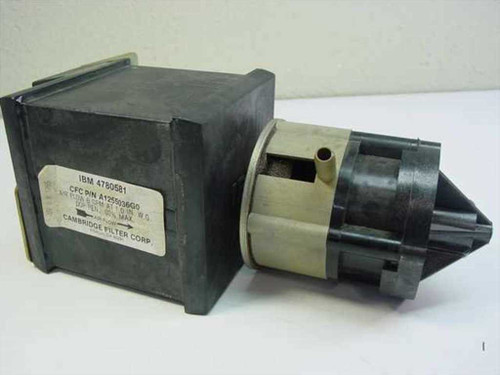

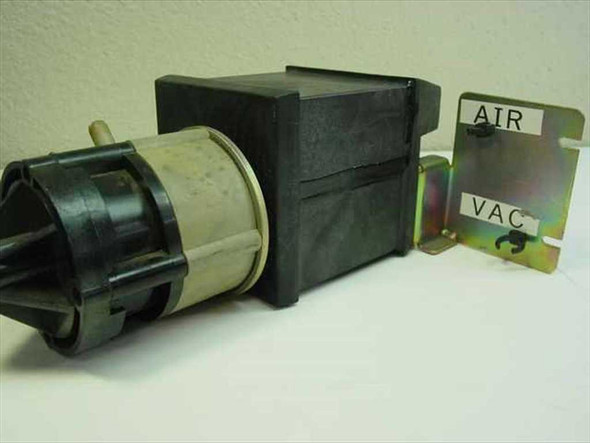

Cambridge Filter Corp A1255036G0 IBM 4780581 air filter – front-left view showing black housing and cylindrical filter element with label Cambridge Filter Corp A1255036G0 IBM 4780581 air filter – rear-left view showing filter element and included metal mounting bracket with AIR and VAC label tabs
