Channel Microwave

Channel Microwave AU323-5 Omni Directional Antenna Custom Round Enclosure RF

(No reviews yet) Write a Review
SKU:
35712
MPN:
AU323-5
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
34.00 LBS
Shipping:
Calculated at Checkout

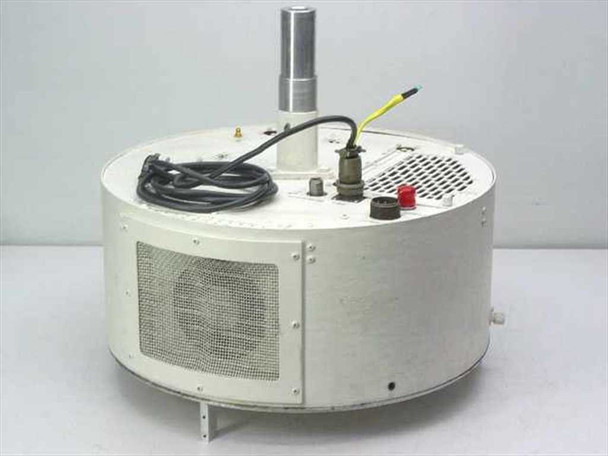

  • Channel Microwave AU323-5 antenna in custom round white cylindrical enclosure – front-left view showing mesh vent, top antenna stub, and attached cabling
  • Channel Microwave AU323-5 custom round antenna enclosure – rear-right view showing ventilation grille, switch control panel connectors, and top antenna post
  • Channel Microwave Corporation AU323-5 model label closeup showing model number and serial number 105

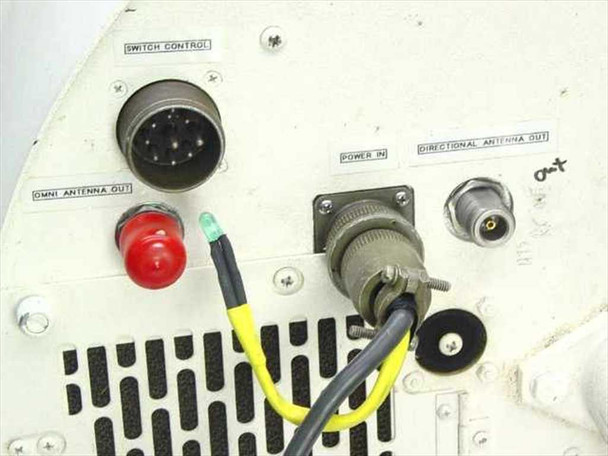

  • AU323-5 antenna enclosure top panel closeup showing Switch Control circular connector, Power In connector, Omni Antenna Out port, Directional Antenna Out port, red indicator, and green LED

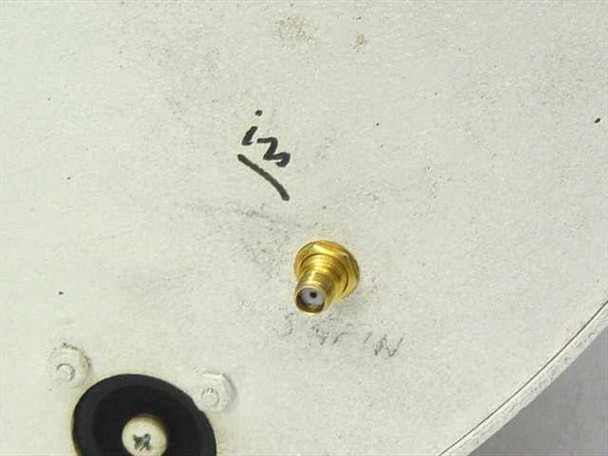

  • AU323-5 enclosure bottom panel showing SMA connector labeled SAT IN with handwritten markings
  • Interior view of AU323-5 antenna enclosure showing motor-driven RF antenna assembly, blower, RF module housing, and internal wiring harness
  • Veeder-Root Quartz hour meter inside AU323-5 enclosure reading approximately 4099.4 total hours
$350.00
Was: $700.00
Current Stock: 1

Sold Out

Description

Channel Microwave AU323-5 Omni Directional Antenna Custom Round Enclosure RF

Motor-driven RF antenna assembly housed in a custom round cylindrical enclosure. Provides both omnidirectional and directional antenna outputs with internal blower cooling and logged operating hours via Veeder-Root meter.

Specifications & What's Included

  • Model: AU323-5 | Manufacturer: Channel Microwave Corporation
  • Antenna Outputs: Omni and Directional
  • Connectors: SMA, TNC/SMA, Military Circular (MIL-spec)
  • Labeled Ports: Omni Antenna Out, Directional Antenna Out, Power In, Switch Control
  • Internal Components: Motor-driven antenna assembly, RF module, blower, wiring harness
  • Hour Meter: Veedor-Root Quartz (~4,099 logged hours)
  • Includes attached power and control cabling

Applications

Channel Microwave antenna assemblies were used in commercial and industrial microwave communication systems, particularly in point-to-point and point-to-multipoint RF network installations. The dual antenna output configuration supported systems requiring both omnidirectional coverage and directional gain capabilities, common in telecom infrastructure and wireless backbone networks from the 1990s through 2010s.

Condition: Used
This Channel Microwave AU323-5 antenna assembly has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in active use. The white cylindrical enclosure shows normal surface scuffing and light soiling consistent with field use. The internal motor-driven antenna assembly, blower, and RF module are all present and appear intact. A Veeder-Root Quartz hour meter inside the enclosure reads approximately 4099.4 total hours of logged operation. All labeled connectors are present — Omni Antenna Out, Directional Antenna Out, Power In, and Switch Control — and the attached power and control cabling is included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Channel Microwave Corporation
Model:
AU323-5
MPN:
AU323-5
SKU:
35712
Type:
RF Antenna Assembly in Custom Enclosure
Antenna Output Types:
Omni Antenna Out, Directional Antenna Out
Enclosure Style:
Custom Round Cylindrical Enclosure
Connector Types:
SMA, Military Circular (MIL-spec), TNC/SMA
Labeled Ports:
Omni Antenna Out, Directional Antenna Out, Power In, Switch Control
Cooling:
Internal blower / cooling fan
Hour Meter:
Veeder-Root Quartz hour meter, reads approx. 4099.4 hours
Internal Components:
Motor-driven antenna assembly, RF module, blower, wiring harness
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes attached power/control cabling. Unit has ~4099 logged operating hours.
Country/Region of Manufacture:
United States
Condition Notes:
Channel Microwave AU323-5 antenna in custom round enclosure. Inspected, good used condition; pulled from a working environment. ~4099 logged hours per internal Veeder-Root meter. All connectors and cabling present.
View AllClose
