Channel Microwave AU323-5 Coaxial Isolator 800-900 MHz 23dB 1W SMA Female

(No reviews yet) Write a Review
SKU:
19256
MPN:
AU323-5
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout

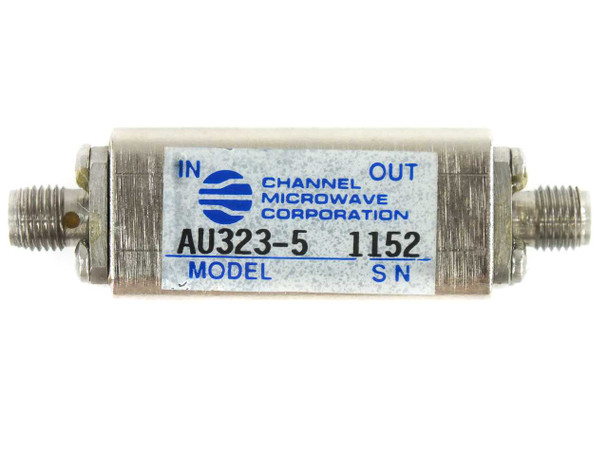

  • Channel Microwave AU323-5 coaxial isolator top label view showing model number and IN/OUT SMA connectors
  • Channel Microwave AU323-5 coaxial isolator angled three-quarter view showing machined metal housing and SMA female port
  • Channel Microwave AU323-5 coaxial isolator side view showing SMA female output connector and screw fasteners
  • Channel Microwave AU323-5 coaxial isolator front view with label showing model AU323-5 and serial number 1152
  • Channel Microwave AU323-5 coaxial isolator factory outline drawing showing dimensions and specifications including 800-900 MHz frequency range
$40.00
Was: $80.00
Current Stock: 112

Sold Out

Description

Channel Microwave AU323-5 Coaxial Isolator 800-900 MHz 23dB 1W SMA Female

A coaxial isolator that provides unidirectional signal transmission in the 800-900 MHz band. Prevents reflected power from damaging sensitive RF components by isolating forward and reverse signal paths.

Specifications & What's Included

  • Frequency Range: 800-900 MHz
  • Isolation: 23 dB Minimum
  • Insertion Loss: 0.4 dB Maximum
  • VSWR: 1.15:1 Maximum
  • RF Power: 1 Watt CW
  • Connectors: SMA Female (x2)
  • Operating Temperature: -25°C to +85°C
  • Unit only; no accessories included

Applications

Used in cellular base stations, RF amplifier circuits, and microwave test equipment from the 1990s-2010s. Commonly found in GSM, PCS, and early mobile infrastructure where protection of transmit amplifiers from load mismatch and reflected power was required. Operates in bands used by legacy cellular systems and industrial RF applications.

Condition: Used
This Channel Microwave AU323-5 coaxial isolator has been inspected and is in good used condition. The machined metal housing shows light surface scuffing and minor wear consistent with prior use, but is structurally intact with no damage to the body or connectors. Both SMA female ports are clean and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Channel Microwave Corporation
Model:
AU323-5
MPN:
AU323-5
Type:
Coaxial Isolator
SKU:
19256
Frequency Range:
800-900 MHz
Isolation:
23 dB Minimum
Insertion Loss:
0.4 dB Maximum
VSWR:
1.15:1 Maximum
RF Power:
1 Watt CW
Connector Type:
SMA Female (x2)
Number of Ports:
2
Operating Temperature:
-25°C to +85°C
Form Factor:
Surface/Bench Mount Module
Termination:
1 Watt Internal
Condition:
Used – Inspected and in Good Condition
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; no accessories included.
Condition Notes:
Channel Microwave AU323-5 coaxial isolator inspected and in good used condition. Housing shows light surface scuffing; SMA female connectors are clean and undamaged.
View AllClose

Related Products

Related Products

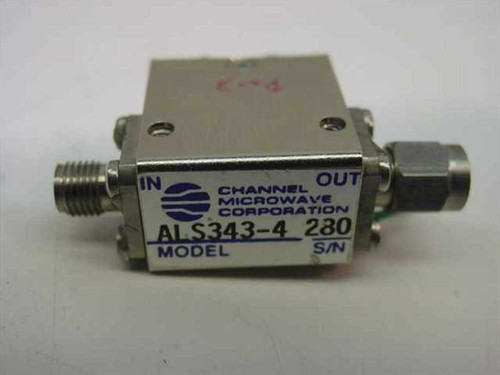

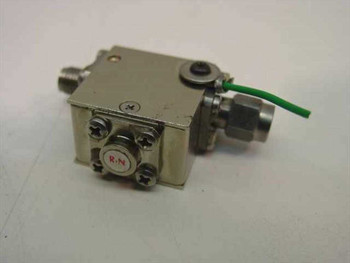

Channel Microwave Corporation ALS343-4 Coaxial Isolator – front label view showing model number, IN/OUT ports, and S/N 280 Channel Microwave ALS343-4 Coaxial Isolator – rear/side view showing SMA connectors, ferrite assembly, and green grounding wire
