Description

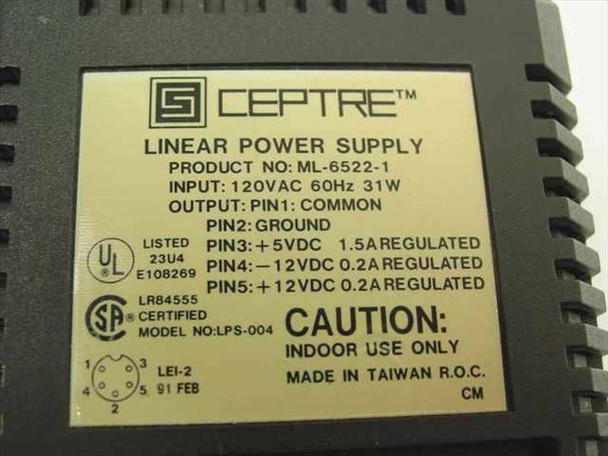

Ceptre ML-6522-1 Linear Power Supply 5-Pin DIN 31W +5V +12V -12V DC
Linear desktop power supply providing multiple regulated DC outputs from 120VAC, 60Hz input. Supplies +5V, +12V, and -12V DC via 5-pin DIN connector.
Specifications & What's Included
- Model: ML-6522-1 (Secondary: LPS-004)
- Input: 120VAC, 60Hz, 31W
- Outputs: +5VDC @ 1.5A, +12VDC @ 0.2A, -12VDC @ 0.2A (all regulated)
- Connector: 5-pin DIN (Pin1: Common, Pin2: GND, Pin3: +5V, Pin4: -12V, Pin5: +12V)
- Certifications: UL Listed, CSA Certified
- Includes AC power cord and 5-pin DIN output cable
Applications
This supply type was commonly used in telecommunications equipment, industrial control systems, and legacy computer peripherals requiring multiple voltage rails. The regulated outputs supported networking devices, telecommunications switching equipment, and industrial instrumentation from the 1980s–2000s. The 5-pin DIN connector was standard across many telecom and industrial platforms of that era.
Condition: Used
This Ceptre ML-6522-1 Linear Power Supply has been inspected and is in good used condition. It was pulled from a working environment where it was in use. The unit shows normal cosmetic wear consistent with prior use. The black housing is intact, and both the AC power cord and the 5-pin DIN output cable are present and in good shape. Please view our photos and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Ceptre ML-6522-1 Linear Power Supply has been inspected and is in good used condition. It was pulled from a working environment where it was in use. The unit shows normal cosmetic wear consistent with prior use. The black housing is intact, and both the AC power cord and the 5-pin DIN output cable are present and in good shape. Please view our photos and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Ceptre |
Model: |
ML-6522-1 |
MPN: |
ML-6522-1 |
Secondary Model: |
LPS-004 |
SKU: |
24301 |
Type: |
Linear Power Supply |
Input Voltage: |
120VAC, 60Hz |
Input Power: |
31W |
Output Voltage 1: |
+5VDC |
Output Current 1: |
1.5A Regulated |
Output Voltage 2: |
+12VDC |
Output Current 2: |
0.2A Regulated |
Output Voltage 3: |
-12VDC |
Output Current 3: |
0.2A Regulated |
Output Connector: |
5-Pin DIN (Round) |
Pin Assignment: |
Pin1:Common Pin2:GND Pin3:+5V Pin4:-12V Pin5:+12V |
Regulation: |
Regulated |
Certifications: |
UL Listed (23U4, E108269), CSA Certified (LR84555) |
Country/Region of Manufacture: |
Taiwan |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes AC power cord and 5-pin DIN output cable |
Form Factor: |
External / Desktop Brick |
Condition Notes: |
Ceptre ML-6522-1 Linear Power Supply. Inspected, in good used condition. Pulled from a working environment. Includes AC cord and 5-pin DIN cable. Normal cosmetic wear. Contact us with questions. |
