Data Comm for Business 9501008 DC Output Supply 70W 120VAC +5V +12V -12V DIN

(No reviews yet) Write a Review
SKU:
18239
MPN:
9501008
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout
  • Data Comm for Business 9501008 DC Output Supply – front-left view showing black enclosure, AC input cord, and DIN output cable

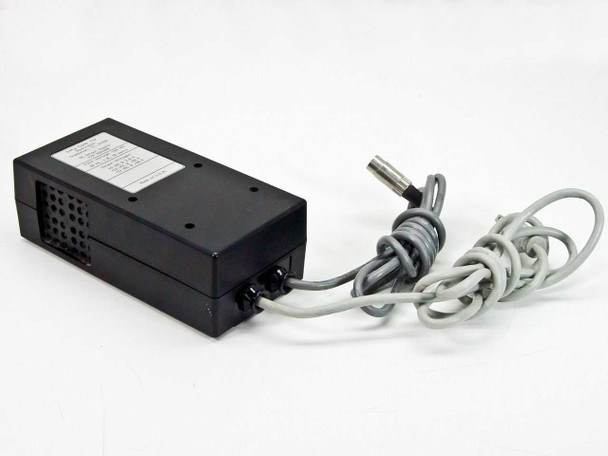

  • Data Comm for Business 9501008 DC Output Supply – rear-right view showing ventilation slots and 5-pin DIN output connector end

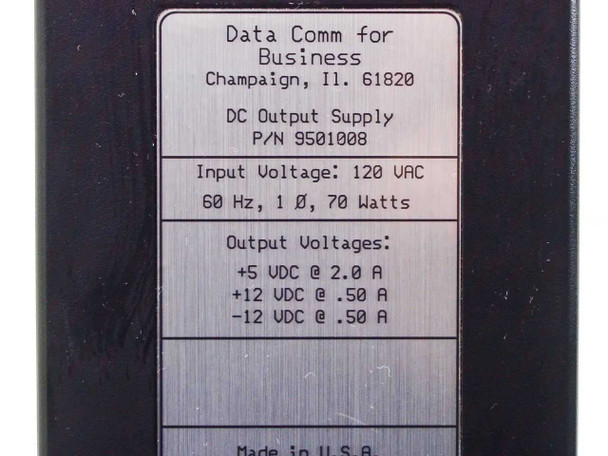

  • Data Comm for Business 9501008 rating plate label showing 120VAC 60Hz 70W input and +5V +12V -12V DC output specs
  • Data Comm for Business 9501008 DC Output Supply – close-up of 5-pin DIN male output connector on cable end
$35.00
Was: $70.00
Current Stock: 1

Sold Out

Description

Data Comm for Business 9501008 DC Output Supply 70W 120VAC +5V +12V -12V DIN

External DC power supply providing regulated output for industrial and telecommunications equipment. Converts standard 120VAC single-phase input to three regulated DC voltage outputs via 5-pin DIN connector.

Specifications & What's Included

  • Model: 9501008
  • Input: 120 VAC, 60 Hz, single phase (NEMA 5-15 connector)
  • Output: +5 VDC @ 2.0 A, +12 VDC @ 0.50 A, -12 VDC @ 0.50 A
  • Power Rating: 70 Watts
  • Output Connector: 5-pin DIN (male)
  • Form Factor: External brick/desktop
  • Includes: AC input cord and 5-pin DIN output cable

Applications

Used in telecommunications installations, data networking equipment, industrial control systems, and legacy electronic devices requiring multi-voltage DC supplies. The three-voltage output configuration was common in telecom infrastructure, network equipment, and industrial automation from the 1980s through early 2000s. Operates from standard wall outlet power.

Condition: Used
This Data Comm for Business 9501008 DC Output Supply has been inspected and is in good used condition. The enclosure is intact with no cracks or significant damage. The attached AC input cord and 5-pin DIN output cable are both present and show normal handling wear. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Data Comm for Business
Model:
9501008
MPN:
9501008
Type:
DC Output Power Supply
SKU:
18239
Input Voltage:
120 VAC
Input Frequency:
60 Hz
Phase:
Single Phase (1Ø)
Power Rating:
70 Watts
Output Voltage 1:
+5 VDC @ 2.0 A
Output Voltage 2:
+12 VDC @ 0.50 A
Output Voltage 3:
-12 VDC @ 0.50 A
Number of Outputs:
3
Output Connector:
5-Pin DIN (male)
Input Connector:
NEMA 5-15 (standard US 3-prong)
Form Factor:
External Brick / Desktop
Country/Region of Manufacture:
United States
Condition:
Used – Inspected, Good Condition
Seller Notes:
Includes attached AC input cord and 5-pin DIN output cable.
Condition Notes:
Data Comm for Business 9501008 DC Output Supply. Inspected and in good used condition. Enclosure intact, AC cord and DIN output cable present. Normal wear. Contact us with any questions.
View AllClose
