Ceptre ML-6522-1 Linear Power Supply 5-Pin DIN 31W +5V +12V -12V DC

Sceptre

SKU:

24301

Availability:

Usually ships within 1–2 business days.

Weight:

3.00 LBS

Brand:

Ceptre

Model:

ML-6522-1

MPN:

ML-6522-1

Secondary Model:

LPS-004

SKU:

24301

Type:

Linear Power Supply

Input Voltage:

120VAC, 60Hz

Input Power:

31W

Output Voltage 1:

+5VDC

Output Current 1:

1.5A Regulated

Output Voltage 2:

+12VDC

Output Current 2:

0.2A Regulated

Output Voltage 3:

-12VDC

Output Current 3:

0.2A Regulated

Output Connector:

5-Pin DIN (Round)

Pin Assignment:

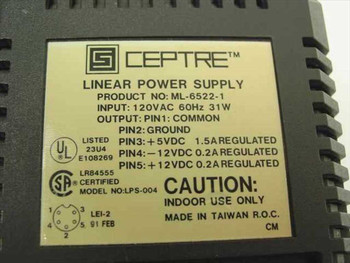

Pin1:Common Pin2:GND Pin3:+5V Pin4:-12V Pin5:+12V

Regulation:

Regulated

Certifications:

UL Listed (23U4, E108269), CSA Certified (LR84555)

Country/Region of Manufacture:

Taiwan

Condition:

Used – Pulled from Working Environment

Seller Notes:

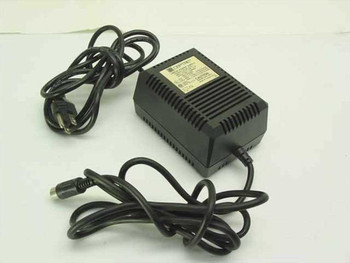

Includes AC power cord and 5-pin DIN output cable

Form Factor:

External / Desktop Brick

Condition Notes:

Ceptre ML-6522-1 Linear Power Supply. Inspected, in good used condition. Pulled from a working environment. Includes AC cord and 5-pin DIN cable. Normal cosmetic wear. Contact us with questions.
