Description
Catel PS-2500B Power Supply for Video Modulator +12.6V -15V DC 110-250VAC
The Catel PS-2500B is a compact dual-output DC power supply designed to power Catel video modulator equipment. It provides two regulated DC output voltages — +12.6V and -15V — through front-panel banana jacks, and accepts a wide-range AC input (110–250VAC) making it compatible with both North American and international mains power. The unit was manufactured by Catel in Santa Clara, California.
Specifications & What's Included
- Model: Catel PS-2500B
- Input: 110–125VAC at 0.5A / 220–250VAC at 0.25A
- Input Frequency: 48–62 Hz
- Output 1: +12.6V DC (red banana jack)
- Output 2: -15V DC (purple banana jack)
- Ground: GND banana jack (black)

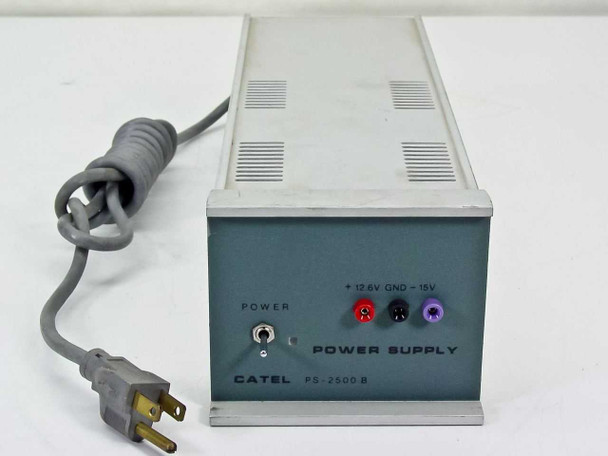

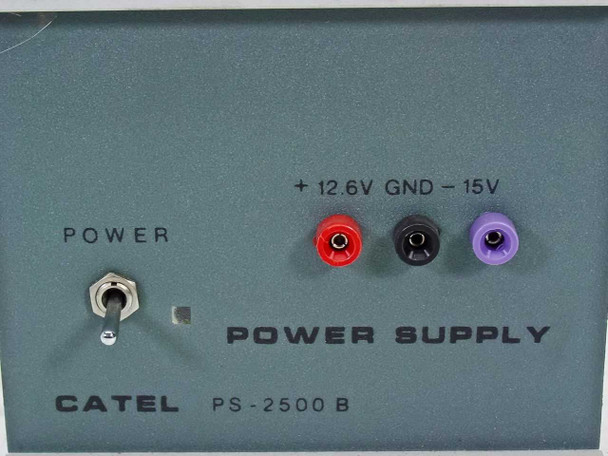

- Front panel: POWER toggle switch, three banana jack outputs

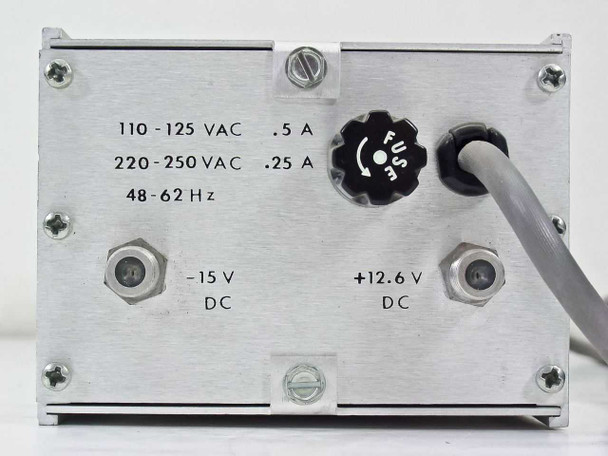

- Rear panel: fuse holder, -15V DC and +12.6V DC binding post outputs, AC line cord
- AC input cord: attached, NEMA 5-15P plug (standard US/grounded)
- Form factor: desktop/benchtop enclosure

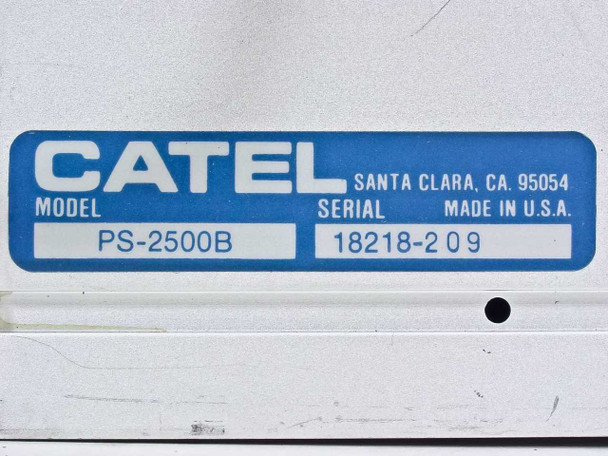

- Made in USA (Santa Clara, CA)
- Includes: unit with attached AC line cord only
Applications
The PS-2500B was designed as a dedicated power supply for Catel video modulator systems — equipment used in cable television headends and distribution systems to convert baseband video and audio signals into RF channels for transmission over coaxial cable networks. This type of dedicated power supply provides the specific dual-polarity voltages (+12.6V / -15V) that the associated modulator electronics require, keeping the RF signal chain cleanly powered without relying on a shared or generic supply. Catel was a Santa Clara-based manufacturer active in the cable TV equipment market primarily in the 1970s through 1990s, and their modulator and headend products were widely deployed in community antenna and early cable systems across the United States. Replacement or spare power supplies like the PS-2500B remain useful to operators maintaining legacy cable headend equipment still in service, as well as to collectors and technicians working with vintage CATV systems.
This Catel PS-2500B Video Modulator Power Supply has been inspected and appears to be in good used condition. The enclosure is clean with minor scuffing consistent with normal bench or rack use. The front panel toggle switch and banana jack outputs (+12.6V, GND, -15V) are intact and show no damage. The rating label on the rear is fully legible, and the attached AC line cord is present and undamaged. This unit was pulled from a working environment. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Catel |
Model: |
PS-2500B |
MPN: |
PS-2500B |
SKU: |
9991 |
Type: |
Dual-Output DC Power Supply |
Input Voltage: |
110–125VAC @ 0.5A; 220–250VAC @ 0.25A |
Input Frequency: |
48–62 Hz |
Output Voltage: |
+12.6V DC and -15V DC |
Number of Outputs: |
2 |
Output Connectors: |
Banana jacks (red +12.6V, black GND, purple -15V) |
Input Connector: |
Standard AC line cord (NEMA 5-15P) |
Compatible With: |
Catel Video Modulators |
Form Factor: |
Desktop / Benchtop |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; includes attached AC line cord. |
Condition Notes: |
Catel PS-2500B Power Supply inspected and in good used condition. Minor scuffing on enclosure; all outputs and switch intact. Attached AC cord included. Pulled from a working environment. Contact us with any questions. |
