Description
Avantek PS-110-004 120VAC DC Output Outdoor Enclosure Power Supply Satcom

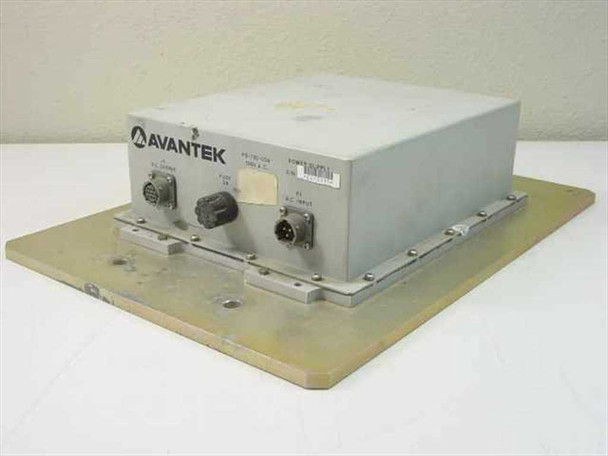

The Avantek PS-110-004 is a ruggedized outdoor-rated power supply that converts 120V AC mains power to a regulated DC output, housed in a sealed metal enclosure mounted to a gold-anodized aluminum baseplate. Both the AC input and DC output connections are made through mil-spec circular connectors, making this unit well suited to fixed outdoor installations where weatherproofing and secure connector retention matter. Avantek designed this supply for use in satellite communications ground equipment and similar RF system infrastructure.
Specifications & What's Included
- Model: PS-110-004
- Manufacturer: Avantek

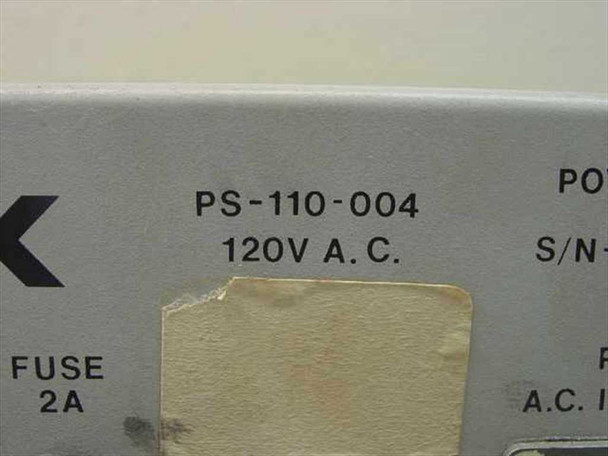

- Input voltage: 120V AC (labeled 120V A.C. on panel)
- Output: DC — delivered via J1 multi-pin circular mil-spec connector

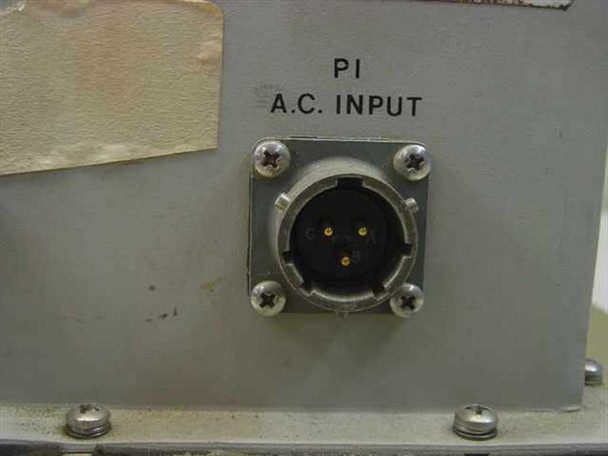

- AC input connector: P1 — 3-pin circular mil-spec connector

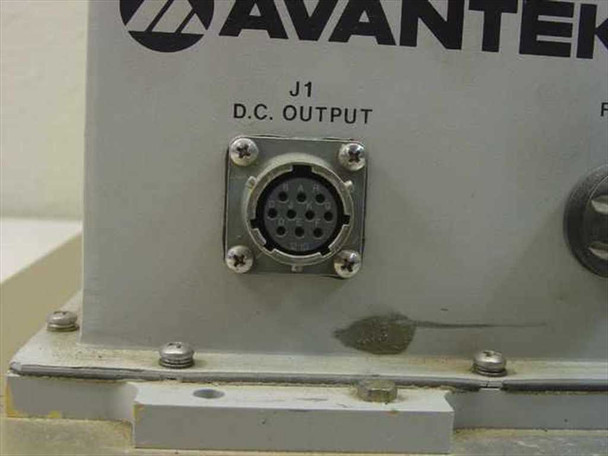

- DC output connector: J1 — multi-pin circular mil-spec connector

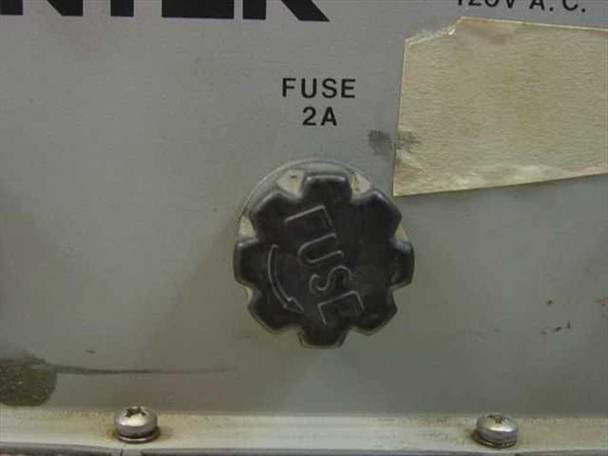

- Fuse: 2A (knurled panel-mount fuse holder)

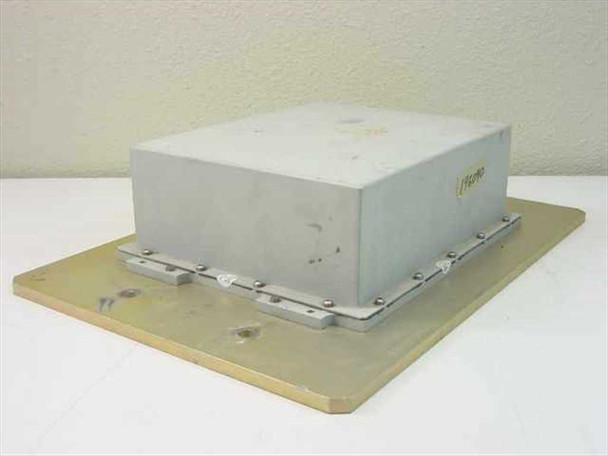

- Enclosure: sealed gray painted metal housing
- Mounting: bolted to gold-anodized aluminum baseplate for surface or rack installation
- Included: power supply unit with baseplate as shown
Applications
Avantek was a prominent US manufacturer of microwave and RF components, amplifiers, and subsystems, particularly for satellite communications and defense applications from the 1970s through the 1990s. The PS-110-004 is the type of dedicated power supply used to energize amplifier modules, LNBs, block downconverters, or RF electronics in a satellite ground station or antenna pedestal — environments where a sealed, weatherproof enclosure and secure locking connectors are required rather than standard open-frame or chassis-mount supplies. The mil-spec circular connectors are characteristic of ground-based satcom and government/defense installations of this era. These supplies are typically sought as replacement units for existing Avantek-equipped ground stations, antenna arrays, or RF shelter installations where the original supply has failed and a matching unit is needed.
This Avantek PS-110-004 outdoor enclosure power supply has been inspected and is in good used condition. The sealed metal enclosure and baseplate show typical wear consistent with prior field or equipment-bay use, including light surface marks on the enclosure and some label residue visible near the model plate. Both mil-spec circular connectors — the AC input (P1) and DC output (J1) — are present and appear intact. The unit has not been powered up or tested at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Avantek |
Model: |
PS-110-004 |
MPN: |
PS-110-004 |
SKU: |
32001 |
Type: |
Outdoor Enclosure DC Power Supply |
Input Voltage: |
120V AC |
Output Type: |
DC (multi-pin circular connector, J1) |
AC Input Connector: |
Circular mil-spec connector (P1, A.C. Input) |
DC Output Connector: |
Circular mil-spec connector (J1, D.C. Output) |
Fuse Rating: |
2A |
Enclosure Type: |
Sealed metal outdoor enclosure |
Mounting: |
Baseplate / surface mount |
Application: |
Satellite communications (Satcom) ground equipment |
Condition: |
Used – Inspected |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Avantek PS-110-004 outdoor DC power supply. Inspected and in good used condition. Enclosure and baseplate show typical field wear; both circular mil-spec connectors intact. Not powered or tested at our facility. |
