Catel PS-2500A Power Supply for Video Modulator +12.6V -15V 110-250VAC

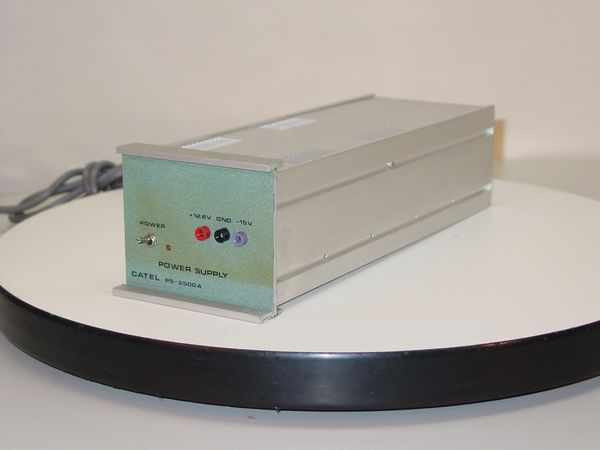

The Catel PS-2500A is a compact benchtop power supply designed to power Catel video modulator equipment used in cable television and broadcast applications. It accepts either 110-125VAC or 220-250VAC input and delivers regulated +12.6V and -15V DC outputs via front-panel banana jacks and rear coaxial DC connectors.
Specifications & What's Included
- Brand: Catel
- Model: PS-2500A
- Input Voltage: 110–125 VAC at 0.5A, or 220–250 VAC at 0.25A (selectable)
- Input Frequency: 48–62 Hz
- Output Voltage 1: +12.6V DC (rear coaxial DC jack and front red banana jack)
- Output Voltage 2: -15V DC (rear coaxial DC jack and front purple banana jack)

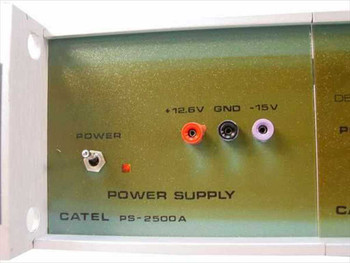

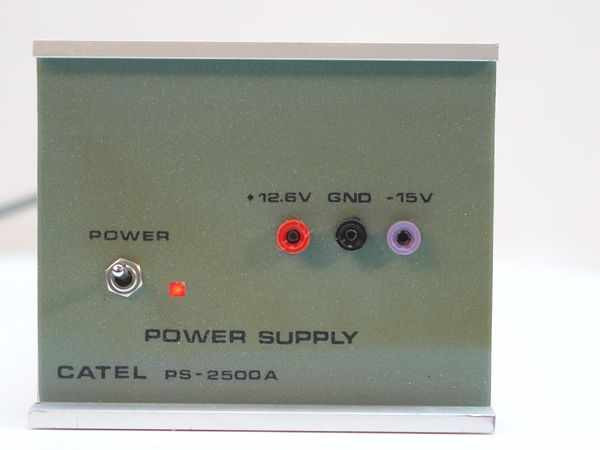

- Front panel: toggle power switch, red power-on LED indicator, +12.6V / GND / -15V banana jacks
- Rear panel: voltage selector switch, -15V DC and 12.6V DC coaxial output jacks, AC power cord (hardwired, gray)
- Form factor: benchtop/desktop, aluminum enclosure
- Intended for use with Catel video modulator systems
Applications
The PS-2500A was made by Catel specifically to power their line of video modulator equipment used in cable TV headend and broadcast distribution systems. Video modulators in cable plant headends convert baseband audio and video signals onto specific RF channels for distribution across a cable system. The PS-2500A provides the dual-voltage DC supply (+12.6V and -15V) that these modulators require. Equipment of this type was standard in cable television headend rooms from the 1970s through the 1990s. Today, PS-2500A units are primarily of interest to technicians maintaining legacy Catel modulator installations or sourcing working components for repair.
This Catel PS-2500A Video Modulator Power Supply is being sold AS-IS for parts or repair. It is not guaranteed to be functional and has not been tested at our facility. The aluminum enclosure shows light surface wear consistent with prior use. The front panel, banana jacks, and rear DC output connectors appear intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Catel |
Model: |
PS-2500A |
MPN: |
PS-2500A |
Type: |
External Power Supply |
SKU: |
9386 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold AS-IS for parts or repair. No functionality guarantee. |
Application: |
Catel Video Modulator — Cable / Broadcast TV |
Input Voltage: |
110-125 VAC / 0.5A or 220-250 VAC / 0.25A |
Input Frequency: |
48-62 Hz |
Output Voltage 1: |
+12.6V DC |
Output Voltage 2: |
-15V DC |
Output Connectors: |
Banana jacks: +12.6V (red), GND (black), -15V (purple) |
Rear DC Connectors: |
Coaxial DC jacks: -15V DC and 12.6V DC |
Power Switch: |
Toggle switch with power-on LED indicator |
Form Factor: |
Benchtop / Desktop |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Catel PS-2500A Video Modulator Power Supply sold AS-IS for parts or repair. Not tested, not guaranteed functional. Enclosure shows light use wear. Connectors appear intact. |
