C-COR Electronics ASM-16A Antenna Site Mixer 16-Channel Rackmount CATV RF
16-channel antenna site mixer designed for CATV headend signal combining and RF distribution. Combines multiple RF signals into a single output trunk with adjustable attenuation.
Specifications & What's Included
- 16 channels, rack-mount form factor
- F-type threaded coaxial connectors throughout

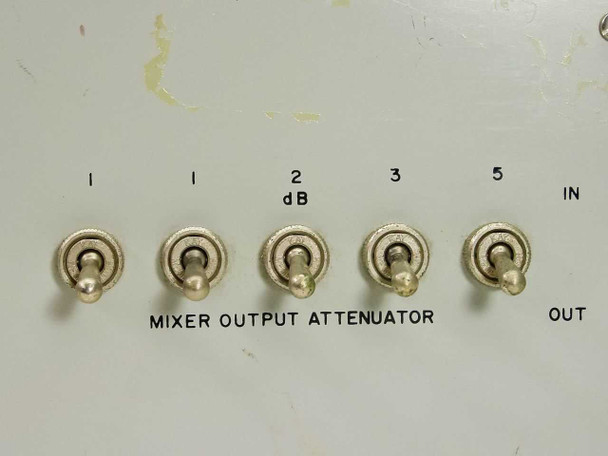

- Stepped output attenuator: 1, 1, 2, 3, 5 dB

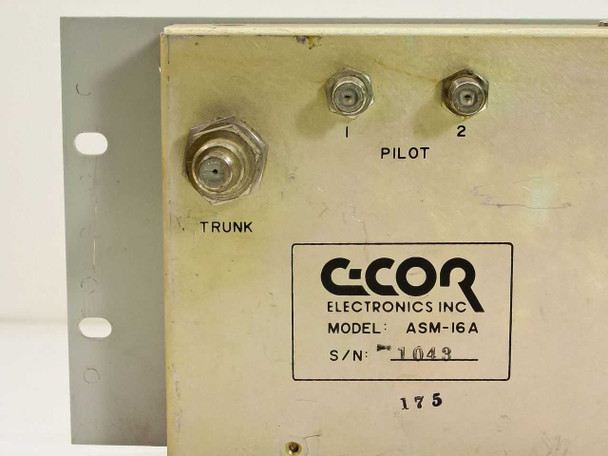

- 2 pilot input ports (rear panel)

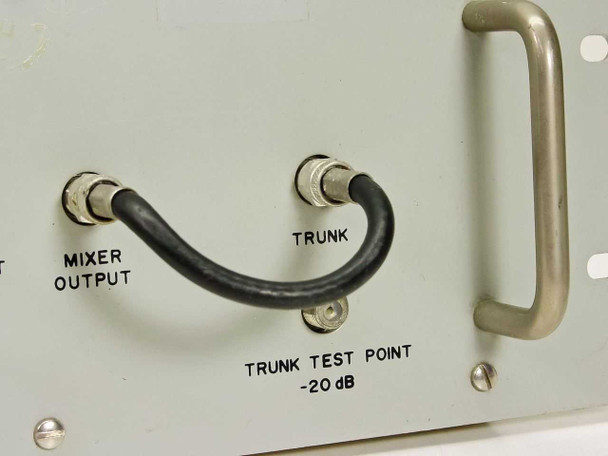

- Trunk test point at −20 dB
- Trunk output and mixer output on rear and front panels respectively
- Unit only; no accessories included
Applications
Used in cable television headend facilities for signal combining and distribution. Typical deployment in CATV systems where multiple antenna or RF sources require consolidation before transmission down the trunk network. Fits standard 19-inch rack installations.
Condition: Used

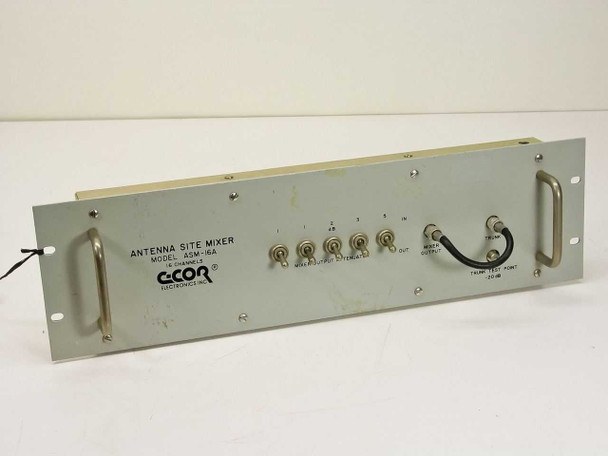

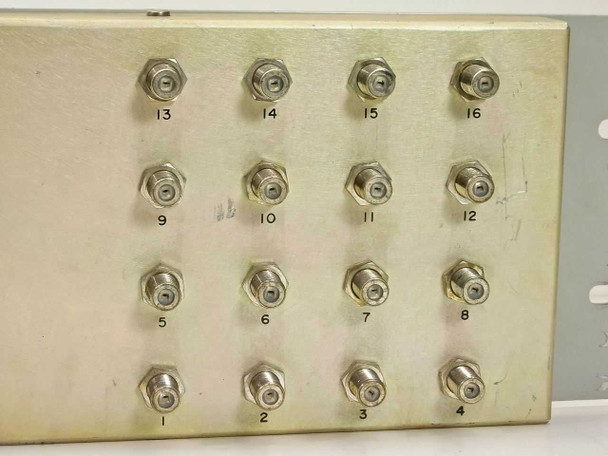

This C-COR Electronics ASM-16A Antenna Site Mixer has been inspected and appears to be in good used condition. The chassis and front panel show general surface wear consistent with rack installation — the paint has some scuffing and discoloration, most notably around the panel face and rack ears. The toggle switches on the mixer output attenuator section are all present. The F-type connectors on both the front panel (Mixer Output, Trunk) and the rear input panel (all 16 channels) and pilot ports appear intact with no obvious damage. The unit was pulled from a working environment. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This C-COR Electronics ASM-16A Antenna Site Mixer has been inspected and appears to be in good used condition. The chassis and front panel show general surface wear consistent with rack installation — the paint has some scuffing and discoloration, most notably around the panel face and rack ears. The toggle switches on the mixer output attenuator section are all present. The F-type connectors on both the front panel (Mixer Output, Trunk) and the rear input panel (all 16 channels) and pilot ports appear intact with no obvious damage. The unit was pulled from a working environment. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
C-COR Electronics |
Model: |
ASM-16A |
MPN: |
ASM-16A |
Type: |
Antenna Site Mixer / CATV RF Signal Combiner |
SKU: |
9035 |
Number of Channels: |
16 |
Form Factor: |
Rack Mount |
Connector Type: |
F-Type (threaded coaxial) |
Output Attenuator: |
Mixer Output Attenuator — stepped: 1, 1, 2, 3, 5 dB |
Trunk Test Point: |
-20 dB |
Pilot Ports: |
2 pilot input ports (labeled 1 and 2) on rear panel |
Trunk Port: |
Trunk output — F-type, rear panel |
Mixer Output Port: |
Mixer Output — F-type, front panel |
Application: |
CATV / Cable TV Headend Signal Combining |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; no additional accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
C-COR Electronics ASM-16A Antenna Site Mixer in good used condition. Shows surface wear and paint scuffing on chassis. All F-type connectors and attenuator switches present. Pulled from a working environment. |
