Description
BTS Broadcast Television Systems BES-300 24x8 Digital Audio Matrix Switch Philips
The BES-300 is a 1U rackmount digital audio matrix switch designed for broadcast and professional audio routing. It provides 24 audio inputs and 8 outputs with D-sub and XLR connectivity for signal distribution in production environments.
Specifications & What's Included
- Model: BES-300 MARS 24x8 Digital Audio Matrix
- Configuration: 24 inputs × 8 outputs
- Form Factor: 1U rackmount
- Interface: XPT BUS, MPK, CONFIG (D-sub); XLR Sync In; Green screw terminal blocks for audio I/O
- Power: 100/120/140V AC 0.40A or 200/220/240V AC 0.20A, 47–63 Hz
- Unit only; no accessories included
Applications
The BES-300 was used in broadcast television production facilities and professional audio routing systems manufactured by BTS and Philips. It integrates with BTS/Philips broadcast production infrastructure for managing multiple audio sources across studio and transmission chains.
Condition: Used

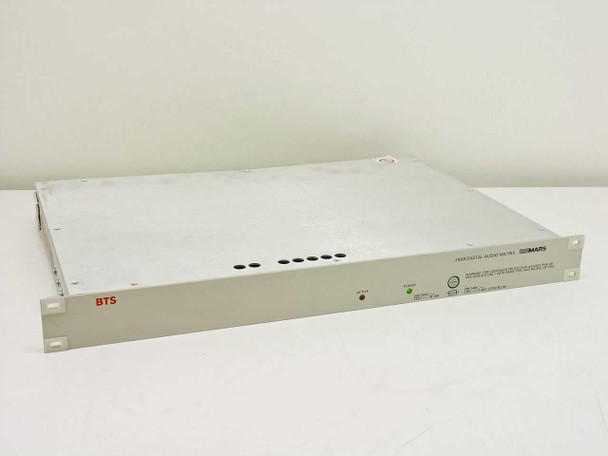

This BTS Broadcast Television Systems BES-300 24x8 Digital Audio Matrix Switch has been inspected and is in good condition. The chassis and front panel are clean with only minor surface wear consistent with normal rack use. The green screw terminal block I/O connectors on the rear appear intact and undamaged, and the D-sub XPT BUS, MPK, and CONFIG ports look to be in good shape. The power indicator LED was visible and lit in photos. No cracks, significant dents, or damage were observed. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This BTS Broadcast Television Systems BES-300 24x8 Digital Audio Matrix Switch has been inspected and is in good condition. The chassis and front panel are clean with only minor surface wear consistent with normal rack use. The green screw terminal block I/O connectors on the rear appear intact and undamaged, and the D-sub XPT BUS, MPK, and CONFIG ports look to be in good shape. The power indicator LED was visible and lit in photos. No cracks, significant dents, or damage were observed. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
BTS Broadcast Television Systems |
Model: |
BES-300 |

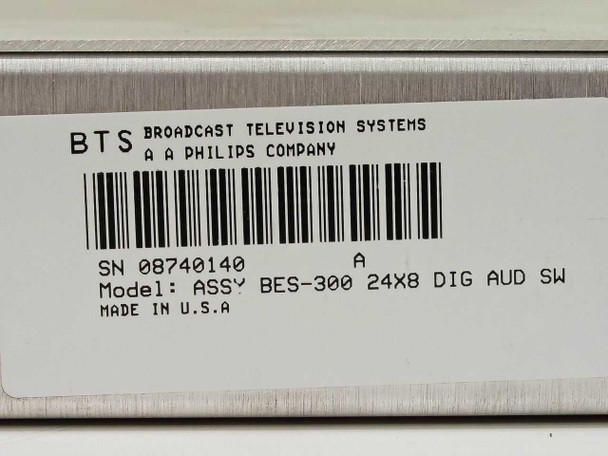

MPN: |
ASSY BES-300 24X8 DIG AUD SW |
Type: |
Digital Audio Matrix Switch |
SKU: |
39632 |
Configuration: |
24x8 (24 inputs, 8 outputs) |
Form Factor: |
1U Rackmount |
Power Requirements: |
100/120/140V 0.40A or 200/220/240V 0.20A, 47-63Hz |
Voltage (100-140V range): |
100/120/140V AC, 0.40A |
Voltage (200-240V range): |
200/220/240V AC, 0.20A |
Frequency: |
47-63 Hz |
Interface / Bus: |
XPT BUS (D-sub), MPK (D-sub), CONFIG (D-sub) |
Sync Input: |
XLR Sync In connector |
Audio I/O Connector Type: |
Green screw terminal blocks |
Country/Region of Manufacture: |
United States |
Manufacturer / Parent Company: |
A Philips Company |
Panel Label: |
MARS 24X8 Digital Audio Matrix |
Condition: |
Used – Inspected, Good Condition |
Seller Notes: |
Unit only; no accessories included. Inspected and in good condition. |
Compatible With: |
BTS / Philips broadcast production systems |
Condition Notes: |
BTS BES-300 24x8 Digital Audio Matrix Switch — inspected and in good condition. Minor surface wear only. Rear terminal blocks and D-sub connectors appear intact. No significant damage observed. |
