The Philips BDS-300A is a 1U rackmount digital video routing switcher from Philips BTS (Broadcast Television Systems), part of the MARS (Modular And Routing System) product line. It provides a 24-input by 8-output routing matrix for digital video signals in a compact single-rack-unit chassis. The unit carries universal AC input capability, allowing it to operate on both 100–140V and 200–240V mains without manual adjustment.

Specifications & What's Included

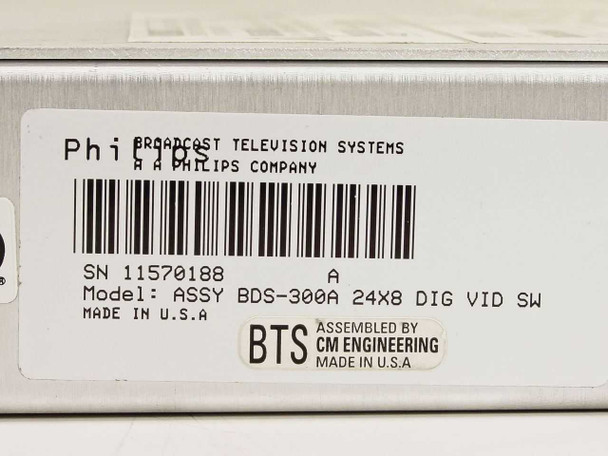

• Model: BDS-300A (Assembly designation: ASSY BDS-300A 24X8 DIG VID SW)
• Series: MARS (Modular And Routing System) — Philips BTS
• Configuration: 24 inputs × 8 outputs
• Form factor: 1U rackmount with integral rack ears
• Input connectors: 24 × BNC (rear panel, numbered 1–23 + REF)
• Output connectors: 8 × BNC (rear panel)
• XPT BUS: 2 × DB15 (yellow-keyed) for crosspoint bus control
• MPK ports: 2 × DB15 (yellow-keyed) for machine panel keyboard control
• CONFIG port: 1 × DB9 for configuration
• DC IN / ALARM port: 1 × DB9
• AC power inlet: IEC C14
• Input voltage: 100/120/140V AC at 0.50A / 200/220/240V AC at 0.25A, 47–63Hz
• Fuse (120V): T0.50A 250V Slow Blow
• Fuse (230V): T0.25A 250V Slow Blow
• Front panel indicators: Active (amber LED), Power (yellow/green LED)
• Manufactured in the USA; assembled by CM Engineering
• Unit only — no additional accessories observed

Applications

The Philips MARS BDS-300A is a broadcast-grade digital video routing switcher designed for use in television production and post-production facilities. MARS (Modular And Routing System) was Philips BTS's routing and signal distribution platform, widely deployed in master control rooms, production switcher support infrastructure, and broadcast stations through the 1990s and into the 2000s. A 24×8 routing switcher like this handles the assignment of multiple video sources — cameras, VTRs, satellite feeds, graphics servers — to a set of destination outputs such as monitors, recording decks, or transmission paths, all under centralized control via the XPT bus and MPK panel interfaces. The universal power supply makes the unit compatible with both North American and international mains standards, a practical feature for touring production rigs or facilities with mixed power infrastructure. Units from the Philips BTS MARS line are still sought by broadcast facilities maintaining legacy routing infrastructure and by integrators building cost-effective routing solutions from surplus broadcast equipment.
