Broadcast Television Systems

Philips BTS RF-3000A PA-3001 Audio Card Chassis 16-Slot Broadcast TV For Parts

(No reviews yet) Write a Review
SKU:
39809
MPN:
ASSY PA-3001A
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
26.00 LBS
Shipping:
Calculated at Checkout
  • Philips BTS RF 3000 PA-3001A audio card chassis front panel view showing RF 3000 model label and BTS branding
  • Philips BTS RF-3000A audio card chassis open with 16 BAA-3000 audio DA cards installed in slots, front access panel lowered
  • Philips BTS PA-3001 chassis power module close-up showing 120V/230V fuse ratings, DC indicator, power switch, and LOCK mechanism

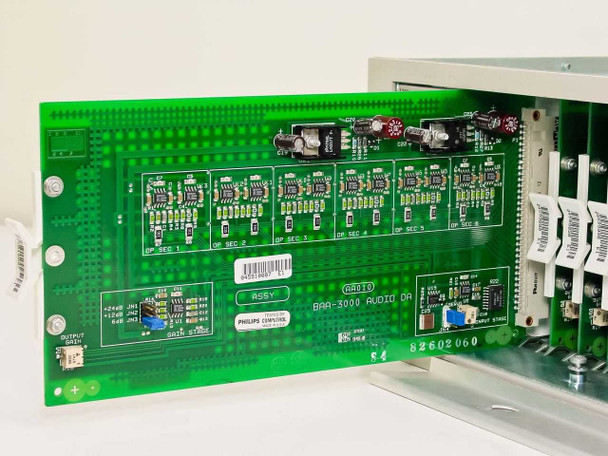

  • BAA-3000 audio DA card PCB top view showing multiple op-amp sections labeled OP SEC 1 through OP SEC 4 and Philips Computrol markings

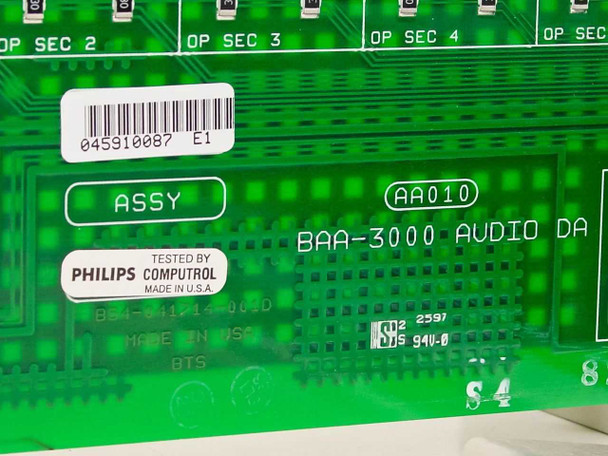

  • BAA-3000 audio DA card PCB label close-up showing ASSY AA010, BAA-3000 AUDIO DA designation, Philips Computrol, BTS markings, and part number B54-041714-001D
  • BAA-3000 audio DA card label showing part number F7-017600-010, serial S4673, and date code 07-06-98

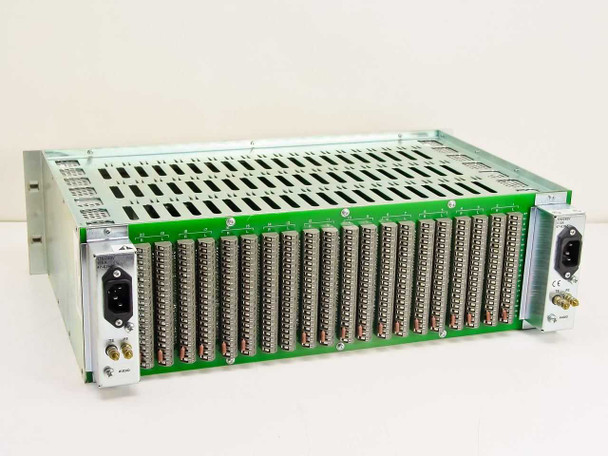

  • Philips BTS RF-3000A chassis rear view showing 16 populated card slots with card edge connectors and IEC power inlet

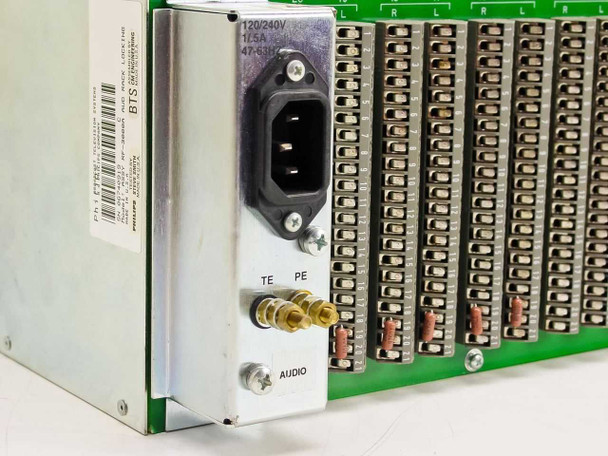

  • Philips BTS RF-3000A chassis rear power inlet detail showing 120/240V 1.5A 47-63Hz rating plate, IEC C14 connector, TE/PE ground posts, and AUDIO label
  • Philips BTS bottom label showing Broadcast Television Systems — A Philips Company, Model ASSY RF-3000A AUD RACK LOCKING, SN 06740919, Made in USA, assembled by CM Engineering
$100.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Philips BTS RF-3000A PA-3001 Audio Card Chassis 16-Slot Broadcast TV For Parts

16-slot rackmount audio card chassis designed for broadcast television audio distribution within the Philips BTS RF-3000 system. Accommodates up to 16 BAA-3000 Audio DA (distribution amplifier) cards for signal routing and distribution in professional broadcast environments.

Specifications & What's Included

  • 16 BAA-3000 Audio DA cards included (P/N B54-041714-001D)
  • Power: 120/240V AC, 1.5A, 47–63 Hz
  • Fuse: 120V 1.5A / 230V 1.80A (250V Slow Blow)
  • Connector: IEC C14 inlet
  • Form Factor: 16-slot rackmount
  • Manufactured: United States by CM Engineering / Philips Computrol

Applications

This chassis type was used in broadcast television facilities for professional audio signal distribution and amplification. The Philips BTS RF-3000 system provided modular audio routing capabilities for television production and transmission. Compatible exclusively with Philips BTS RF-3000 broadcast systems. Typically installed in broadcast control rooms and transmission facilities requiring multiple independent audio distribution channels.

Condition: For Parts or Not Working
This Philips BTS RF-3000A PA-3001A broadcast audio card chassis is being sold AS-IS for parts or repair. The unit powers on (DC indicator and power switch are present and visible in photos), but its overall functionality has not been verified, and it is not guaranteed to be operational. It comes populated with 16 BAA-3000 Audio DA cards (P/N B54-041714-001D), all of which are present in the slots and appear physically intact with no obvious damage to the PCBs. The chassis shows normal wear consistent with broadcast facility use — minor surface marks on the enclosure. The factory Philips Computrol test label is visible on the individual cards. This unit is sold strictly as-is; buyers should plan to evaluate the cards and chassis independently. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Philips BTS
Model:
RF-3000A
MPN:
PA-3001A
Secondary Model:
ASSY RF-3000A AUD RACK LOCKING
Type:
Broadcast Audio Card Chassis / Rack
SKU:
39809
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes 16 BAA-3000 Audio DA cards, P/N B54-041714-001D
Included Cards:
16x BAA-3000 Audio DA — P/N B54-041714-001D
Card Assembly:
BAA-3000 AUDIO DA, ASSY AA010
Card Part Number:
B54-041714-001D
Card Reference Number:
F7-017600-010, S4673, dated 07-06-98
Number of Card Slots:
16
Power Requirements:
120/240V AC, 1.5A, 47–63 Hz
Fuse Rating:
120V: 1.5A 250V Slow Blow; 230V: 1.80A 250V
Power Connector:
IEC C14 inlet
Form Factor:
Rackmount
Application:
Broadcast Television Audio Distribution
Compatible System:
Philips BTS RF 3000 Broadcast System
Country/Region of Manufacture:
United States
Manufacturer:
Broadcast Television Systems (BTS) — A Philips Company
Assembled By:
CM Engineering
Tested By:
Philips Computrol (factory test — see label)
Condition Notes:
Philips BTS RF-3000A PA-3001A audio card chassis sold AS-IS for parts or repair. Includes 16 BAA-3000 Audio DA cards (B54-041714-001D). Not guaranteed functional. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

BTS RF-3000A locking audio rack chassis front view, closed lid, BTS logo visible on front panel BTS RF-3000A rack opened showing 19 BAA-3000 analog audio mono distribution amp cards installed with PA-3001 power supply module
Add to Cart
Quick view

BTS Philips RF-3000A Locking Audio Rack 19x BAA-3000 Mono Distribution Amp Cards

BTS

$150.00
Was: $300.00
BTS Philips RF-3000A Locking Audio Rack 19x BAA-3000 Mono Distribution Amp Cards Broadcast-grade audio distribution chassis housing 19 BAA-3000 mono distribution amplifier cards. The RF-3000A is a...
39808
SKU:
39808
Availability:
Usually ships within 1-2 business days.
Weight:
34.00 LBS
Brand:
BTS Broadcast Television Systems (Philips)
Model:
RF-3000A
MPN:
B54-041714-001D
Secondary Model:
BAA-3000
Type:
Locking Rackmount Audio Distribution Chassis
SKU:
39808
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes 19 BAA-3000 Analog Audio Mono Distribution Amp cards and PA-3001 power supply module
Country/Region of Manufacture:
United States
Form Factor:
Rackmount
Power Requirements:
117V / 220V AC, 1.5A SB
Number of Card Slots:
19+
Number of Cards Included:
19
Card Type:
BAA-3000 Analog Audio Mono Distribution Amplifier
Card Part Number:
B54-041714-001D
Power Supply Module:
PA-3001 Audio Power Supply
Signal Type:
Analog Audio (Mono)
Application:
Broadcast Television Audio Distribution
Chassis Assembly:
ASSY RF-3000A AUD RACK LOCKING
Compatible With:
BTS / Philips broadcast audio distribution systems
Lock Mechanism:
Yes — keyed front-panel lock
AC Connector:
IEC C14 inlet (115V sticker visible on rear)
Condition Notes:
BTS Philips RF-3000A Locking Audio Rack inspected and in good condition. All 19 BAA-3000 mono distribution amp cards installed. PA-3001 power supply present. DC LED shown lit in photos. Light wear from prior broadcast use.

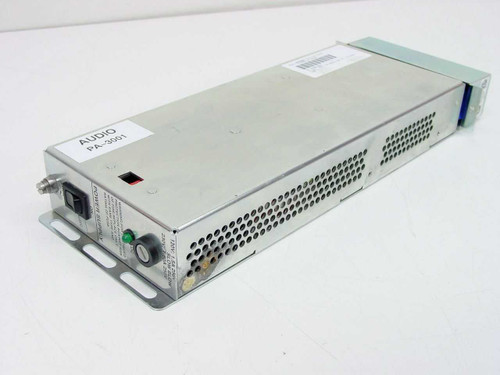

Philips BTS PA-3001A Audio Power Supply module – front-left angled view showing AUDIO PA-3001 label, green LED indicator, and vented top panel Philips BTS PA-3001A Audio Power Supply – rear-left angled view showing IEC C14 AC inlet, TE and PE binding post terminals, and CE marking
