Dison
-
Dison Technology AMC167 Rev A 8-Bit ISA Port Controller Card 40-Pin Internal
Dison
$65.00Was: $125.00Dison Technology AMC167 Rev A 8-Bit ISA Port Controller Card 40-Pin Internal 37-PinThe Dison Technology AMC167 Rev A is an 8-bit ISA expansion card designed as a port controller for interfacing a...42953- SKU:
- 42953
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Dison Technology
- Model:
- AMC167
- MPN:
- AMC167 Rev A
- Secondary Model:
- AMC168 (CCA designation on PCB)
- Type:
- 8-Bit ISA Port Controller Card
- SKU:
- 42953
- Bus Interface:
- 8-Bit ISA
- Internal Connector:
- 40-Pin Header
- External Connector:
- 37-Pin D-Sub
- PCB Revision:
- Rev A
- PCB Designation:
- PWB AMC167 REV A
- Compatible With:
- Dison Clippard Multi-Port Manifold (likely)
- Form Factor:
- Half-Length ISA Card
- Copyright Year:
- 1995
- Manufacturer:
- Dison Technology
- Condition:
- Used – Inspected and Pulled from Working Environment
- Seller Notes:
- Card only; no cables or brackets included. Likely for Clippard Multi-Port Manifold.
- Country/Region of Manufacture:
- United States (Dison Technology)
- Condition Notes:
- Dison AMC167 Rev A 8-bit ISA port controller card. Inspected, appears in good condition. PCB is clean, connectors intact, no visible damage. Normal light handling wear. Card only — no cables included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$65.00Was: $125.00 -
Dison AMC169 REV A Vacuum Control Board PCB AMC170 110VAC 220VAC 1995
Dison
$65.00Was: $125.00Dison AMC169 REV A Vacuum Control Board PCB AMC170 110VAC 220VAC 1995The Dison AMC169 is a printed circuit board (PCB) designed for vacuum system control, designated PWB AMC169 REV A with an...41479- SKU:
- 41479
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Dison Technology
- Model:
- AMC169
- MPN:
- AMC169
- Secondary Model:
- AMC170
- Type:
- Vacuum Control Board / PCB
- SKU:
- 41479
- Hardware Revision:
- REV A
- Board Designation:
- PWB AMC169 REV A
- CCA Part Number:
- CCA AMC170
- Voltage Input:
- 110VAC / 220VAC
- DC Rail:
- +18V
- Terminal Functions:
- +18V, GND, 220VAC, 110VAC, OVERTEMP
- PCB Silk Screen Code:
- CAR 2V0 96-23
- Copyright Year:
- 1995
- Form Factor:
- PCB / Card Module
- Application / Use Case:
- Vacuum system control, industrial process automation
- Condition:
- Used – Inspected and Pulled from Working Environment
- Seller Notes:
- Board only; no enclosure or external cables included.
- Country/Region of Manufacture:
- Unknown
- Condition Notes:
- Dison AMC169 REV A Vacuum Control Board. Inspected and in good condition. PCB shows normal light handling wear; no visible damage, burnt components, or broken terminals. Board only.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$65.00Was: $125.00 -

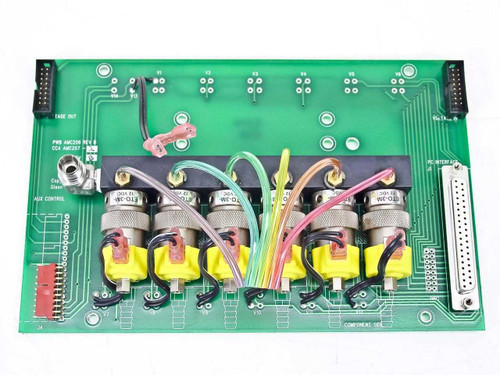

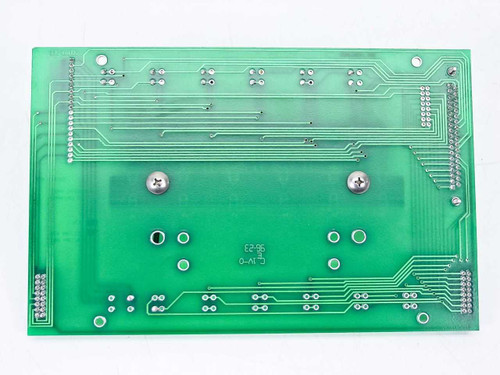

Dison AMC206 AMC207 6-Port Pneumatic Manifold Controller Board Clippard ETO-3M
Dison
$95.00Was: $200.00Dison AMC206 AMC207 6-Port Pneumatic Manifold Controller Board Clippard ETO-3MThe Dison AMC206 is a 6-port pneumatic manifold controller board (CCA AMC207 / PWB AMC206 Rev B) manufactured by Dison...41470- SKU:
- 41470
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Dison Technology
- Model:
- AMC206
- MPN:
- AMC206
- Secondary Model:
- CCA AMC207
- PCB / PWB Number:
- PWB AMC206 Rev B
- CCA Assembly Number:
- CCA AMC207
- Type:
- Pneumatic Manifold Controller Board
- Number of Ports:
- 6
- Valve Model:
- Clippard ETO-3M
- Valve Voltage:
- 12 VDC
- Valve Type:
- Solenoid Valve
- Form Factor:
- PCB / Card Assembly
- Interface / Connectors:
- DB-37 (PC Interface), 14-pin IDC headers, BNC, AUX Control
- SKU:
- 41470
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Includes 6 Clippard ETO-3M 12VDC solenoid valve manifolds mounted on board
- Application:
- Pneumatic valve control, industrial automation, fluid/gas flow switching
- Condition Notes:
- Dison AMC206 6-Port Pneumatic Manifold Controller Board inspected and in good condition. All 6 Clippard ETO-3M 12VDC solenoid valves present, wiring intact. PCB shows normal wear. Connectors undamaged.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$95.00Was: $200.00 -

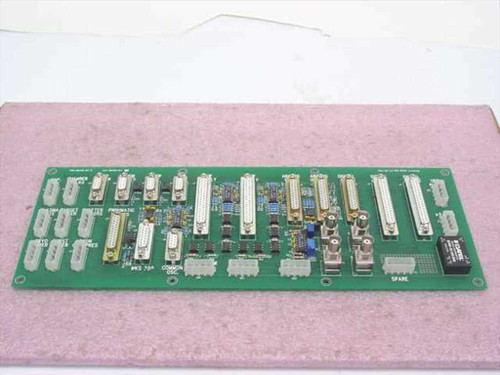

Dison Technology AMC068 AMC069 Vacuum Controller Card PCB Rev B 1994
Dison
$150.00Was: $300.00Dison Technology AMC068 AMC069 Vacuum Controller Card PCB Rev B 1994 The Dison Technology AMC068 / AMC069 is a large-format vacuum process controller card (PWB AMC068 Rev B / CCA AMC069) designed to...31866- SKU:
- 31866
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Dison Technology
- Model:
- AMC068
- Secondary Model:
- AMC069
- MPN:
- AMC068 / AMC069
- PWB Number:
- PWB AMC068 REV B
- CCA Number:
- CCA AMC069
- Revision:
- Rev B
- Type:
- Vacuum Process Controller Card / PCB
- Application:
- PVD Sputtering / Vacuum Deposition System Control
- Year / Copyright Date:
- 1994
- Form Factor:
- PCB / Card Module
- Connector Types:
- Multiple DB-9, DB-15, DB-25 (D-sub); BNC; header connectors
- Interfaces / Channels:
- Plasma Ignite, Target Water, Shutter Sensors, Pneumatic Valves, Cryo Power, Cryo Heater, Helium Valve, Chamber Intlks, Subst Water, Argon Overpres, Argon Flow, MKS 250, Common Osc., Pump T/C, Cham. T/C, Subst T/C, Target T/C
- Power Interfaces:
- 10KW Supply x2, 1KW Supply, +24V Input, UPS Alarm
- Digital I/O:
- Digital Input, Digital Out #1, Digital Out #2
- Analog I/O:
- Analog Input, Analog Output
- Compatible Equipment:
- Dison Technology vacuum deposition / PVD sputtering systems
- SKU:
- 31866
- Condition:
- Used – Inspected
- Seller Notes:
- Card only; no external cables or mounting hardware included.
- Country/Region of Manufacture:
- Unknown
- Condition Notes:
- Used Dison Technology AMC068/AMC069 Vacuum Controller Card Rev B. Inspected — PCB clean, connectors intact, no visible damage. Normal handling wear from prior use. Not powered or tested at our facility. Contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00
