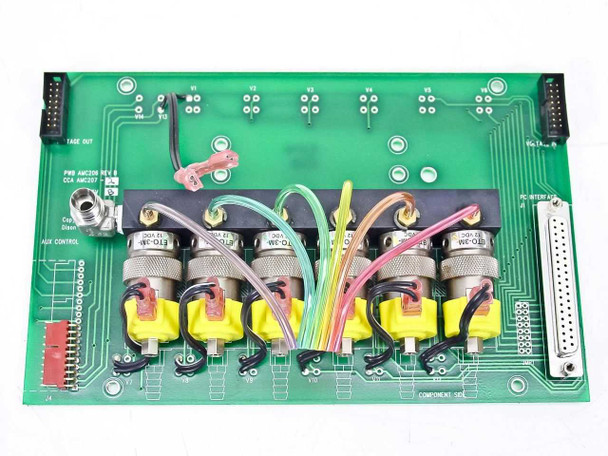

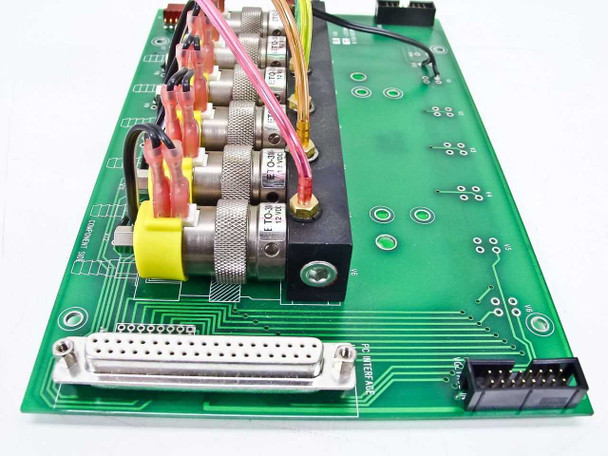

The Dison AMC206 is a 6-port pneumatic manifold controller board (CCA AMC207 / PWB AMC206 Rev B) manufactured by Dison Technologies. The board integrates six Clippard ETO-3M 12VDC solenoid valves mounted on a manifold block, providing electrically controlled switching of pneumatic lines — gas or fluid flow — from a single PC-interface-driven assembly.

Specifications & What's Included

• Manufacturer: Dison Technologies
• Board Model / PWB: AMC206 Rev B
• Assembly Number / CCA: AMC207
• Number of Ports: 6
• Solenoid Valves: 6× Clippard ETO-3M
• Valve Operating Voltage: 12 VDC
• PC Interface Connector: DB-37 (right edge of board)
• Additional Headers: 14-pin IDC header (labeled STAGE OUT), secondary 14-pin IDC header, AUX CONTROL connector
• BNC connector on board edge
• Color-coded wiring harness connecting solenoid valves to PCB
• Form Factor: PCB / card assembly (bare board, not enclosed)

Applications

Pneumatic manifold controller boards of this type are used in automated systems that require precise, electrically triggered switching of pneumatic or gas flow across multiple channels. Common applications include semiconductor process equipment, laboratory automation, fluid dispensing systems, and industrial process control — anywhere multiple pneumatic lines need to be opened or closed under computer or PLC control. The Clippard ETO-3M is a well-established miniature solenoid valve used extensively in instrumentation and laboratory automation applications where compact, repeatable pneumatic switching is required. The DB-37 PC interface connector suggests this board was designed for direct integration with an instrument or automation controller using a standard parallel interface. The CCA AMC207 designation indicates this is a complete circuit card assembly within a larger Dison-designed system.
