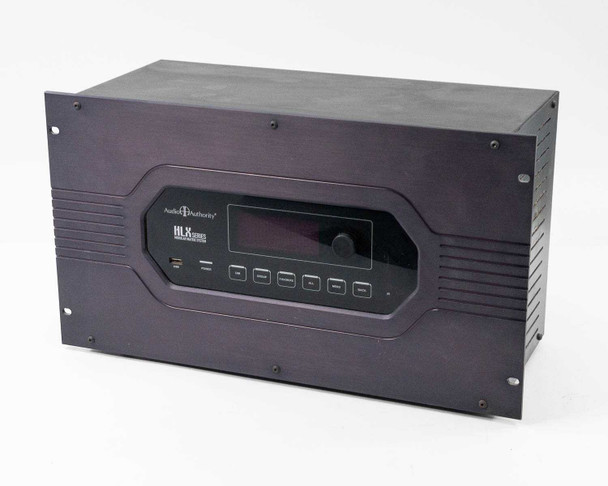

Audio Authority HLX Series 2006 2174 2278 HD Video Audio Matrix Switcher 4x16
Modular matrix switcher for routing 4 HD video and audio sources to 16 outputs. Supports component, composite, and HD video up to 1080p, along with analog and digital audio formats. Breakaway architecture allows independent audio/video source selection.
Specifications & What's Included
- 6U rack-mount chassis with Model 2006 card cage
- 2x Model 2174 analog audio input cards; 2x Model 2278 analog audio zone cards
- 4 inputs, 16 outputs
- Video: Component, Composite, HD up to 1080p
- Audio: Analog, Digital (coax/optical with cross-conversion)
- Control via Ethernet, RS-232, IR, front panel
- 100-125V, 50-60Hz, 0.3A; Firmware v2.2.0
Applications
The HLX Series matrix switcher was used in professional AV installations, broadcast facilities, and control rooms requiring flexible video and audio routing. The modular design accommodates expansion cards for scaling input/output configurations. Typical deployments include corporate presentation systems, government facilities, and institutional media distribution networks where independent video and audio switching is required.

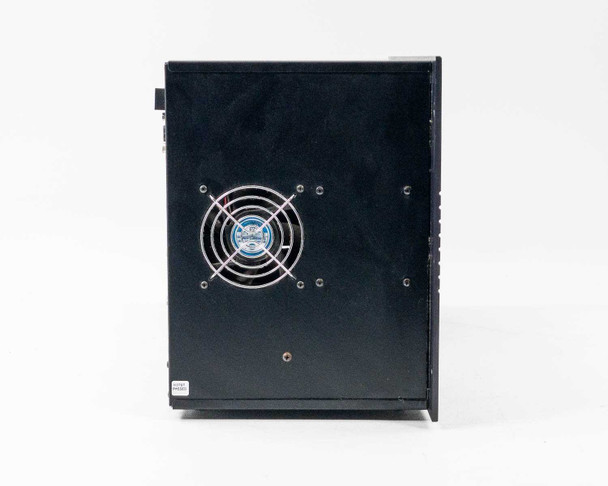

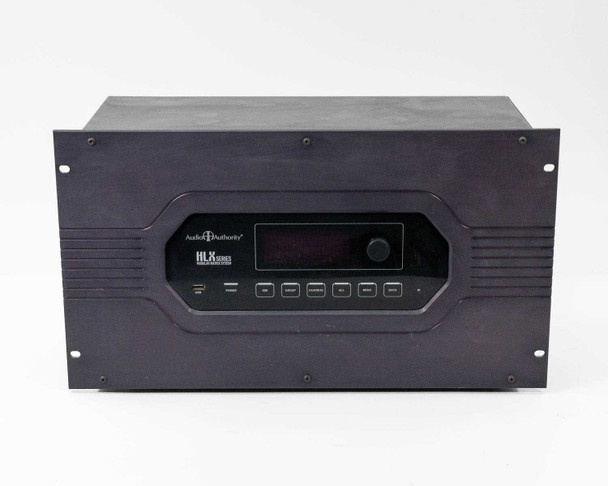

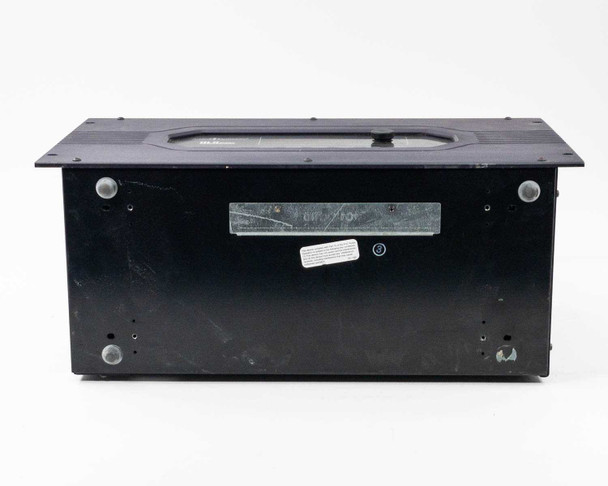

This Audio Authority HLX Series HD Video/Audio Matrix Switcher (Models 2006, 2174, and 2278) has been tested and confirmed to be in working order. All input and output channels were tested at our facility. The unit shows normal wear consistent with prior installation use — the chassis has minor scuffs and surface dust on the ventilation panels, and the front panel acrylic cover shows light scratching. All cards are installed and present: one Model 2006 primary card cage, two Model 2174 analog audio input cards, and two Model 2278 analog audio zone cards. The front panel display, controls, and rotary encoder are functional. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Audio Authority |
Model: |
HLX Series |
MPN: |
2006 / 2174 / 2278 |
Secondary Model: |
Model 2006 Card Cage, Model 2174, Model 2278 |
Type: |
Modular HD Video/Audio Matrix Switcher |
SKU: |
53139 |
Seller Notes: |
Includes Model 2006 card cage (x1), Model 2174 analog audio input cards (x2), Model 2278 analog audio zone cards (x2) |
Country/Region of Manufacture: |
United States |
Form Factor: |
Rack Mount |
Rack Units: |
6U |
Power Requirements: |
100-125V, 50-60Hz, 0.3A |
Number of Inputs: |
4 |
Number of Outputs: |
16 |
Video Signal Format: |
Component, Composite, HD up to 1080p |
Audio Format: |
Analog Audio, Digital Audio (Coax and Optical) |

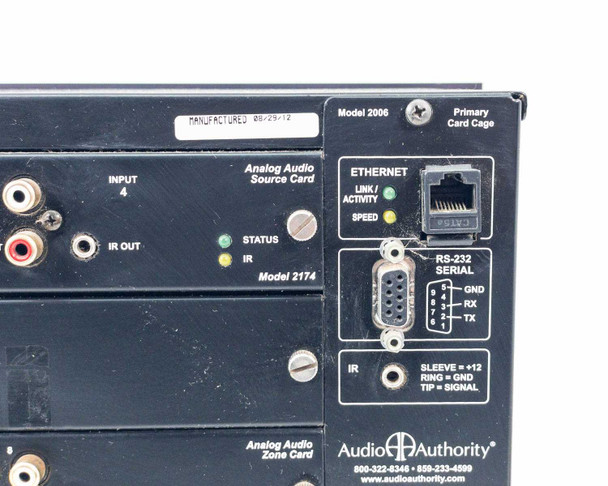

Control Interface: |
Ethernet, RS-232 Serial, Front Panel IR, Rear Panel IR |
Connector Types: |
RCA, RJ-45 Ethernet, DB-9 RS-232, IR jack |
Firmware Version: |
HLX Version 2.2.0 |
Switching Type: |
Breakaway (independent audio/video source selection) |
Digital Audio Conversion: |
Cross-converts digital coax and optical simultaneously |

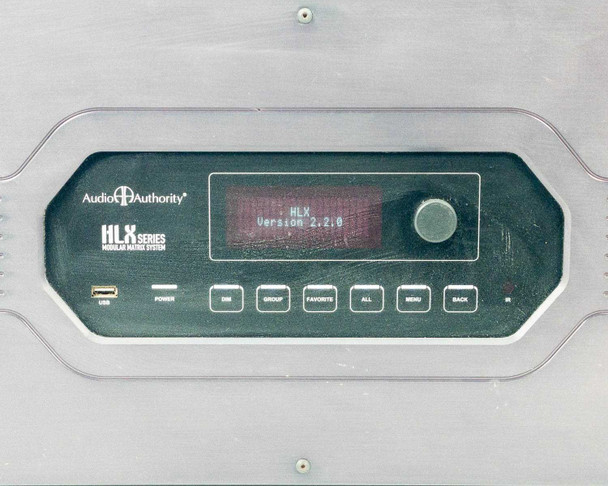

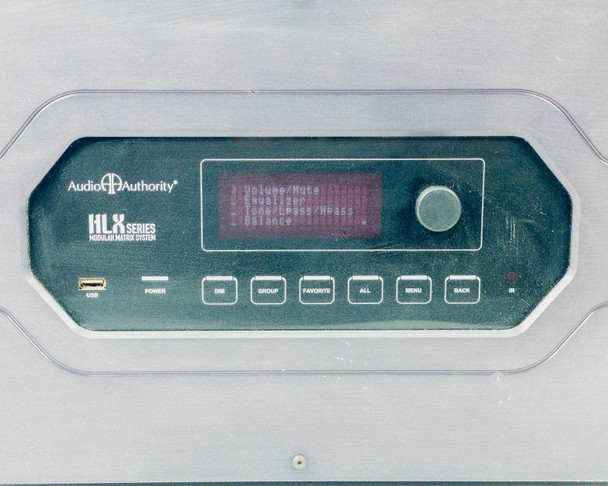

Front Panel Controls: |
POWER, DIM, GROUP, FAVORITE, ALL, MENU, BACK, rotary encoder, USB port |
Certifications: |
ETL Listed, UL STD 60065, CAN/CSA C22.2 No. 60065, FC |
Manufacture Date: |
08/29/12 (per rear label) |
Compatible With: |
Audio Authority HLX Series expansion cards and card cages |
Condition Notes: |
Audio Authority HLX Series 2006/2174/2278 matrix switcher tested and confirmed working. All input and output channels tested at our facility. Minor scuffs and surface dust on chassis. All cards present and installed. |
