Audio Authority HLX Series 2006 2174 2278 HD Video Audio Matrix Switcher 4x16

Audio Authority

SKU:

53139

Availability:

Usually ships within 1-2 business days.

Weight:

27.00 LBS

Brand:

Audio Authority

Model:

HLX Series

MPN:

2006 / 2174 / 2278

Secondary Model:

Model 2006 Card Cage, Model 2174, Model 2278

Type:

Modular HD Video/Audio Matrix Switcher

SKU:

53139

Seller Notes:

Includes Model 2006 card cage (x1), Model 2174 analog audio input cards (x2), Model 2278 analog audio zone cards (x2)

Country/Region of Manufacture:

United States

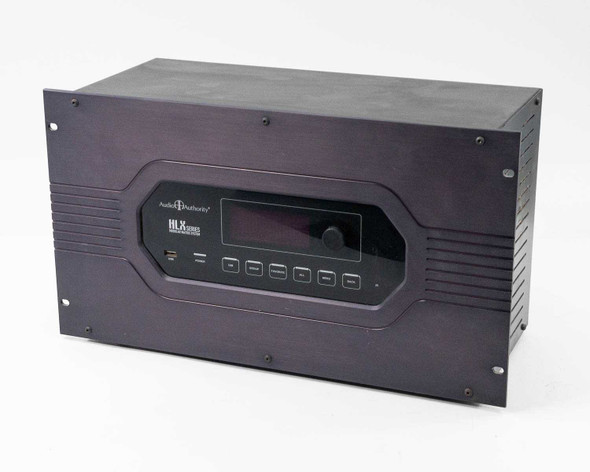

Form Factor:

Rack Mount

Rack Units:

6U

Power Requirements:

100-125V, 50-60Hz, 0.3A

Number of Inputs:

4

Number of Outputs:

16

Video Signal Format:

Component, Composite, HD up to 1080p

Audio Format:

Analog Audio, Digital Audio (Coax and Optical)

Control Interface:

Ethernet, RS-232 Serial, Front Panel IR, Rear Panel IR

Connector Types:

RCA, RJ-45 Ethernet, DB-9 RS-232, IR jack

Firmware Version:

HLX Version 2.2.0

Switching Type:

Breakaway (independent audio/video source selection)

Digital Audio Conversion:

Cross-converts digital coax and optical simultaneously

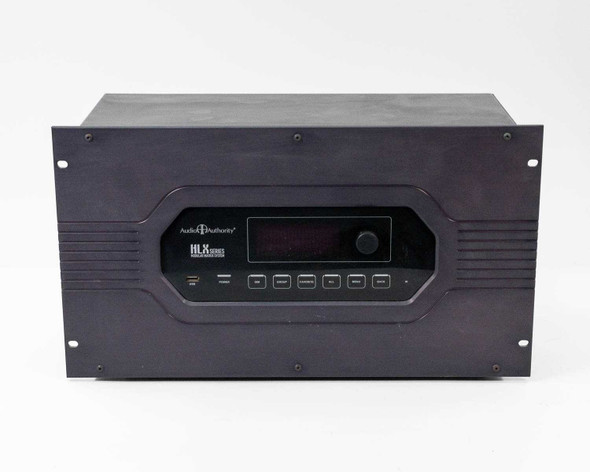

Front Panel Controls:

POWER, DIM, GROUP, FAVORITE, ALL, MENU, BACK, rotary encoder, USB port

Certifications:

ETL Listed, UL STD 60065, CAN/CSA C22.2 No. 60065, FC

Manufacture Date:

08/29/12 (per rear label)

Compatible With:

Audio Authority HLX Series expansion cards and card cages

Condition Notes:

Audio Authority HLX Series 2006/2174/2278 matrix switcher tested and confirmed working. All input and output channels tested at our facility. Minor scuffs and surface dust on chassis. All cards present and installed.
