ISIS Group RTS-201 2x1 Protection Switcher Dual Channel Video Audio Rackmount
The ISIS Group RTS-201 is a professional dual-channel 2x1 protection switcher designed for broadcast and production environments where signal continuity is critical. It monitors two independent signal paths (A and B) and switches the output to the backup source — either automatically or via manual operator control — ensuring uninterrupted video and audio delivery.
Specifications & What's Included
- Manufacturer: ISIS Group
- Model: RTS-201
- Type: Dual-Channel 2x1 Protection Switcher
- Form Factor: 1U Rackmount
- Switching Configuration: 2 inputs × 1 output per channel
- Video Inputs: BNC — Channel A and Channel B
- Video Monitor Outputs: BNC — Channel A monitor and Channel B monitor
- Video Output: BNC (switched program output)

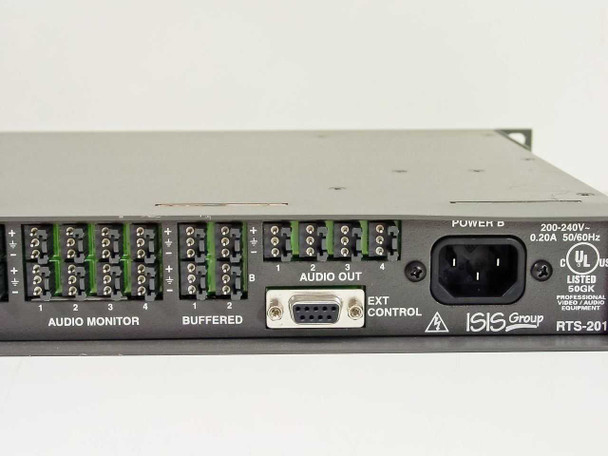

- Audio Inputs: Balanced terminal strip — up to 4 inputs per channel (A and B)
- Audio Output: Balanced terminal strip — Audio Out
- Audio Monitor: Buffered balanced audio monitor outputs

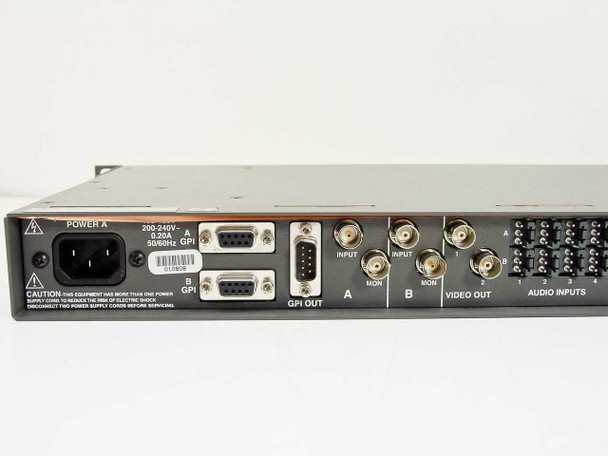

- GPI Control: Dual DB9 GPI ports (A and B inputs) + DB9 GPI Out
- External Control: DB9 EXT CONTROL port
- Operation Modes: Auto and Manual — front-panel selectable

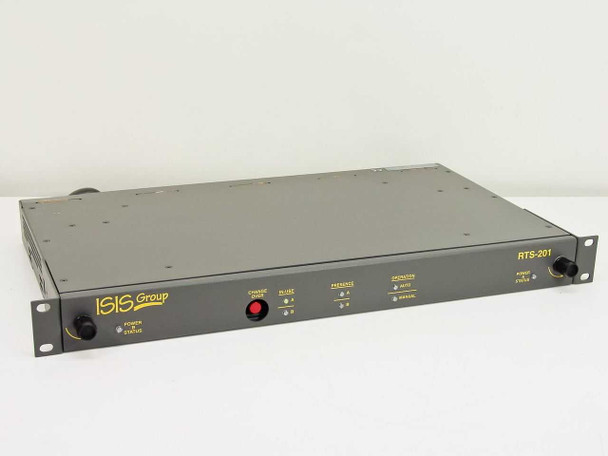

- Front Panel Controls: Change Over pushbutton (red), Operation mode switch

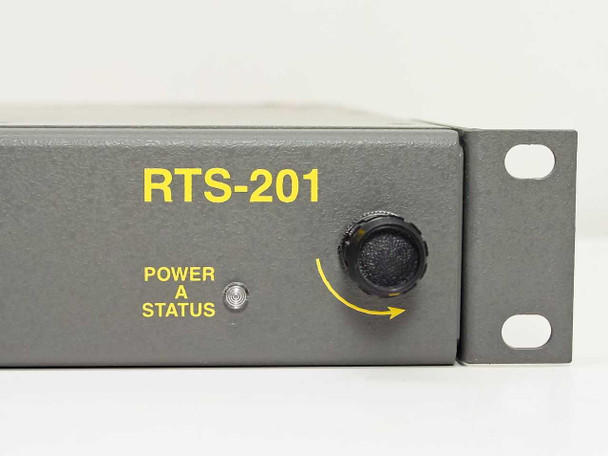

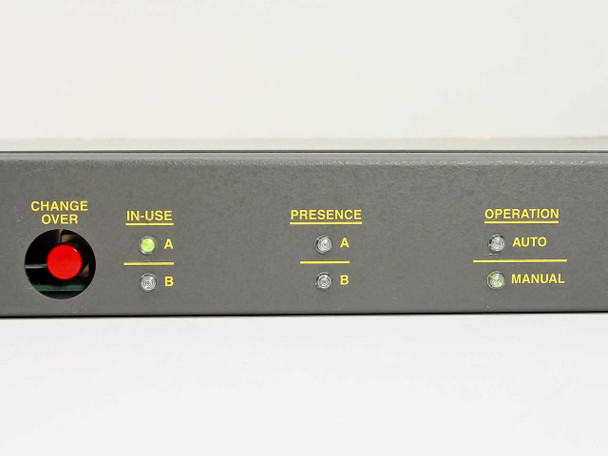

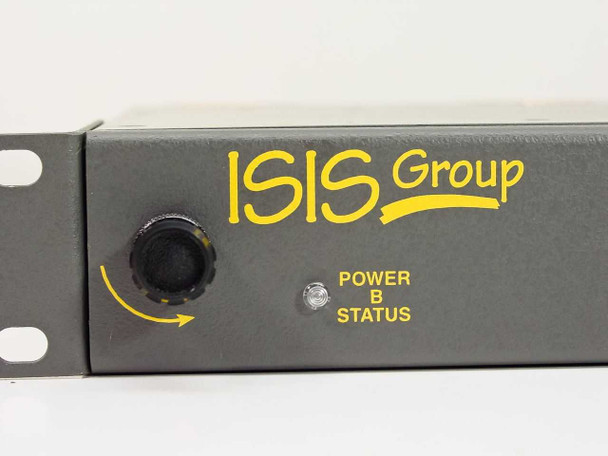

- Front Panel Indicators: In-Use A/B LEDs, Presence A/B LEDs, Power A/B Status LEDs, Auto/Manual indicator

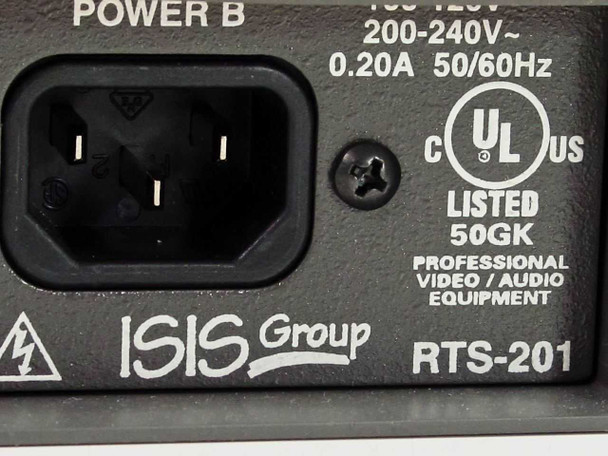

- Power: Dual redundant IEC C13 inlets (Power A and Power B)
- Power Requirements: 200–240V~, 0.20A, 50/60Hz
- Certifications: UL Listed 50GK — Professional Video/Audio Equipment
- Unit only — no cables included
Applications
Protection switchers like the RTS-201 are a standard component in professional broadcast facilities, master control rooms, production trucks, and satellite uplink sites where continuous on-air signal flow is required. The 2x1 architecture connects a primary source and a backup source to a single downstream destination — a routing switcher, transmitter, encoder, or distribution amplifier — and automatically switches to the backup path when the primary signal fails or falls outside tolerance. The GPI (General Purpose Interface) ports allow the RTS-201 to be integrated into larger automation and monitoring systems, enabling remote switchover commands and status feedback. Manual override via the front-panel Change Over button gives operators direct control when automatic switching is not desired. Dual redundant power supplies ensure the switcher itself remains operational even if one power feed is lost, a common requirement in 24/7 broadcast environments. The RTS-201 handles both composite/component video (via BNC) and balanced audio simultaneously, making it suitable for complete signal-path protection in standard-definition broadcast and production workflows.

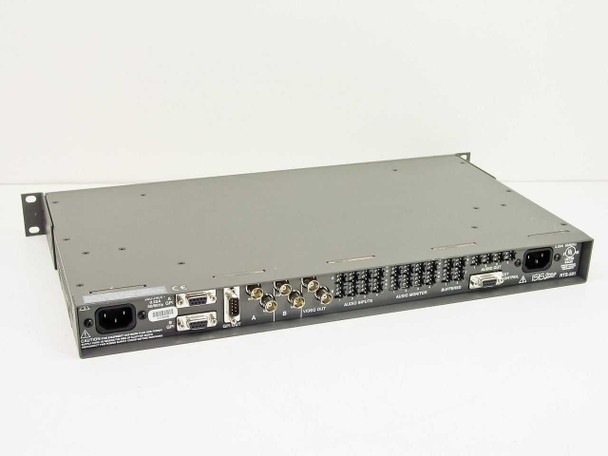

This ISIS Group RTS-201 Dual Channel 2x1 Protection Switcher has been inspected and appears to be in good used condition. It was pulled from a working broadcast environment where it was in active service. The chassis and front panel are clean with minor surface wear typical of rack-mounted broadcast equipment. Both IEC power inlets, BNC video connectors, DB9 control ports, and audio terminal strips appear intact and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
ISIS Group |
Model: |
RTS-201 |
MPN: |
RTS-201 |
Type: |
2x1 Protection Switcher |
SKU: |
39628 |
Form Factor: |
1U Rack Mount |
Number of Channels: |
2 (Dual Channel) |
Switching Configuration: |
2x1 (2 inputs, 1 output) |
Video Output: |
BNC (Video Out) |
Video Input: |
BNC — Channel A and Channel B inputs |
Video Monitor Output: |
BNC — Channel A and Channel B monitor |
Audio Input: |
Balanced — up to 4 audio inputs per channel |
Audio Output: |
Balanced — Audio Out and Audio Monitor outputs |
Audio Monitor: |
Buffered Audio Monitor outputs |
Control Interface: |
GPI (General Purpose Interface) — DB9 |
GPI Output: |
DB9 GPI Out connector |
External Control: |
DB9 EXT CONTROL port |
Operation Mode: |
Auto / Manual (front panel selectable) |
Power Requirements: |
200-240V~, 0.20A, 50/60Hz |
Number of Power Supplies: |
2 (Dual redundant — Power A and Power B) |
Power Connector: |
IEC C13 (x2) |
Front Panel Indicators: |
In-Use A/B, Presence A/B, Operation Auto/Manual |
Front Panel Controls: |
Change Over pushbutton (red), Power A/B status LEDs |
Certifications: |
UL Listed 50GK — Professional Video/Audio Equipment |
Application: |
Professional broadcast video/audio signal protection |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only — no cables included. Dual IEC power inlets present. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
ISIS Group RTS-201 2x1 Protection Switcher. Inspected and in good used condition. Pulled from a working broadcast environment. Chassis and connectors appear intact with minor surface wear. Please view photos and contact us with questions. |
