ARTEL

Artel R3050-840 Video Fiber Optic Receiver Module Card Satcom RF R3050

(No reviews yet) Write a Review
SKU:
36031
MPN:
R3050
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • Artel R3050-840 fiber optic video receiver plug-in card — front panel angled view showing RX Overload, RX Input, Video On LEDs and Video Level Adjust control

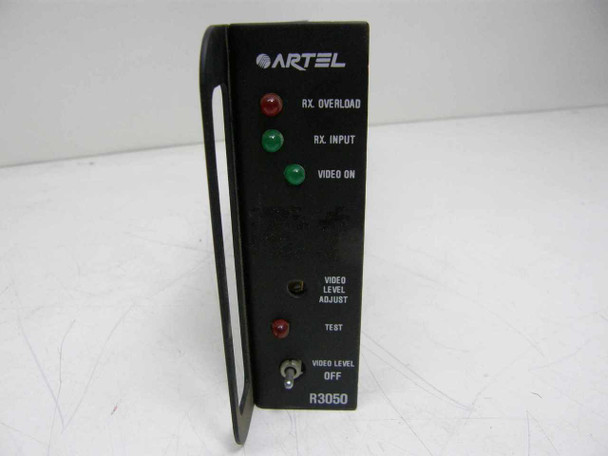

  • Artel R3050-840 module front panel close-up showing RX Overload, RX Input, Video On indicator LEDs, Video Level Adjust pot, Test LED, and Video Level Off switch

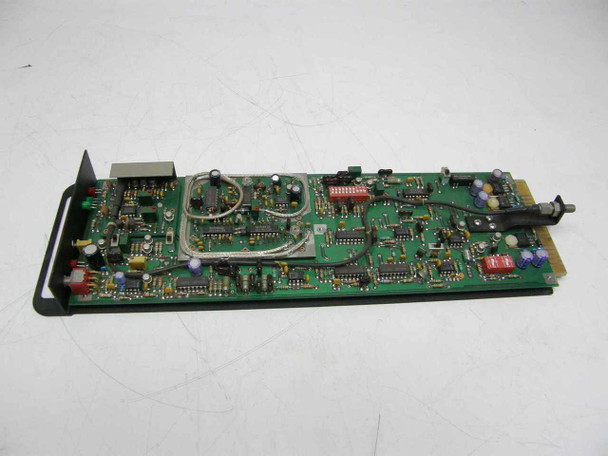

  • Artel R3050-840 PCB top-down view showing full green circuit board with through-hole and SMD components, DIP switches, and gold-edge card connector

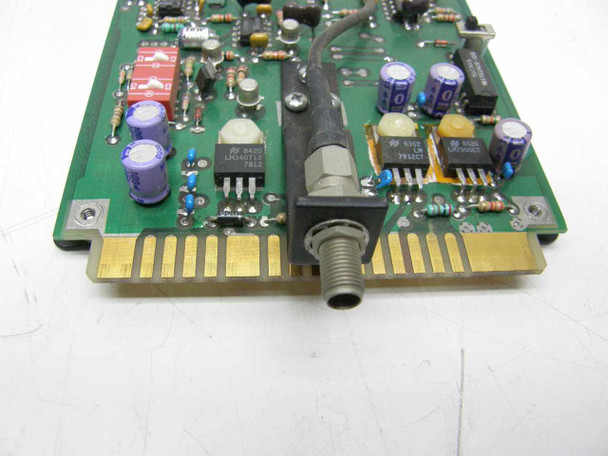

  • Artel R3050-840 PCB close-up of edge connector end showing gold card-edge fingers, SMA-style coaxial connector, and component detail including National Semiconductor LM349 IC
  • Artel R3050-840 rear/back face showing label: TX# 1213 and RX# 1213 are a factory optimized pair

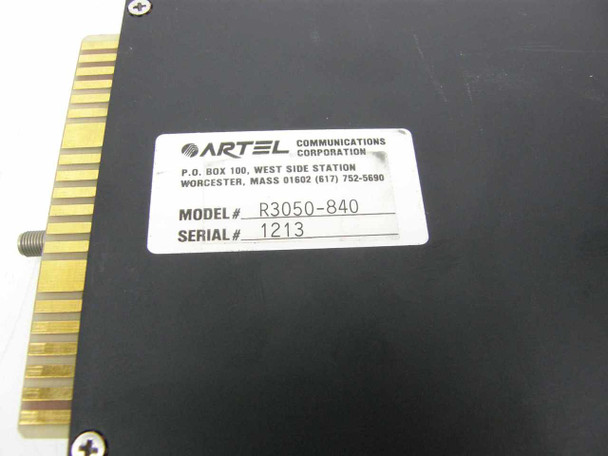

  • Artel R3050-840 label close-up showing Artel Communications Corporation, Worcester MA, Model R3050-840, Serial 1213

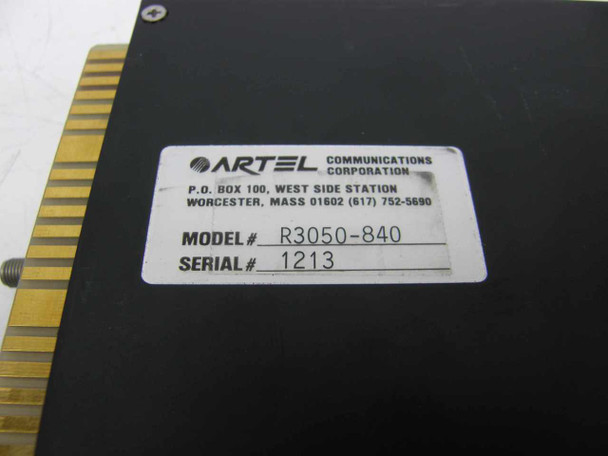

  • Artel R3050-840 second label view confirming Model R3050-840 and Serial 1213 on Artel Communications Corporation card
$90.00
Was: $175.00
Current Stock: 2

Sold Out

Description

Artel R3050-840 Video Fiber Optic Receiver Module Card Satcom RF R3050

Fiber optic video receiver plug-in card module designed for use in Artel communications systems. This card receives video signals transmitted over fiber optic lines and includes front panel controls and indicator LEDs for monitoring signal status.

Specifications & What's Included

  • Model: R3050-840 (MPN: R3050-840)
  • Type: Fiber Optic Video Receiver Module Card
  • Form Factor: Gold-edge card connector plug-in
  • Connectors: SMA-style RF/fiber connector
  • Front Panel: RX Overload, RX Input, Video On LEDs; Video Level Adjust potentiometer; Video Level Off switch; Test LED
  • Manufacturer: Artel Communications Corporation, USA

Applications

The R3050 series is used in satellite communications (satcom) and professional video transmission systems requiring fiber optic signal transport. These modules handle video signal reception in multi-channel RF distribution systems. TX# 1213 and RX# 1213 units are factory-optimized pairs for matched transmission and reception. Compatible with Artel fiber optic video transmission systems and related satcom platforms.

Condition: Used
This Artel R3050-840 fiber optic video receiver plug-in card has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use. The front panel, LEDs, and controls show normal wear consistent with prior installation. The PCB and gold edge connector appear intact with no obvious damage. Note from the label: TX# 1213 and RX# 1213 are designated as a factory optimized pair — this is the RX (receiver) card. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Artel Communications Corporation
Model:
R3050-840
MPN:
R3050-840
Secondary Model:
R3050
SKU:
36031
Type:
Fiber Optic Video Receiver Plug-In Card Module
Form Factor:
Plug-In Card / Module
Condition:
Used – Pulled from Working Environment
Seller Notes:
TX# 1213 and RX# 1213 are a factory optimized pair
Front Panel Indicators:
RX Overload, RX Input, Video On LEDs; Test LED
Front Panel Controls:
Video Level Adjust pot; Video Level Off switch
Connector Type:
Gold-edge card connector; SMA-style RF/fiber connector
Country/Region of Manufacture:
United States
Compatible With:
Artel fiber optic video transmission systems
Application:
Fiber optic video signal reception and transmission
Condition Notes:
Artel R3050-840 fiber optic video receiver card. Inspected, good condition. Pulled from a working environment. TX# 1213 / RX# 1213 factory optimized pair. Normal wear. Please contact us with questions.
View AllClose

Related Products

Related Products

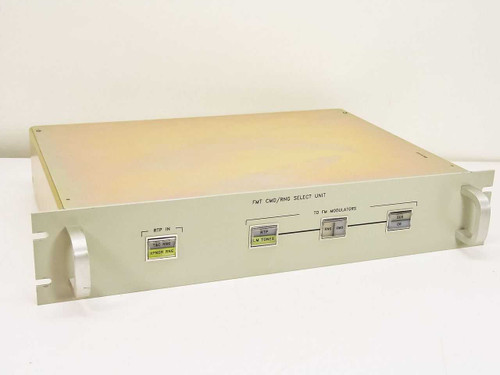

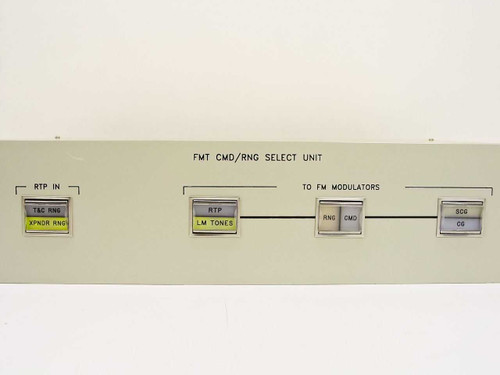

FMT CMD/RNG Select Unit front panel three-quarter view showing rackmount chassis and front-panel push-button selector switches FMT CMD/RNG Select Unit front panel close-up showing RTP IN, LM TONES, RNG/CMD, and SCG/CG labeled selector buttons
