Americom AST3100 L-Band Indoor Monitor Control Unit M-1001-0001 Satcom
The Americom Government Services AST3100 is an L-Band Indoor Monitor and Control Unit (IDU) designed for professional satellite communications (SATCOM) ground station applications. It serves as the central management and control point for a satellite terminal system, providing monitoring, command, and interface functions between the indoor equipment and the outdoor unit (ODU). This is part number M-1001-0001 and mounts in a standard 19" rack in a 2U form factor.
Specifications & What's Included
- Make: Americom Government Services
- Model: AST3100 Indoor Unit
- Part Number: M-1001-0001
- Form Factor: 19" Rackmount, 2U
- Dimensions: 24.5" x 19" x 3.5"
- Frequency Band: L-Band (Rx L-Band In/Out via BNC)
- 10 MHz Reference: In/Out BNC connectors on rear panel

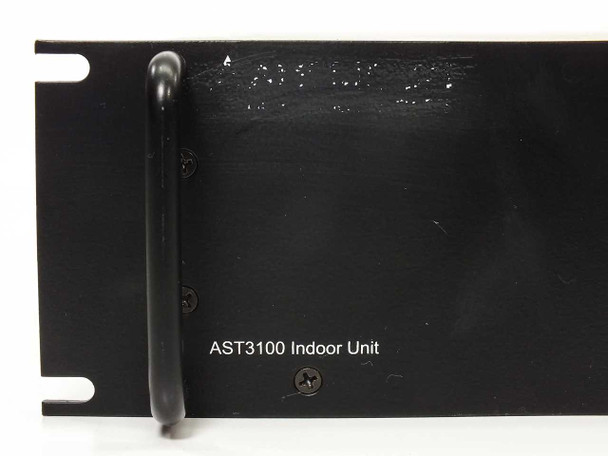

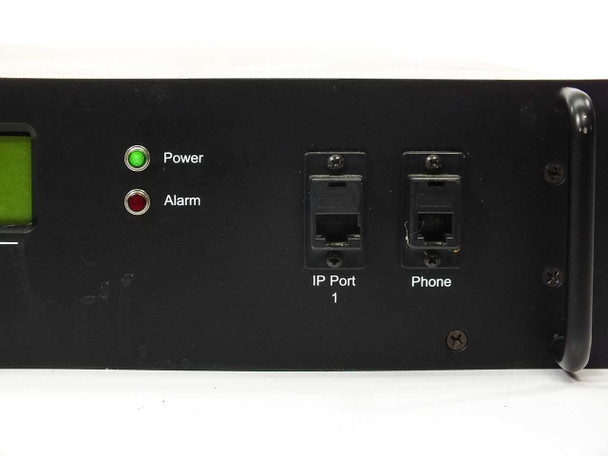

- Front Panel: LCD alphanumeric display (shows model and status), Power (green) and Alarm (red) LEDs, 3 push-button controls
- Front Panel Ports: IP Port 1 (RJ45), Phone (RJ11)

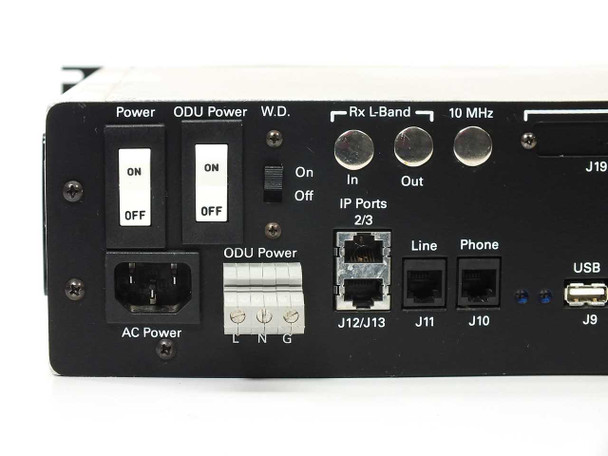

- Rear Panel — Power: IEC AC power inlet, Power ON/OFF switch, ODU Power ON/OFF switch, ODU Power terminal block (L/N/G), Watchdog (W.D.) switch
- Rear Panel — IP Ports 2/3: dual RJ45 (J12/J13)
- Rear Panel — Line (J11), Phone (J10): RJ-type jacks
- Rear Panel — USB: USB Type-A port (J9)
- Rear Panel — RS-485: dual RJ45 ports (J7/J8), dual RJ45 ports (J5/J6)
- Rear Panel — RS-485 Test: DB15 connector (J17)
- Rear Panel — RS-232: DB9 connectors J14, J15, J16
- Rear Panel — Digital I/O: DB25 connectors J1, J2, J3, J4
- Rear Panel — Expansion Digital I/O: header connectors J18, J19
- Rear Panel — IFL Terminal Block: 8-position screw terminal (TB1)

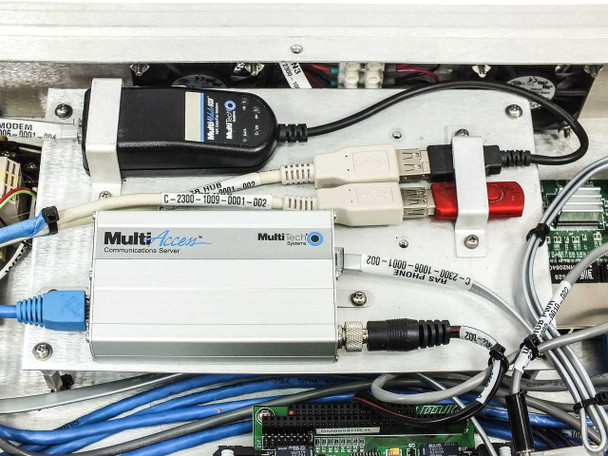

- Internal: Multi-Tech MultiAccess Communications Server module with USB hub

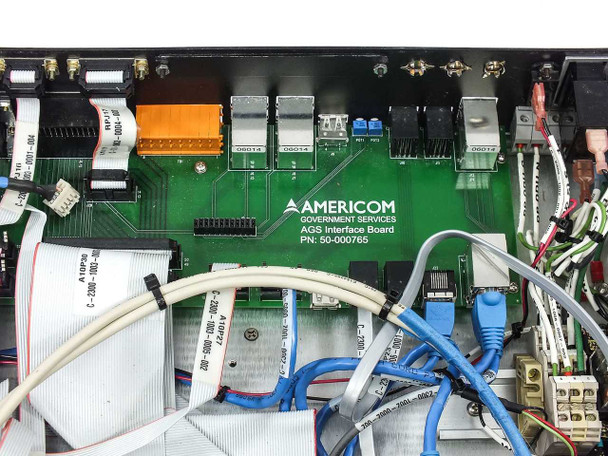

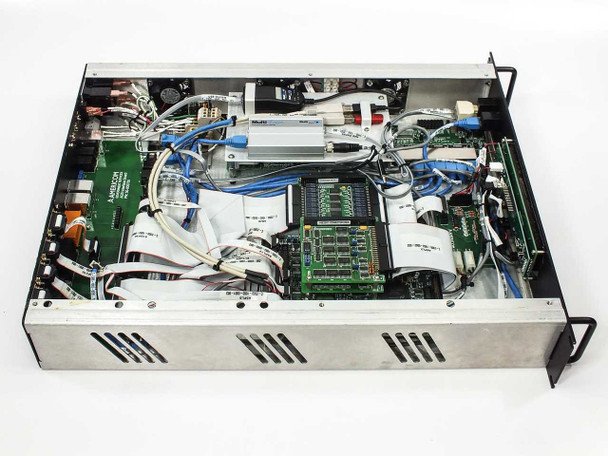

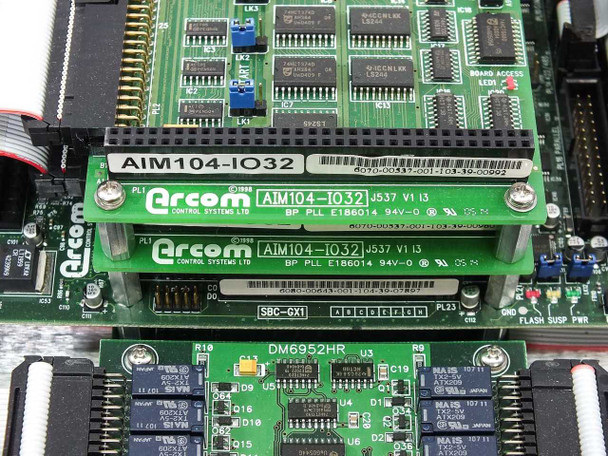

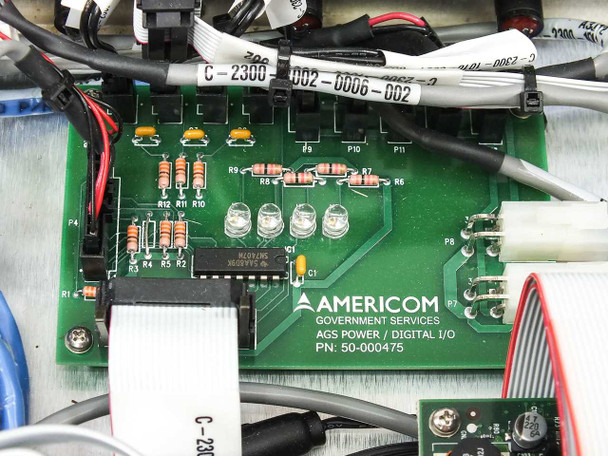

- Internal: Multiple Americom-labeled PCBs, wiring harnesses, internal power supply
- Unit only — no external cables or accessories included
Applications
The AST3100 is an indoor monitor and control unit used in government and commercial SATCOM ground terminal systems. In a typical VSAT or dedicated satellite terminal architecture, the IDU handles the L-Band IF signal path between the modem/demodulator and the block upconverter (BUC) or low-noise block (LNB) on the ODU, while the monitor and control subsystem provides centralized command, status monitoring, alarm management, and remote interface capability. The multiple RS-232 and RS-485 serial ports support connections to modems, frequency converters, and other rack equipment, while the Ethernet IP ports allow network-based remote management. The integrated Multi-Tech MultiAccess Communications Server inside the chassis enables IP-to-serial bridging, a common requirement in government and military satcom installations. Units of this type were used in fixed and transportable satellite terminals in government, defense, and commercial telecom environments where centralized control and monitoring of the RF chain was required.
This Americom Government Services AST3100 L-Band Indoor Monitor and Control Unit has been inspected and is in good used condition. It was pulled from a working satcom environment where it was in active use. The chassis shows typical surface wear and some scuffing on the top cover, consistent with rack-deployed equipment. The front panel LCD, LEDs, and controls appear intact. The rear panel connectors — including RS-232, RS-485, Digital I/O, BNC L-Band, and IP ports — all look clean and undamaged. The interior is fully populated with its PCBs and the internal Multi-Tech MultiAccess Communications Server module. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Americom Government Services |
Model: |
AST3100 |
MPN: |
M-1001-0001 |
Type: |
L-Band Indoor Monitor and Control Unit (IDU) |
SKU: |
49857 |
Form Factor: |
19" Rackmount, 2U |
Application: |
Satellite Communications (SATCOM) Monitor & Control |
Frequency Band: |
L-Band |
Interface Types: |
RS-232, RS-485, USB, Ethernet (IP), IFL |
Rear Connectors: |
RS-232 (J14-J16), RS-485 (J5-J8, J17), Digital I/O (J1-J4) |
Rear Connectors 2: |
Expansion Digital I/O (J18, J19), IFL terminal block (TB1) |
Front Panel Ports: |
IP Port 1 (RJ45), Phone (RJ11) |
Rear Panel Ports: |
IP Ports 2/3 (RJ45 x2), Line (J11), Phone (J10), USB (J9) |
RF Interfaces: |
Rx L-Band In/Out (BNC), 10 MHz reference In/Out (BNC) |
Power Input: |
AC Power (IEC inlet); separate ODU Power switch and connector |
Display: |
LCD alphanumeric front panel display |
Indicators: |
Power (green LED), Alarm (red LED) |
Internal Components: |
Multi-Tech MultiAccess Communications Server; Americom PCBs |
Dimensions: |
24.5" x 19" x 3.5" |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; pulled from working satcom environment. No accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Americom AST3100 L-Band Indoor Monitor Control Unit, used, pulled from working satcom environment. Inspected, good condition. Chassis shows normal rack wear. All connectors and internal PCBs appear intact. |
