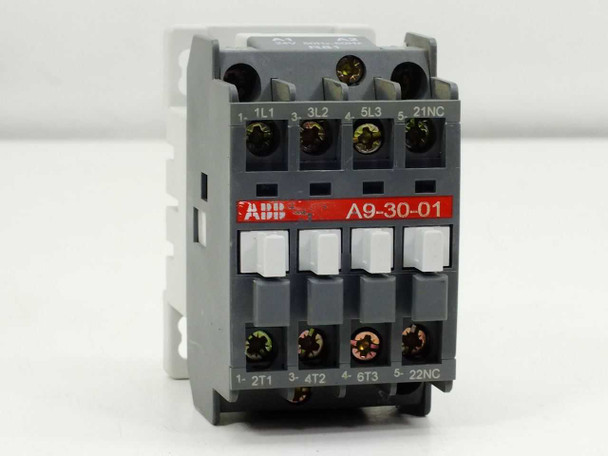

ABB A9-30-01 Contactor Relay 4-Pole 24V Coil 220-240V 50/60Hz IEC947 DIN Rail

ABB A9 RV5/50 Contactor 24-50V Coil 3-Pole 25A IEC947-4-1 CON 10

ABB

SKU:

46235

Availability:

Usually ships within 1-2 business days.

Weight:

1.00 LBS

Brand:

ABB

Model:

A9

MPN:

RV5/50

Type:

IEC Contactor / Motor Starter

SKU:

46235

Coil Voltage:

24-50V AC

Coil Frequency:

50Hz-60Hz

Coil Reference:

RV5/50, Code R81

Continuous Current (Ith):

26A

Rated Operational Current (IeAC-1):

25A

Number of Main Poles:

3

Auxiliary Contact:

1 NC (21NC / 22NC)

Insulation Voltage (Ui):

1000V

kW Rating at 230V AC-3:

2.2 kW

kW Rating at 400V AC-3:

4 kW

kW Rating at 500V AC-3:

5.5 kW

kW Rating at 690V AC-3:

5.5 kW

3-Phase HP at 200V:

2 HP

3-Phase HP at 240V:

3 HP

3-Phase HP at 480V:

5 HP

3-Phase HP at 600V:

7.5 HP

1-Phase HP at 120V:

1/2 HP

UL Max Voltage:

600V AC

UL Max Fuse (Time Delay):

35A

Standards:

IEC947-4-1, EN60947-4-1

UL Listing:

UL Listed 247C, IND.CONT.EG

CE Certified:

Yes

Compatible With:

N, A9 to A110 and AE45 to AE110

Terminal Connections:

1L1, 3L2, 5L3, 21NC (input); 2T1, 4T2, 6T3, 22NC (output)

Wire Range:

AWG 10-18 CU STR 74°C

Torque:

9 lb-in (1 Nm)

Country/Region of Manufacture:

France

Condition:

Used – Inspected

Seller Notes:

Unit only; no additional accessories included.

Condition Notes:

ABB A9 RV5/50 contactor inspected and in good used condition. Normal wear on housing; terminals and coil assembly appear intact. Please view photos and contact us with questions.

California Prop 65 Warning:

WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov

Allen-Bradley 100-C09D10 IEC Contactor 9A 24VDC Coil 3-Pole AC-3 690V Series A

SKU:

49031

Availability:

Usually ships within 1–2 business days.

Weight:

2.00 LBS

Brand:

Allen-Bradley

Model:

100-C09D10

MPN:

100-C09D10

Type:

IEC Motor Contactor

SKU:

49031

Series:

Series A

Coil Voltage:

24V DC

Number of Poles:

3

Current Rating (AC-3):

9A

Current Rating (AC-1):

32A at 690V AC

Current Rating (AC-12):

20A

Max Voltage (AC-3):

690V

Utilization Category:

AC-3

Impulse Withstand Voltage (Uimp):

8kV

Power Ratings (AC-3 kW):

3kW@230/240V, 4kW@400-690V

Standards:

IEC 60947-4-1/-5-1, EN 60947-4-1/-5-1

Certifications:

UL Listed 728B, CE, CCC

Interface:

Integrated PLC interface

Coil Technology:

Low power pick-up and hold-in

Auxiliary Contact:

1 NO (13-14)

Form Factor:

DIN Rail Mount

Country/Region of Manufacture:

Switzerland

Condition:

Used – Inspected and in Good Condition

Seller Notes:

Unit only, no additional accessories included.

Condition Notes:

Allen-Bradley 100-C09D10 IEC contactor has been inspected and is in good condition. Housing, terminals, and DIN rail clip are intact. Shows minor wear from prior use.

California Prop 65 Warning:

WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
