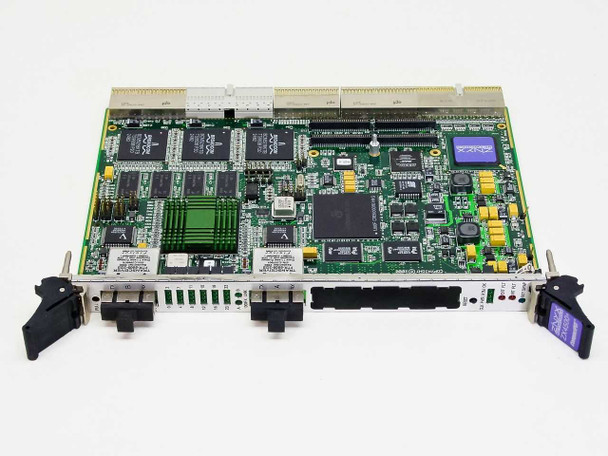

Znyx Networks ZX4500 Carrier Class Ethernet Switch 6U cPCI 24-Port 100Mbps 2GbE
The ZX4500 is a managed Ethernet switch module designed for CompactPCI systems. It provides 24 ports of 10/100 Mbps Ethernet connectivity plus two 1000FX fiber gigabit uplink ports, with an embedded Motorola PowerPC processor for switching and management functions.
Specifications & What's Included
- 24x 10/100 Mbps Ethernet ports + 2x 1000FX Gigabit Ethernet (fiber, LC connectors)
- Form Factor: 6U CompactPCI (cPCI) module with J1-J5 backplane connections
- Processor: Embedded Motorola 8240 PowerPC
- Managed switch with RS-232 serial interface via PMC/PPMC slot
- Hot swap capable with front panel status LEDs
- Module only; no accessories included
Applications
The ZX4500 was used in carrier-grade and telecom equipment requiring distributed switching within CompactPCI-based systems. It supported network aggregation and inter-chassis connectivity in telecommunications, industrial control, and embedded networking platforms that utilized the PICMG 2.x CompactPCI standard. These modules were deployed in systems requiring managed Layer 2 switching with redundant uplink capacity.

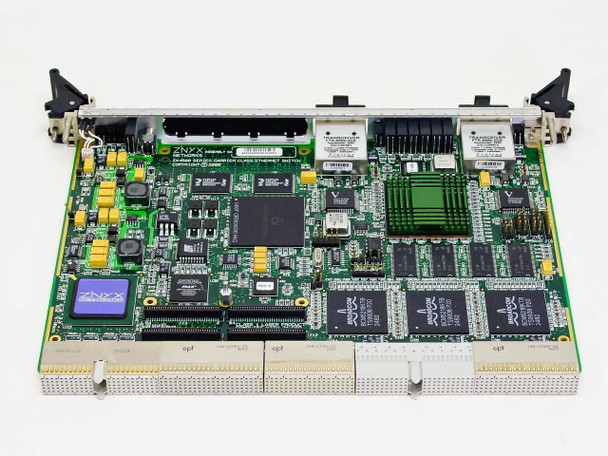

This Znyx Networks ZX4500 Carrier Class Ethernet Switch Module has been inspected and is in good used condition. It was pulled from a working cPCI system prior to removal. The board and front panel show normal wear consistent with rack-mounted service use. The front panel LEDs, fiber LC uplink connectors, and cPCI edge connectors all appear intact and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Znyx Networks |
Model: |
ZX4500 |
MPN: |
ZX4500 |
Type: |
Carrier Class Ethernet Switch Module |
SKU: |
24201 |
Form Factor: |
6U CompactPCI (cPCI) Module |
Number of Ports: |
24x 10/100 Ethernet + 2x Gigabit Ethernet |
Port Speed: |
10/100 Mbps (24 ports); 1000 Mbps / 1 GbE (2 ports) |
Gigabit Uplink Ports: |
2x 1000FX Gigabit Ethernet (fiber, LC connectors) |
Bus Interface: |
CompactPCI (cPCI) — J1, J2, J3, J4, J5 connections |
Processor: |
Embedded Motorola 8240 PowerPC (PPC) |
Expansion: |
PMC/PPMC slot with RS-232 Serial Port |
Serial Interface: |
RS-232 (via PMC/PPMC) |
Gigabit Interface Type: |
1000FX — fiber optic, LC duplex connectors |
Front Panel Indicators: |
CLK, PWR, RTM, OK, EXT FLT, INT FLT, HOT SWAP LEDs; RESET |
Hot Swap: |
Yes — Hot Swap supported (front panel indicator) |
Standards: |
CompactPCI / cPCI (PICMG 2.x) |
Management Type: |
Managed |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Module only. Pulled from a working cPCI system. No accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Znyx Networks ZX4500 cPCI Ethernet Switch Module inspected and in good used condition. Pulled from a working cPCI system. Board and connectors appear intact with normal wear. Please contact us with any questions. |
